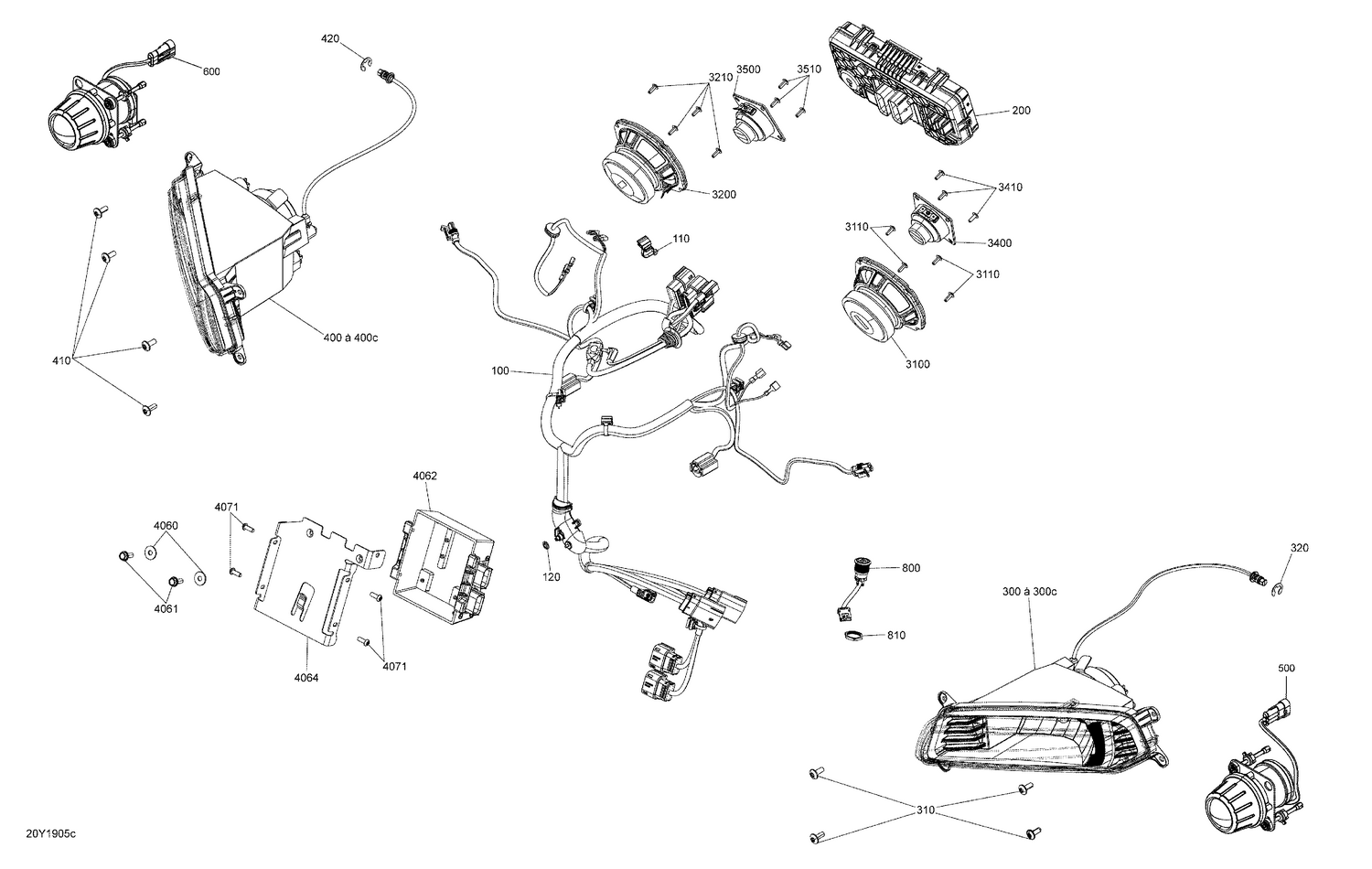

10- Electrical System Console
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 293750063 | Clip Tie-Rap |
| 120 | 250100034 | Push Nut |
| 200 | 710006937 | Multifunction Gauge_Full Size Color This part replaces 710006588. |
| 300a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 300b | 219800280 | Rubber Cap Protector |
| 300c | 219800281 | Spring |
| 310 | 250000721 | Torx Truss Screw M6 X 16 |
| 320 | 293370013 | E-Circlip |
| 400a | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 400b | 219800280 | Rubber Cap Protector |
| 400c | 219800281 | Spring |
| 800 | 710004598 | Switch |
| 810 | 710004108 | Nut |
| 3100 | 710005433 | Haut-Parleur 4.5" |
| 3110 | 250000577 | Torx Truss Screw K40 X 12 |
| 3200 | 710005433 | Haut-Parleur 4.5" |
| 3210 | 250000577 | Torx Truss Screw K40 X 12 |
| 3400 | 710005432 | Haut-Parleur 2.5" |
| 3410 | 250000577 | Torx Truss Screw K40 X 12 |
| 3500 | 710005432 | Haut-Parleur 2.5" |
| 3510 | 250000577 | Torx Truss Screw K40 X 12 |
| 4060 | 234062670 | Stainless Steel Flat Washer |
| 4061 | 210261650 | Hex. Flange Screw M6 X 16 |
| 4062 | 710006566 | Amplifier 6 x 20 Watts This part replaces 710006444. |
| 4064 | 710005814 | Amplifier Holder |
