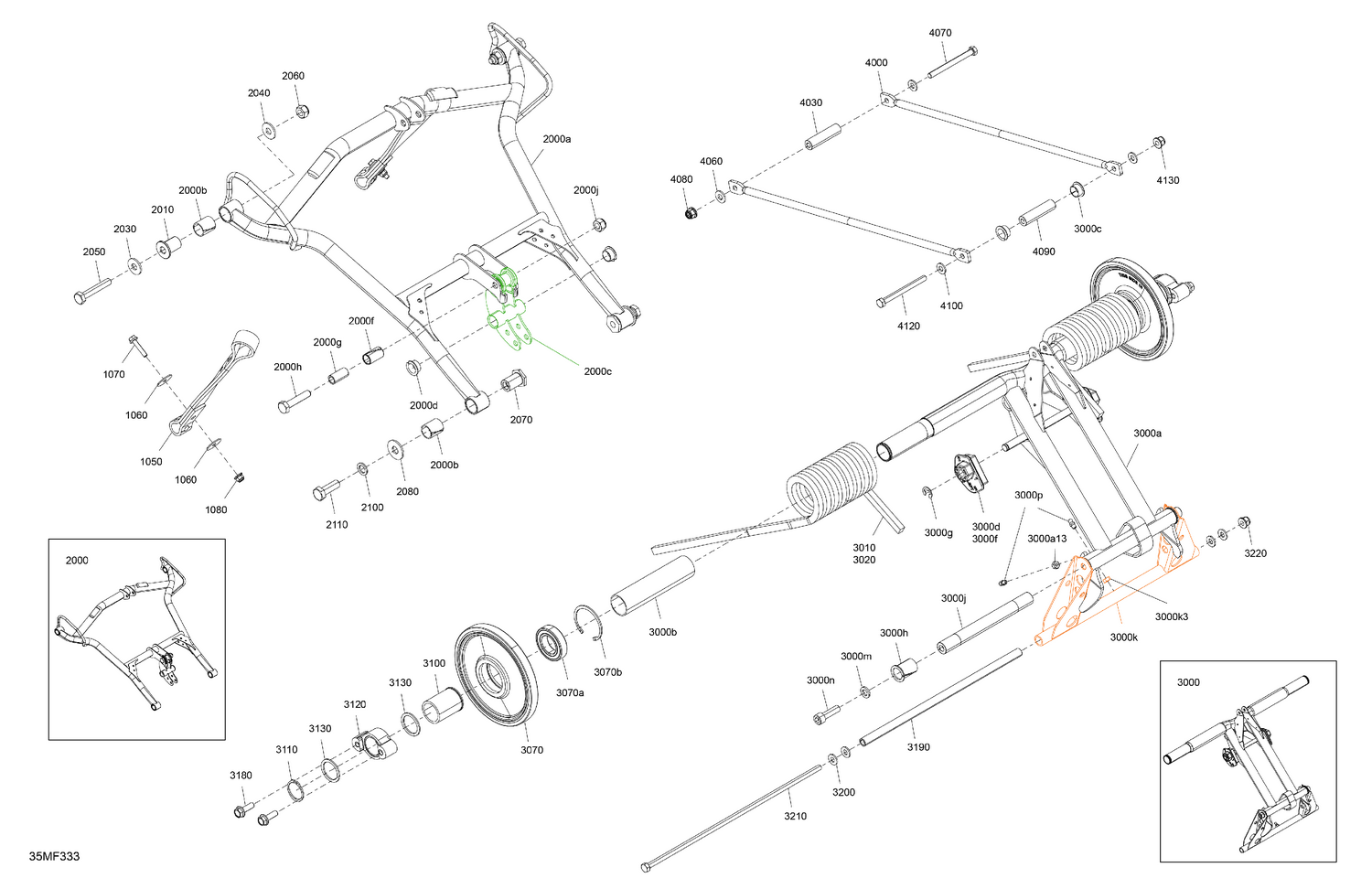

05- Suspension - Rear - Upper Section
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1050 | 503195313 | Stopper Strap |
| 1060 | 503193995 | Washer |
| 1070 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 1080 | 233261466 | Hex. Flange Elastic Nut M6 |
| 2000a | 503197214 | Front Suspension Arm |
| 2000b | 503191556 | Extended Bushing |
| 2000c | 503192531 | Rocker |
| 2000d | 503191555 | Swivel Bushing |
| 2000f | 503193037 | Bushing |
| 2000g | 503189282 | Bushing |
| 2000h | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 2000j | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 2010 | 503197934 | Axe |
| 2030 | 503191926 | Washer |
| 2040 | 503191926 | Washer |
| 2050 | 207006056 | Hex. Cap Screw M10 X 60 |
| 2060 | 233601466 | Elastic Locking Nut M10 |
| 2070 | 503193716 | Lower Axle |
| 2080 | 250200113 | Flat Washer, 12 mm |
| 2100 | 503192491 | Washer |
| 2110 | 250000537 | Hex. Cap Screw M12 X 35 |
| 3000a13 | 232061404 | Hexagonal Nut M6 |
| 3000b | 503197777 | Plastic Socket |
| 3000c | 503191555 | Swivel Bushing |
| 3000d | 503191565 | LH Cam Adjuster |
| 3000f | 503191566 | RH Cam Adjuster |
| 3000g | 293370013 | E-Circlip |
| 3000h | 503191640 | Cushion |
| 3000j | 503196223 | Lower Shaft |
| 3000k3 | 232061404 | Hexagonal Nut M6 |
| 3000m | 503192496 | Washer |
| 3000n | 205503554 | Socket Head Screw M10 X 35 |
| 3000p | 408200700 | Grease Fitting |
| 3010 | 503192911 | Painted Square Spring, LH |
| 3020 | 503192910 | Painted Square Spring, RH |
| 3070a | 503191778 | Ball Bearing |
| 3070b | 415129598 | Retaining Ring |
| 3100 | 503197369 | Spacer |
| 3110 | 293370188 | External Retaining Ring |
| 3120 | 503197878 | Suspension Support Ass'y |
| 3130 | 503197679 | Washer |
| 3180 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 3190 | 503191396 | Axle Pivot |
| 3200 | 503192494 | Washer |
| 3210 | 503195156 | Bolt 369MM |
| 3220 | 233281466 | Elastic Flange Nut M8 |
| 4000 | 503197211 | Link Rod |
| 4030 | 503190643 | Axle Bar (Long) |
| 4060 | 503192494 | Washer |
| 4070 | 503193372 | Screw M8 X 90 |
| 4080 | 233281466 | Elastic Flange Nut M8 |
| 4090 | 503190643 | Axle Bar (Long) |
| 4100 | 503192494 | Washer |
| 4120 | 503193372 | Screw M8 X 90 |
