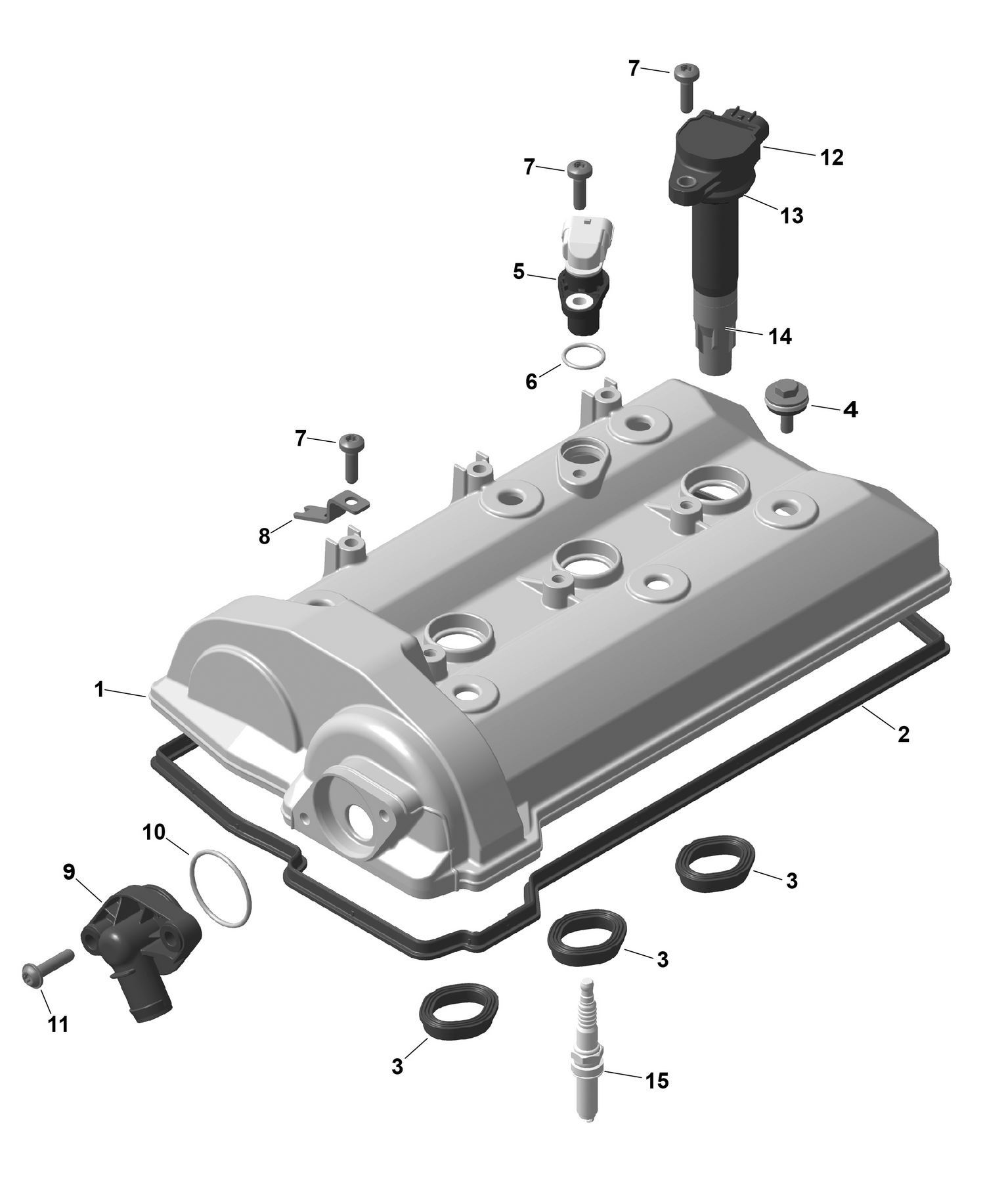

01- ROTAX - Valve Cover
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420911498 | Valve Cover |
| 2 | 420431805 | Gasket |
| 3 | 420431807 | Gasket |
| 4 | 420440497 | Distance Screw M6 |
| 6 | 420631890 | O-Ring |
| 7 | 420441386 | Torx Flange Screw M6 X 20 |
| 8 | 420251293 | Cable Bracket |
| 9 | 420210630 | Connector |
| 10 | 420950870 | O-Ring |
| 11 | 420841549 | Torx Flange Screw M6 X 25 |
| 13 | 420201430 | Protection Cap |
| 14 | 420201437 | Plug Boot |
