Home / BRP / 2026 / 005 - Brutal Series / Europe - BRUTAL 900 ACE Turbo R - RE / Europe - BRUTAL - 900 ACE TURBO R - RE - SZTG - Deep Black - 154X15X2.5P Track - 2026 000SZTG00 / 07- Body - Cargo

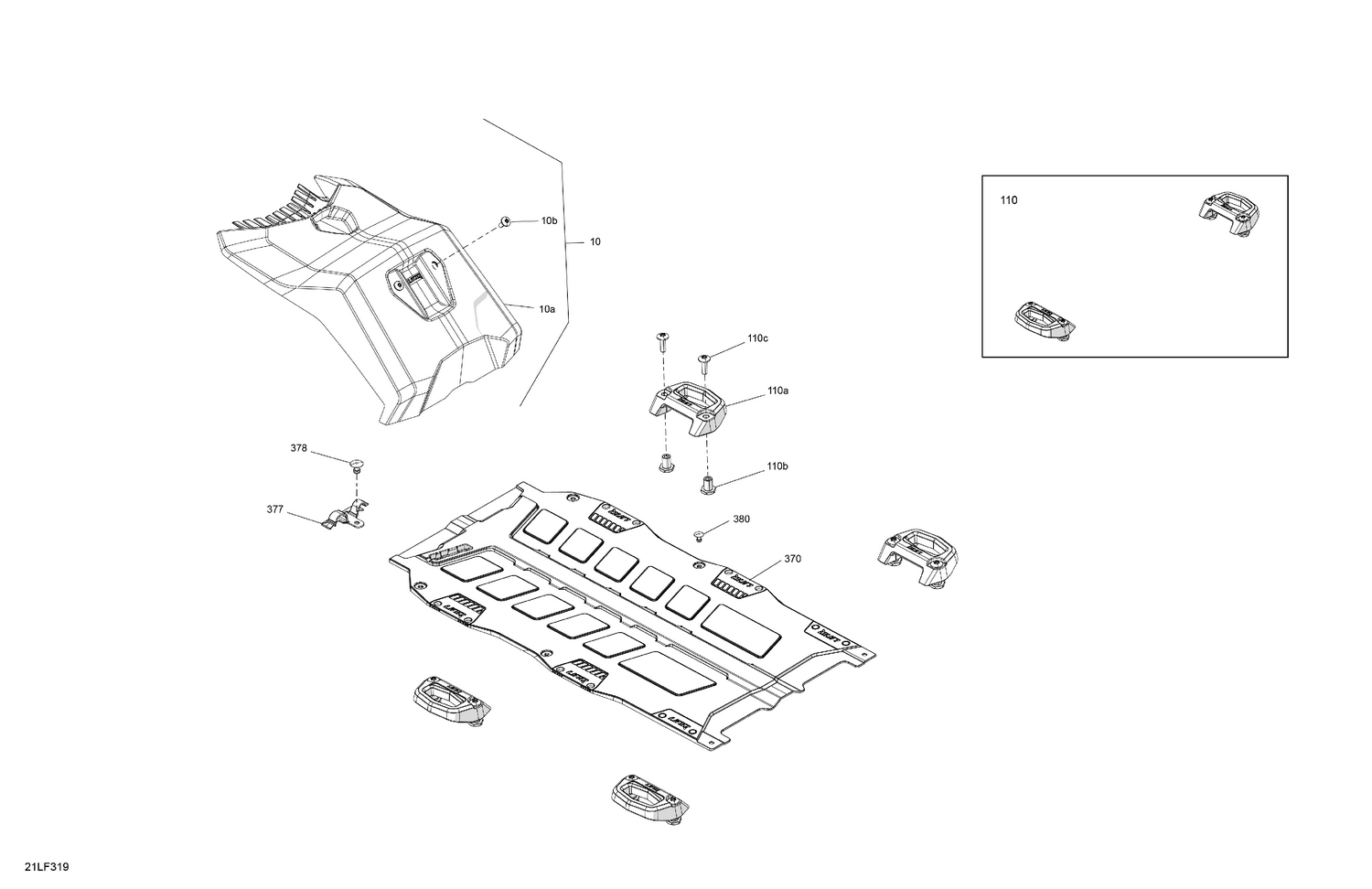

07- Body - Cargo

07- Body - Cargo

Parts (8)

RefPart NumberDescription
10a 511001053 Battery Cover
10b 250001005 Torx Screw M6 X 16
110a XXX Not Available As Spare Parts
110b 511000822 Insert
110c 250000446 Torx Screw M6 X 20, Scotch Grip
370 511001782 Radiator Trim
377 520001722 Cap
378 293150292 Black, Pop Rivet 3/16 X ,550
