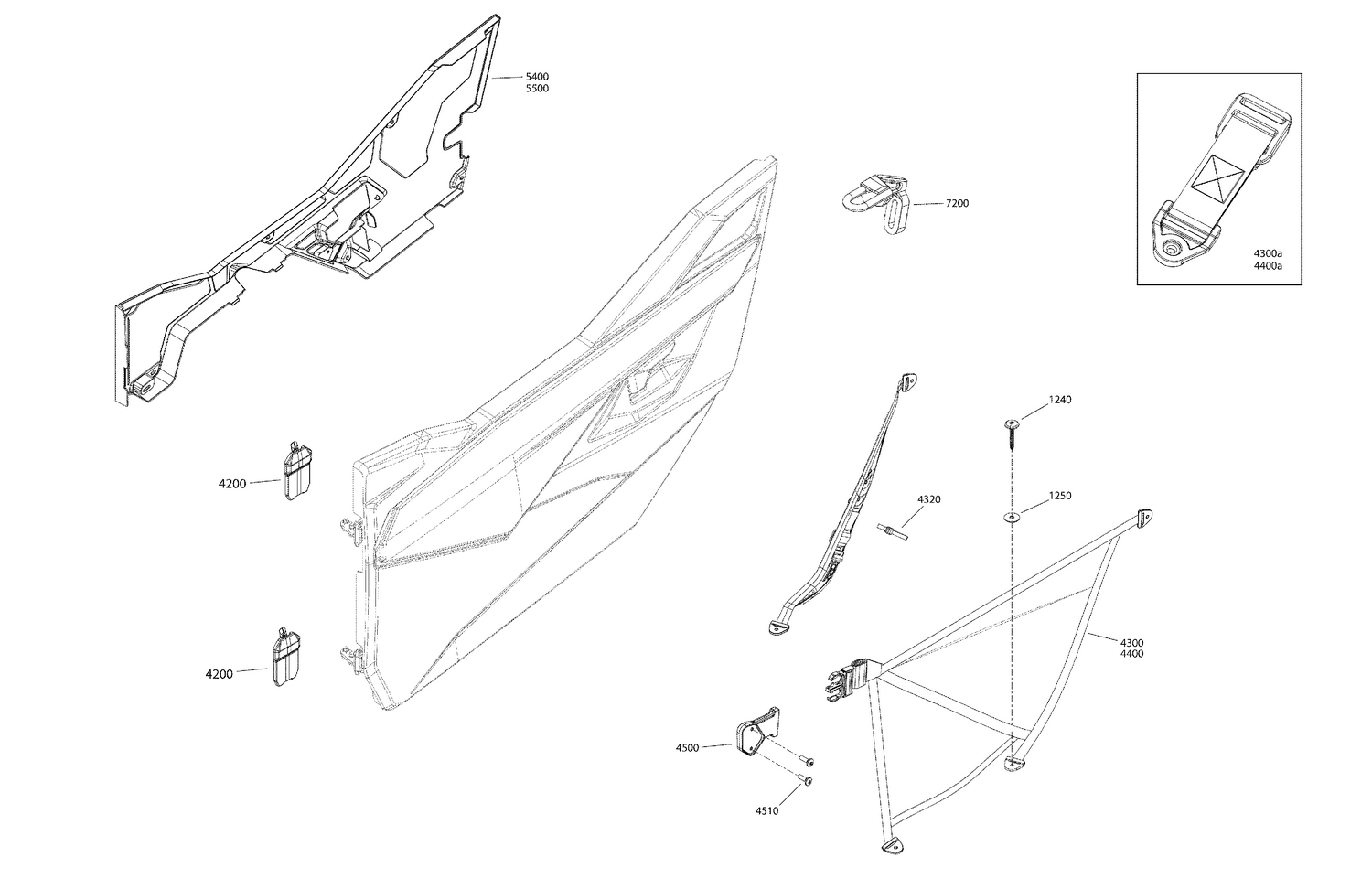

09- Body Maverick Trail - 800 - White - Door Section
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1240 | 250000840 | Torx Truss Screw Head PT.K50 X 40 |
| 1250 | 250200162 | Flat Washer M6.6 X 22 |
| 4300 | 707900676 | LH Front Safety Net |
| 4300a | 707900049 | Upper Link |
| 4320 | 293750047 | Tie Rap, 533 mm |
| 4400a | 707900049 | Upper Link |
| 4500 | 707900592 | Safety Net Link |
| 4510 | 250000720 | Torx Screw K50 X 16 |
| 5400 | 715005003 | LH Inner Door Panel Ass'y |
| 5500 | 715006765 | RH Door Panel Ass'y This part replaces 715005004. |
