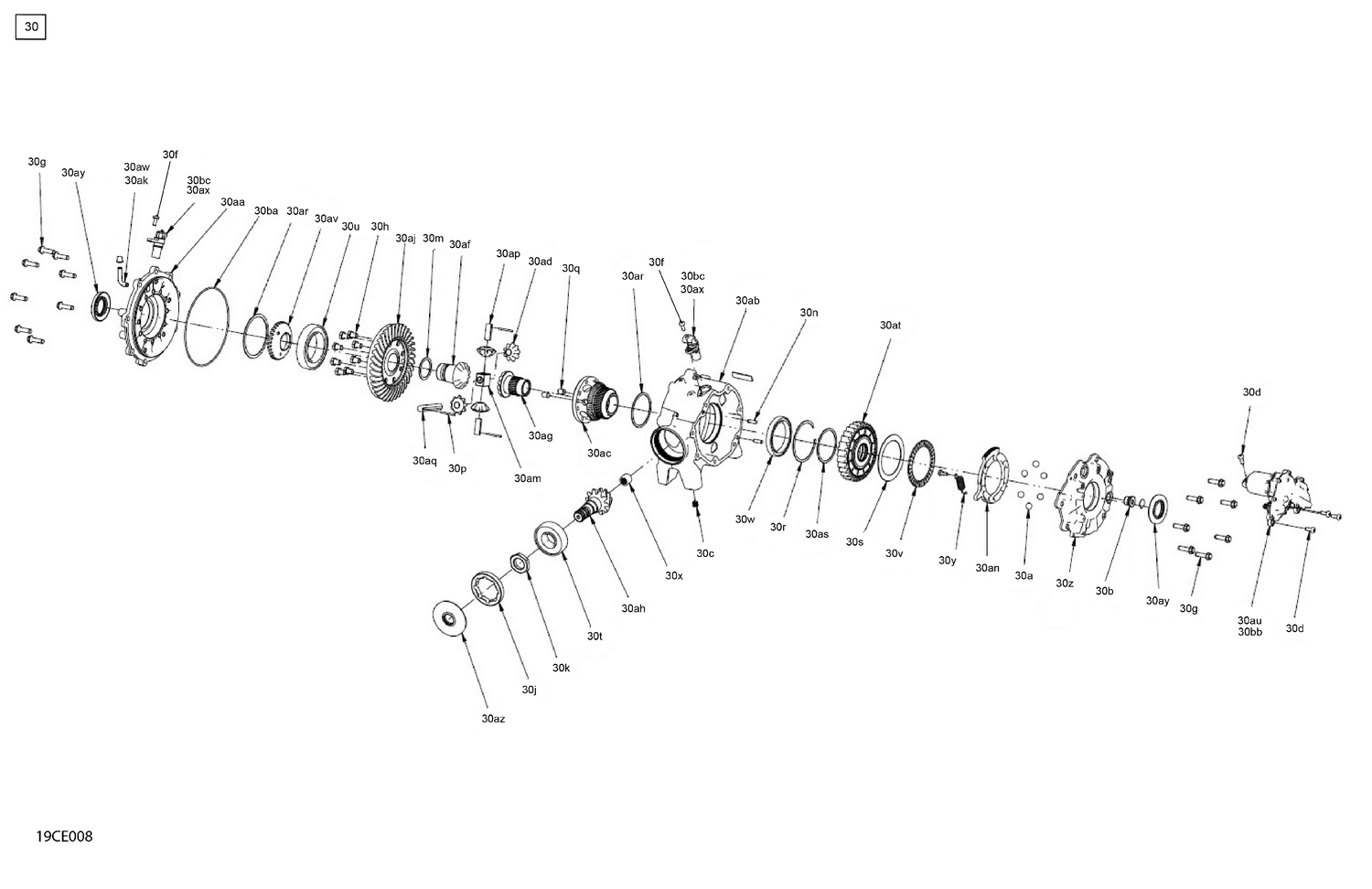

04- Drive - Front - Differential Parts
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 715900564 | Ball |
| 30aa | 715900684 | LH Cover |
| 30ab | 715900674 | Housing |
| 30ac | 715900713 | Housing |
| 30ad | 715900714 | Diff Pinion Gear 9T |
| 30af | 715900715 | Gear Output 14T |
| 30ag | 715900716 | Gear Output 14T |
| 30ah | 715500493 | LH Pinion, 10T Spiral, Bevel |
| 30aj | 715500494 | Spiral Bevel Gear, 36T |
| 30ak | 705401935 | Vent Valve |
| 30am | 715900541 | Coupler, Pin |
| 30an | 715900540 | Ramp Ball |
| 30ap | 715900711 | Pin Diff Pinion 0.5 x 1.3125 |
| 30aq | 715900712 | Pin Diff Pinion 0.5 X 3.125 |
| 30ar | 715900539 | Shim 74.50 X 66.00 |
| 30as | 715900538 | Shim 3.735 X 3.300 |
| 30at | 715900537 | Clutch Pack |
| 30au | 715900640 | Actuator Ass'y |
| 30av | 715900534 | Tone Ring 30T |
| 30aw | 715900533 | Vent Cap 5/16 |
| 30ax | 715900532 | Speed Sensor |
| 30ay | 715900531 | Oil Seal |
| 30az | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 30b | 705501889 | Fill Level Plug |
| 30ba | 715900530 | O-Ring |
| 30bb | 715900601 | O-Ring |
| 30c | 715900563 | Fill Level Plug M10 |
| 30d | 705402845 | Torx Screw M6 X 16 |
| 30f | 705402845 | Torx Screw M6 X 16 |
| 30g | 705501886 | Bolt |
| 30h | 715900561 | Hex Screw 3/8 X 0.500 |
| 30j | 705401819 | Nut M75 X 1.5 |
| 30k | 705401820 | Nut M27 X 1.5 |
| 30m | 715900656 | Thrust Washer 1,510 X 1,875 X 0,032 |
| 30n | 715900559 | Dowel Pin |
| 30p | 715900655 | Dowel Pin 3 X 36 |
| 30q | 715900618 | Dowell Pin |
| 30r | 715900558 | Retainin Ring |
| 30s | 715900557 | Thrust Washer |
| 30t | 705401821 | Ball Bearing |
| 30u | 715900556 | Ball Bearing 60 X 95 X 18 |
| 30v | 715900555 | Needle Bearing |
| 30w | 715900554 | Ball Bearing 65 X 85 X 10 |
| 30x | 715500495 | Plain Bearing 1615 DP4 |
| 30y | 715900553 | Spring |
| 30z | 715900683 | RH Cover |
