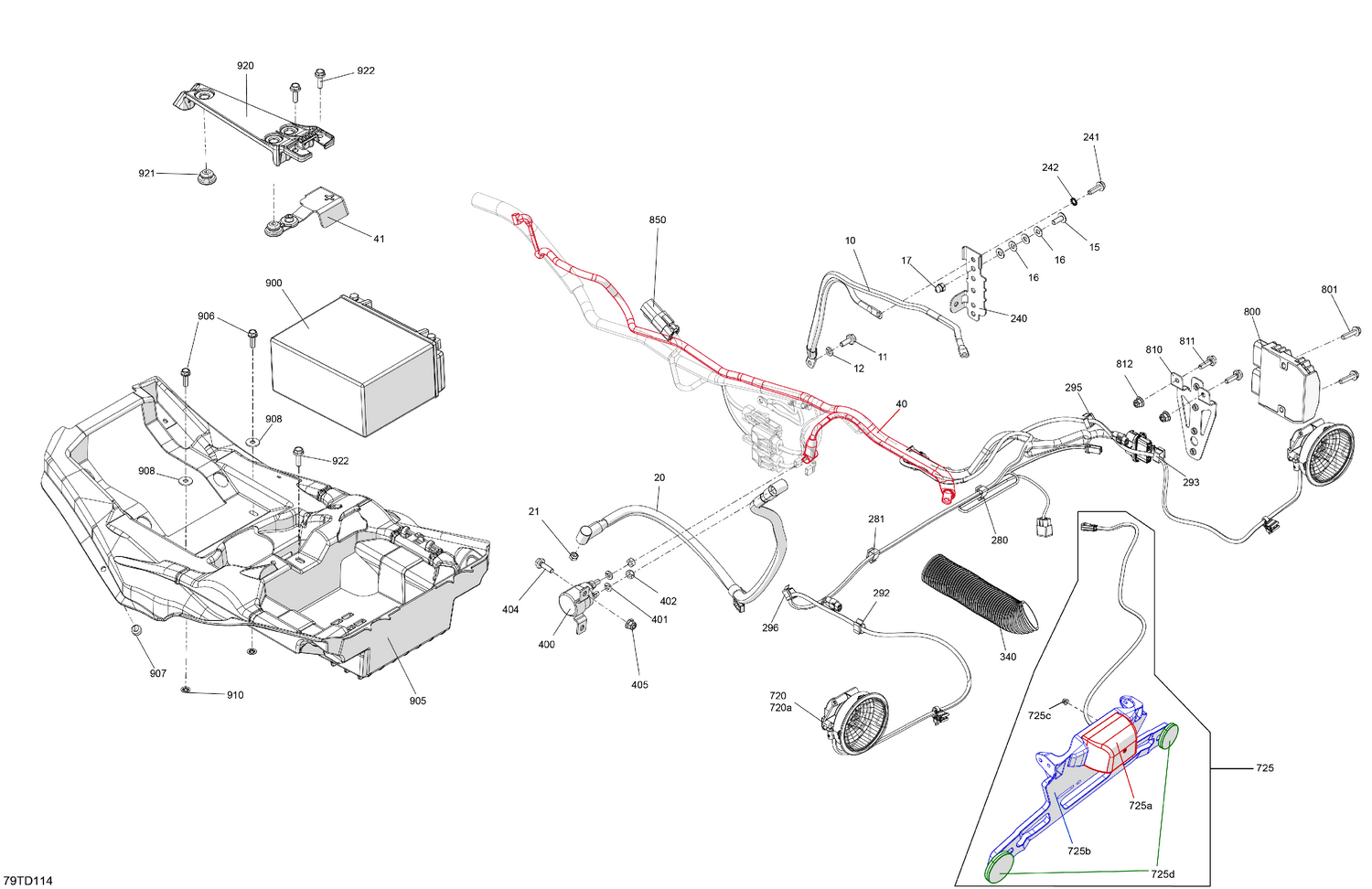

08- Electric - Rear Section
Parts (44)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 710004382 | Ground Cable |
| 11 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 12 | 234161601 | Lock Washer Helical M6 |
| 15 | 250000717 | Torx Head Screw M6 X 16 |
| 16 | 224061121 | Flat Washer |
| 17 | 232361493 | Domed Nut M6 |
| 20 | 710004377 | Positive Cable |
| 21 | 232561434 | Elastic Stop Nut M6 |
| 40 | 710007437 | Cable |
| 41 | 710006729 | Battery Cable Cap |
| 240 | 710004118 | Connector Bracket |
| 241 | 210262040 | Hex. Flange Screw M6 X 20 |
| 242 | 234461608 | External Serrated Lock Washer 6 mm |
| 280 | 710010204 | Clip |
| 281 | 710010204 | Clip |
| 292 | 710010204 | Clip |
| 293 | 710010204 | Clip |
| 295 | 710010204 | Clip |
| 296 | 710010204 | Clip |
| 340 | 219704428 | Tubing 35 MM 1000MM Long |
| 400 | 710007777 | Starter Relay |
| 401 | 234161601 | Lock Washer Helical M6 |
| 402 | 232561434 | Elastic Stop Nut M6 |
| 404 | 207662054 | Hex. Flange Screw M6 X 20 |
| 405 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 720a | 520000758 | Bulb |
| 725a | 710005563 | License Plate Light |
| 725b | 708300434 | Plate Support |
| 725c | 233251434 | Flange Elastic Nut M5 |
| 725d | 705016982 | Red, Reflector |
| 800 | 710005842 | Voltage Regulator |
| 801 | 250001124 | Hex Screw Forming M6 x 25 |
| 810 | 710009499 | Voltage Regulator Support |
| 811 | 207662044 | Hex. Flange Screw M6 X 20 |
| 812 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 850 | 710003006 | Housing |
| 900 | 296000444 | Battery YUASA YTX20L |
| 905 | 710008370 | Battery Support |
| 906 | 210262050 | Hexagonal Head Screw |
| 907 | 293830005 | Rubber Bumper |
| 908 | 234062670 | Stainless Steel Flat Washer |
| 910 | 732610072 | Push Nut |
| 920 | 710009129 | Retaining Plate |
| 921 | 705014429 | Rubber Stopper |
