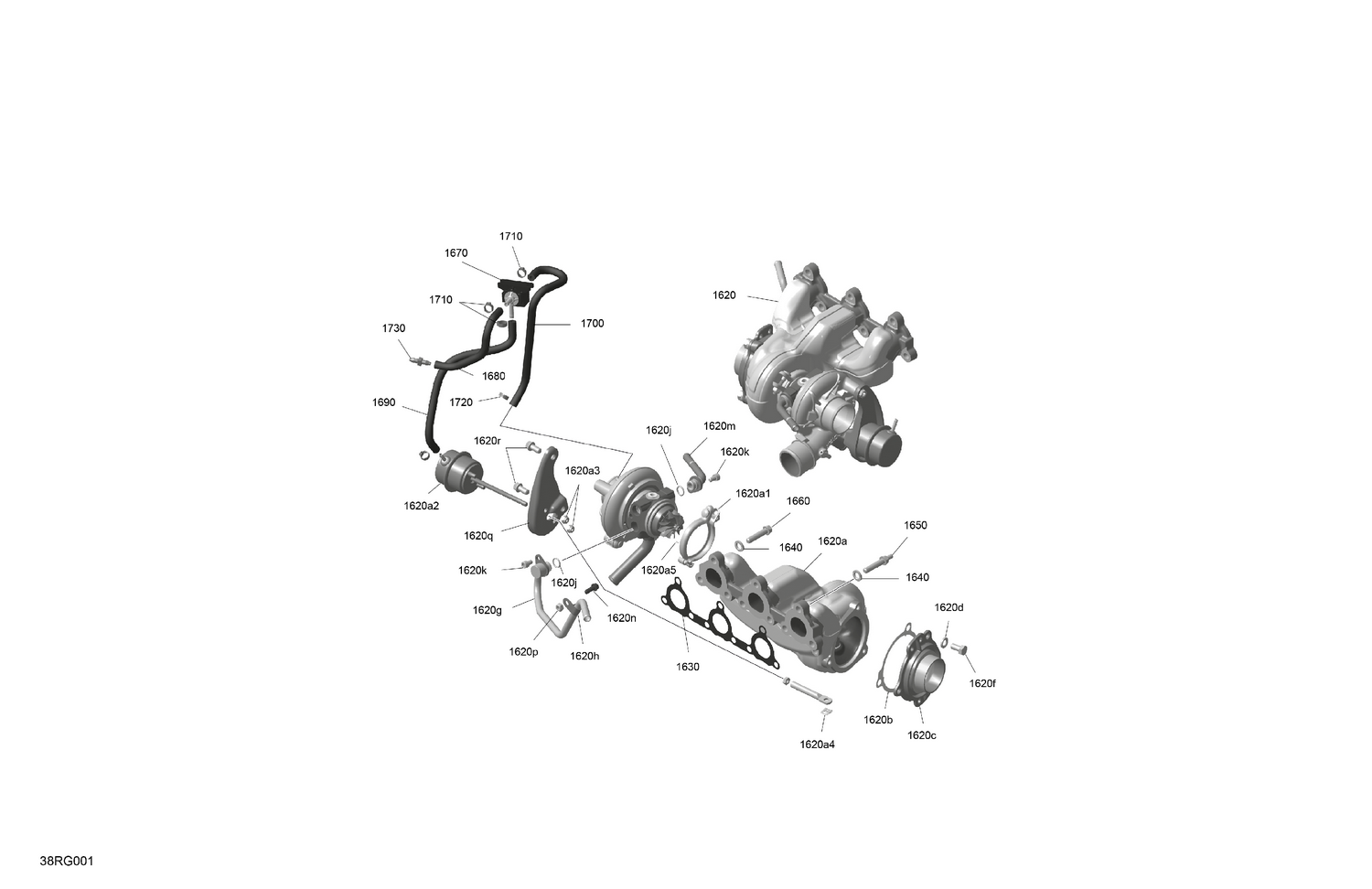

01- ROTAX - Turbocharger
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1620a1 | 420651871 | V-Band Clamp Ass'y 58MM |
| 1620a2 | 420867372 | Actuator |
| 1620a3 | 420842041 | Lock Nut |
| 1620a4 | 420845000 | Circlip |
| 1620a5 | 420629310 | Needle Pin |
| 1620b | 420431941 | Exhaust Gasket |
| 1620c | 420873511 | Exhaust Flange |
| 1620d | 420827521 | Washer |
| 1620f | 420940586 | Hex Screw M8 X 16 |
| 1620g | 420822894 | Water Cooling Tube Ass'y |
| 1620h | 420851101 | Cable Clamp |
| 1620j | 420650928 | O-Ring |
| 1620k | 420241081 | Allen Screw M6 X 10 |
| 1620m | 420622063 | Cooling Water Pipe |
| 1620n | 420440162 | Torx Flange Screw M6 X 16 |
| 1620p | 420942046 | Lock Nut M6-10 |
| 1620q | 420651855 | Wastegate Support |
| 1620r | 420440854 | Torx Flange Screw M8 X 16 |
| 1630 | 420431850 | Gasket |
| 1640 | 420827521 | Washer |
| 1650 | 420440693 | Collar Screw M8 X 35 |
| 1660 | 420641188 | Torx Flange Screw M8 X 35 |
| 1670 | 420664636 | Solenoid Valve |
| 1680 | 420201233 | Hose 390MM |
| 1690 | 420201233 | Hose 390MM |
| 1700 | 420201233 | Hose 390MM |
| 1710 | 420853133 | Clamp 9.2-10.9 mm |
| 1720 | 420851468 | Gear Clamp |
