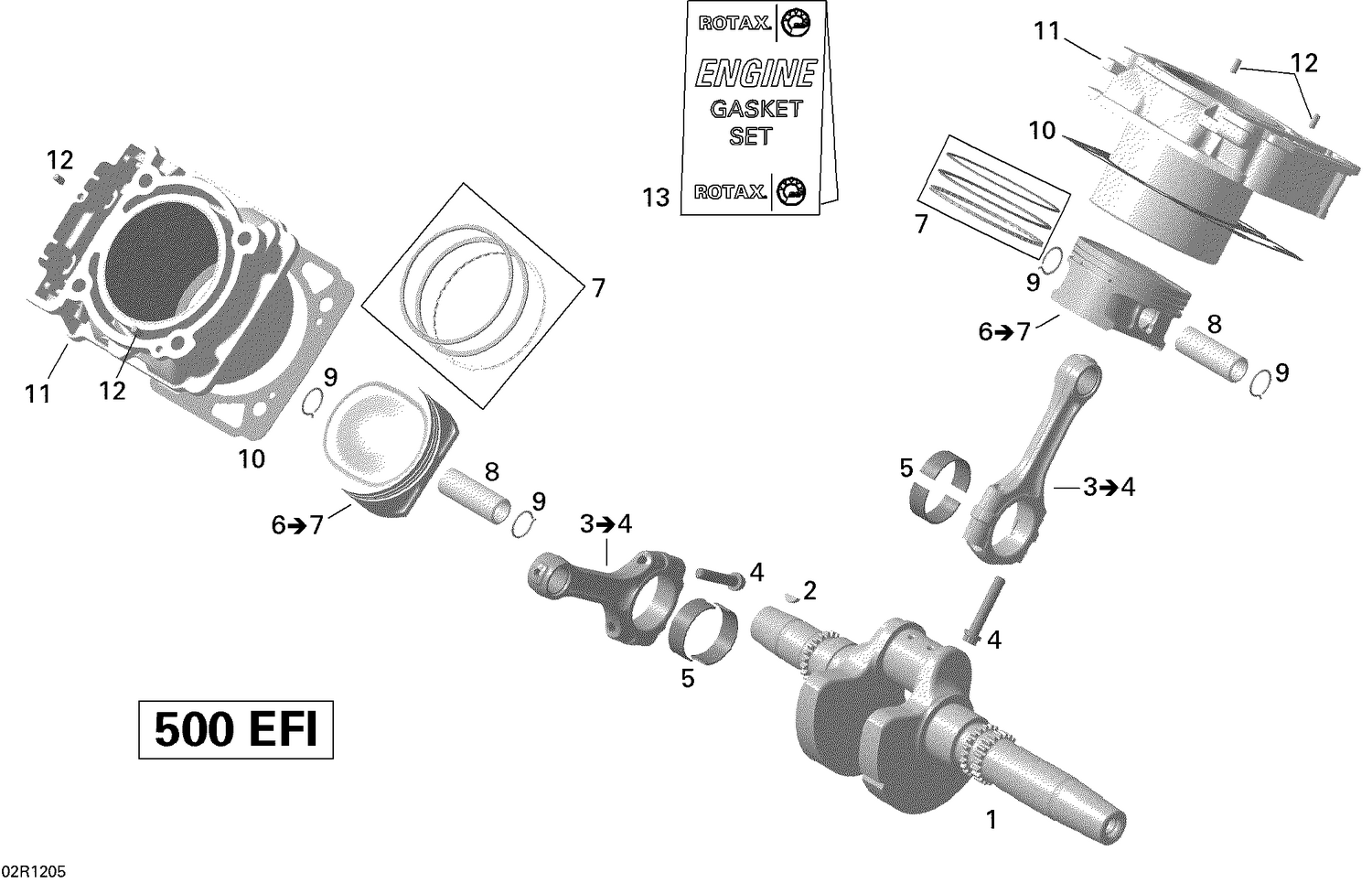

01- Crankshaft, Piston And Cylinder
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420219697 | Crankshaft |
| 2 | 420246570 | Woodruff Key 4 X 5 |
| 4 | 420641794 | Connecting Rod Screw M7 X 1 This part replaces 420641790. |
| 5 | 420233112 | Plain Bearing 35 X 38 X 15 This part replaces 420233111. |
| 7 | 420684384 | Piston Ring Set |
| 8 | 420216310 | Piston Pin This part replaces 420216311. |
| 9 | 420845540 | Piston Circlip |
| 10 | 420630211 | Gasket Aramid This part replaces 420630210. |
| 11 | 420413211 | Cylinder With Sleeve This part replaces 420613887. |
| 12 | 420929650 | Drive Pin 5 X 10 |
