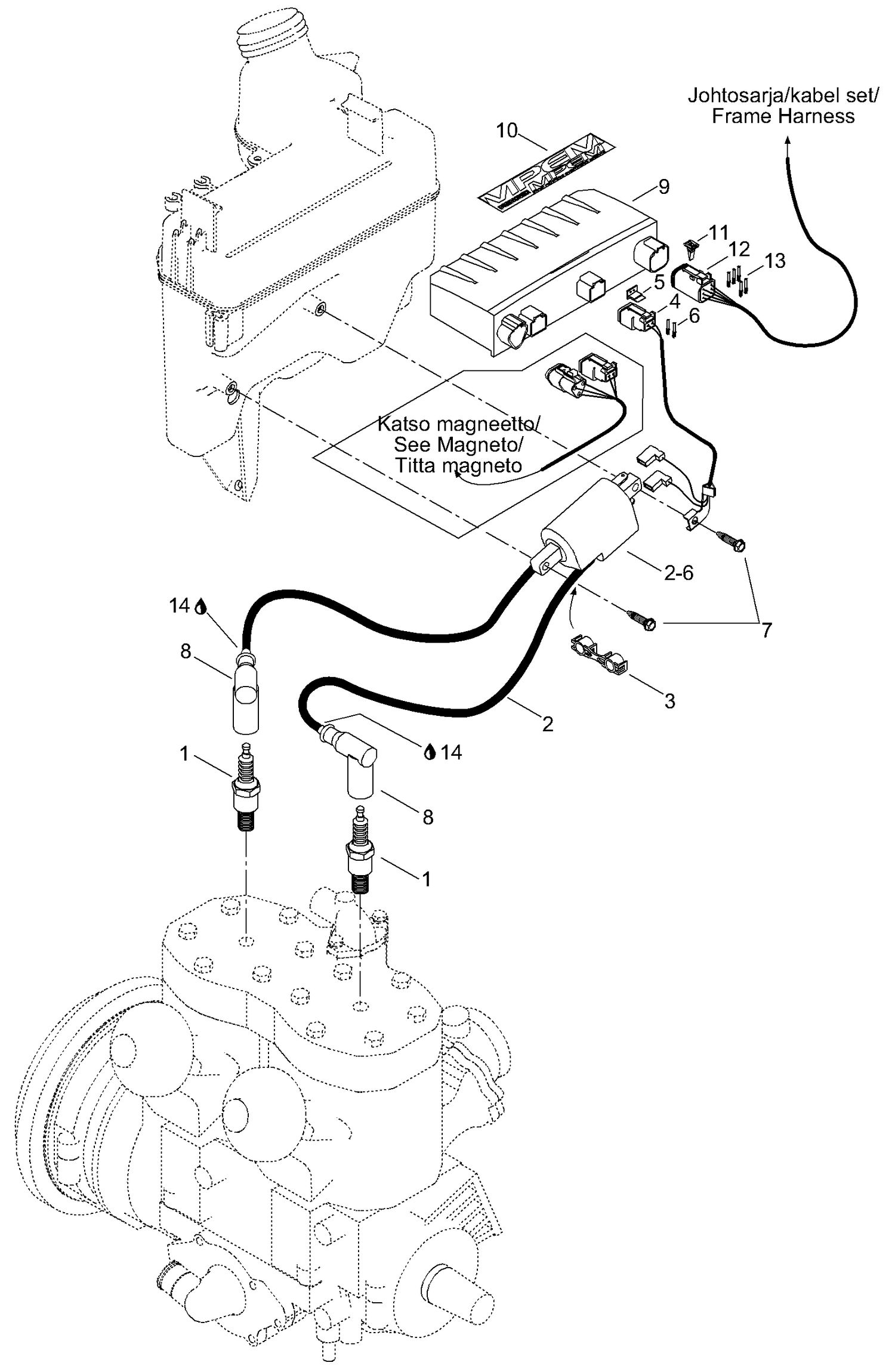

01- DPM
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059533 | Spark Plug NGK BR9ECS-5 |
| 3 | 410914600 | Plastic clip |
| 4 | 42610 | Female terminal housin |
| 5 | 42609 | Female lock (2 circuits) |
| 6 | 278000632 | Female terminal |
| 7 | 40375 | Screw |
| 8 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 9 | 512059453 | Calibration module |
| 10 | 516000245 | Label, MPEM |
| 11 | 515175705 | Female lock (6 circuits) |
| 12 | 515175673 | Female terminal housin |
| 13 | 278000632 | Female terminal |
