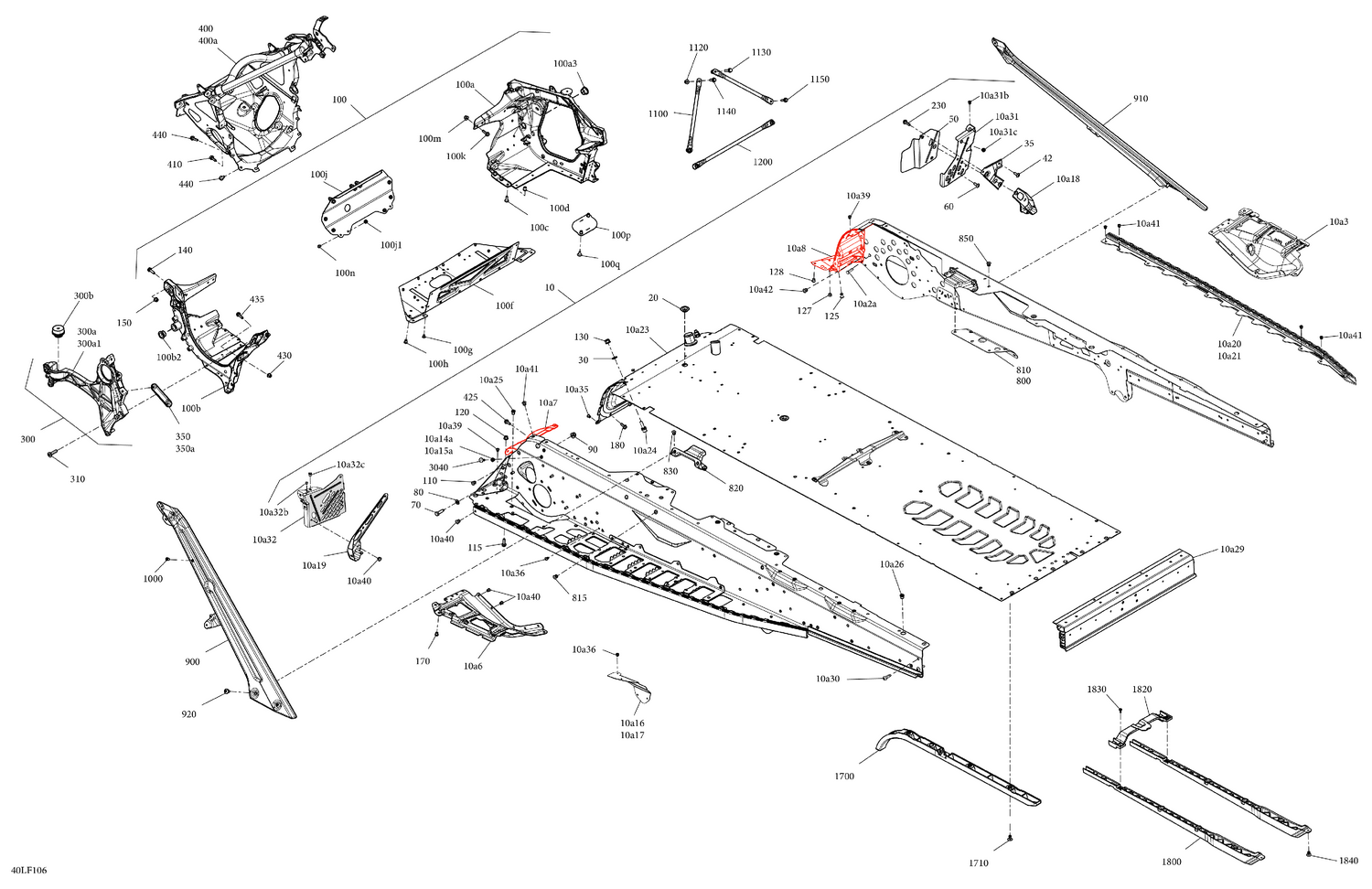

| Ref | Part Number | Description |
|---|
| 10a14a |
605636003 |
Clinch Nut M6 Hexsert |
| 10a15a |
605636003 |
Clinch Nut M6 Hexsert |
| 10a16 |
518330538 |
LH Rear Support |
| 10a17 |
518330539 |
RH Rear Support |
| 10a18 |
518329789 |
RH Footrest Reinforcement |
| 10a19 |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10a20 |
518336156 |
RH Formed Boarding Step |
| 10a21 |
518330281 |
LH Roller |
| 10a23 |
518336023 |
Radiator Tunnel 154 |
| 10a24 |
250300652 |
Protruding Stud M8 x 22 |
| 10a25 |
605636003 |
Clinch Nut M6 Hexsert |
| 10a26 |
293450275 |
Insert |
| 10a29 |
518331836 |
Rear Cap |
| 10a2a |
250300027 |
Clinch Stud M6 X 20 |
| 10a3 |
518332805 |
RH Drive Axle Cover |
| 10a30 |
250001151 |
Torx Button Head Screw M8 X 25 |
| 10a31b |
390909200 |
Avex Rivet |
| 10a31c |
605636003 |
Clinch Nut M6 Hexsert |
| 10a32b |
390909200 |
Avex Rivet |
| 10a32c |
605636003 |
Clinch Nut M6 Hexsert |
| 10a35 |
390909100 |
Avex Rivet |
| 10a36 |
390909200 |
Avex Rivet |
| 10a39 |
293150264 |
Rivet Ornit 6,5 X 10.5 |
| 10a40 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10a41 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10a42 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10a6 |
518334095 |
LH Chassis Reinforcement |
| 10a7 |
518329368 |
LH Frame Corner 20 |
| 10a8 |
518329369 |
RH Molded Spacer |
| 20 |
293730052 |
Black, Plug |
| 30 |
234081430 |
Flat Washer M8 |
| 35 |
518331727 |
RH Stirrup Reinforcement |
| 42 |
250000717 |
Torx Head Screw M6 X 16 |
| 50 |
518330928 |
Heat Shield |
| 60 |
250000717 |
Torx Head Screw M6 X 16 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332715 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 100p |
518332276 |
Oil Plate |
| 100q |
250000767 |
Torx Truss Screw M6 X 12 |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 115 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 127 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 128 |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 300a1 |
518329769 |
Member Cast |
| 300b |
512061516 |
Vibration Damper |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 350a |
518331741 |
LH Front Chassis Reinforcement |
| 400a |
518334551 |
Chassis Suspension Module Ass'y |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 435 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 440 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 800 |
518331729 |
LH Under Chassis Reinforcement |
| 810 |
518331731 |
RH Under Chassis Reinforcement |
| 815 |
293150271 |
Rivet Ornit 6,5 X 10.5 |
| 820 |
518331733 |
Cross Member Support |
| 830 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 900 |
518336947 |
Orange Crush, LH Rear Diagonal Cross Member |
| 910 |
518336948 |
Orange Crush, RH Rear Diagonal Cross Member |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1100 |
518329370 |
Upper Colomn Support |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1150 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
| 1200 |
518329756 |
Center Colomn Support |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
518333936 |
Central Protective Structure |
| 1830 |
250000577 |
Torx Truss Screw K40 X 12 |
| 1840 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
