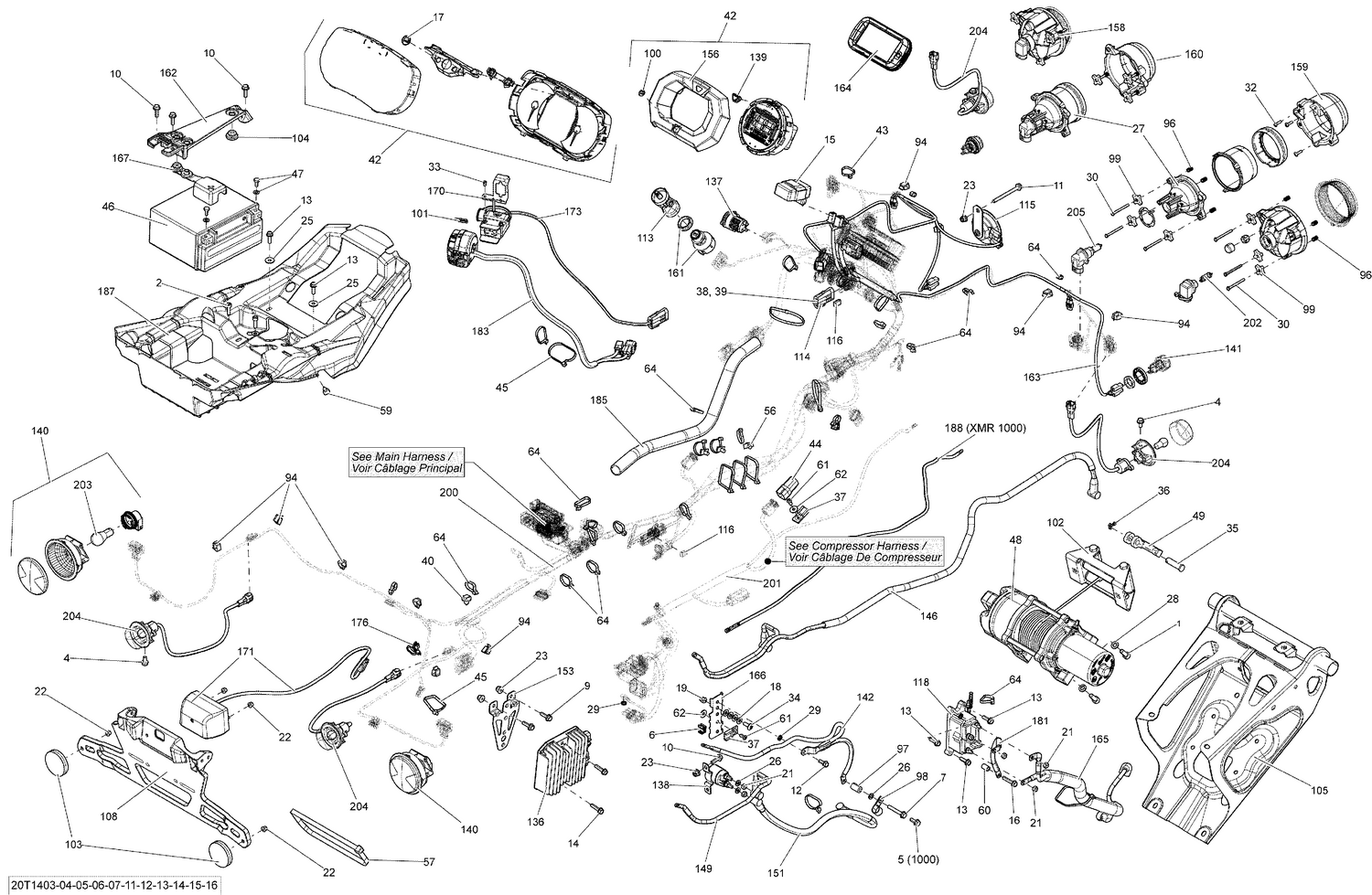

10- Electrical System
Parts (101)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205082044 | Socket Head Screw M8 X 20 |
| 2 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 4 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 5 | XXX | Not Available As Spare Parts |
| 6 | XXX | Not Available As Spare Parts |
| 7 | 207564044 | Hex. Flange Screw M6 X 40, Scotch Grip |
| 9 | 207662044 | Hex. Flange Screw M6 X 20 |
| 10 | 207662084 | Hex. Flange Screw M6 X 20 |
| 11 | 207667044 | Hex. Flange Screw M6 X 70 |
| 12 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 13 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 14 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 15 | 710003239 | Flasher Unit |
| 16 | 210263050 | Hex. Flange Screw M6 X 30 This part replaces 210263080. |
| 17 | XXX | Not Available As Spare Parts |
| 18 | 224061121 | Flat Washer |
| 19 | 232361493 | Domed Nut M6 |
| 21 | 232561414 | Elastic Stop Nut M6 |
| 22 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 25 | 234062670 | Stainless Steel Flat Washer |
| 26 | 234161601 | Lock Washer Helical M6 |
| 27 | 710002525 | High Beam Ass'y |
| 28 | 234181401 | Lock Washer 8 mm |
| 29 | 234461608 | External Serrated Lock Washer 6 mm |
| 30 | 250000718 | Hex. Screw K40 X 45 This part replaces 241044540. |
| 32 | 250000723 | Phillips Screw K40 X 16 This part replaces 250000084. |
| 33 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 34 | 250000223 | Torx Screw M6 X 16 |
| 35 | 250400021 | Clevis Pin |
| 36 | 250400022 | Cotter Pin |
| 37 | 270000141 | Clip |
| 38 | 278000216 | Wire Seal |
| 39 | 278000281 | Female Terminal Housing, 3 Circuits |
| 40 | 293730040 | Mount Dart |
| 42 | 710003923 | Speedometer Ass'y This part replaces 710003454. |
| 42a | 415129320 | Lens |
| 43 | 293750002 | Tie Wrap 142 mm |
| 44 | 710003006 | Housing |
| 45 | 293750008 | Tie Wrap 368 mm |
| 46 | 410301203 | Battery YUASA YTX20L |
| 47 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 48 | 705008546 | WINCH - Call your local BRP dealership This part replaces 705003296. |
| 49 | 705014949 | Winch Hook Kit This part replaces 705002329. |
| 56 | XXX | Not Available As Spare Parts |
| 57 | 293750041 | Tie-rap 627 mm |
| 59 | 293830005 | Rubber Bumper |
| 60 | 293900078 | Sleeve |
| 61 | 390402300 | Pop Rivet 3/16" |
| 62 | 391301600 | Washer |
| 64 | 414115200 | Tie-Rap 180 mm |
| 94 | 414227300 | Clip |
| 96 | 517168600 | Spring |
| 97 | 517203200 | Spacer |
| 98 | 518321570 | Open Clamp |
| 99 | 572106600 | Handle |
| 100 | 704904615 | BRP Logo13 mm This part replaces 704901270. |
| 101 | 704901835 | DPS LABEL - Call your local BRP dealership |
| 102 | 715007699 | Fairlead_Roller Kit This part replaces 715000011. |
| 103 | 705011221 | Red Reflector This part replaces 705002408. |
| 104 | 705014429 | Rubber Stopper This part replaces 705003666. |
| 105 | 705016893 | Front Bumper Support This part replaces 705004165. |
| 108 | 708300434 | Plate Support |
| 114 | 710000917 | Connector Ass'y |
| 115 | 710004791 | Horn This part replaces 710000983. |
| 116 | 710000992 | Clip |
| 118 | 710001000 | Winch Solenoid |
| 137 | 710001248 | DC Outlet |
| 138 | 710007777 | Starter Relay This part replaces 710001364. |
| 139 | 710001473 | Button |
| 140 | 710001645 | Tail Light Ass'y |
| 141 | 710001726 | Day Light |
| 142 | 710004382 | Ground Cable This part replaces 710001747. |
| 146 | 710004375 | Connector Ass'y This part replaces 710001748. |
| 149 | 710004376 | Positive Cable This part replaces 710001749. |
| 151 | 710001750 | POSITIVE CABLE - Call your local BRP dealership |
| 153 | 710001752 | Rectifier Support |
| 156 | 710002092 | Trim Ring |
| 158 | 710006177 | Low Beam This part replaces 710002191. |
| 160 | 710002291 | RH High Front Housing |
| 160 | 710002292 | LH High Front Housing |
| 161 | 710008400 | Ignition Switch This part replaces 710002327. |
| 162 | 710009129 | Retaining Plate This part replaces 710002404. |
| 163 | 710002481 | Harness Ass'y |
| 164 | XXX | Not Available As Spare Parts |
| 165 | 710004378 | Winch Cables This part replaces 710002560. |
| 166 | 710002567 | BRACKET - Call your local BRP dealership |
| 167 | 710006729 | Battery Cable Cap This part replaces 710002569. |
| 170 | 710002631 | Winch Switch Support |
| 171 | 710005563 | License Plate Light This part replaces 710002721. |
| 173 | 710002724 | Winch Switch |
| 176 | 710002896 | Tie-Rap Clip |
| 181 | 710003003 | CABLE_NEGATIVE - Call your local BRP dealership |
| 185 | XXX | Not Available As Spare Parts |
| 187 | 710008370 | Battery Support This part replaces 710003325. |
| 188 | XXX | Not Available As Spare Parts |
| 200 | 710005005 | Main Harness This part replaces 710003626. |
| 201 | XXX | Not Available As Spare Parts |
| 202 | 715900141 | Bulb 12V 55W |
| 203 | 520000758 | Bulb |
| 204 | 710002964 | Flasher |
