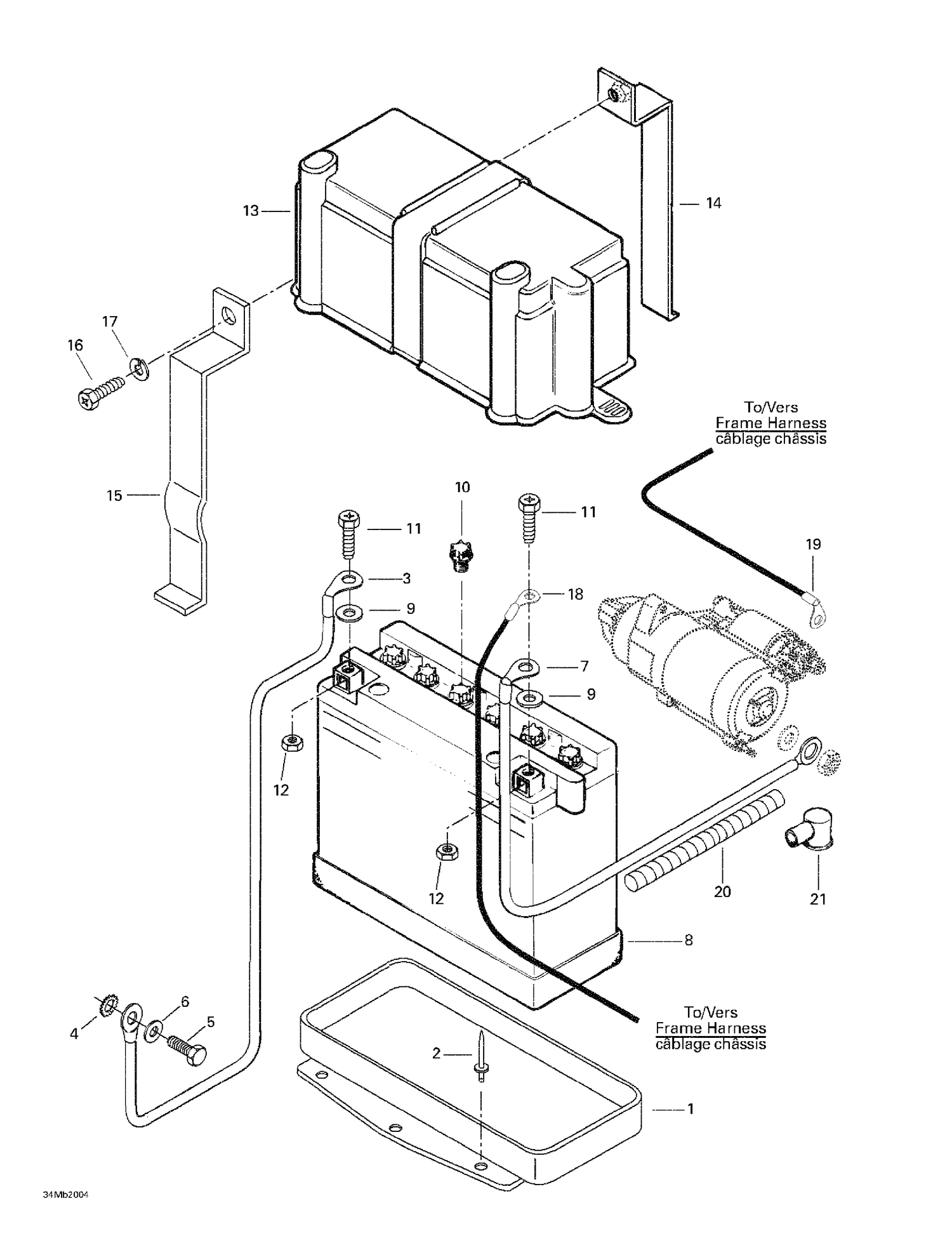

10- Electrical System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 517286200 | Battery Seat |
| 2 | 390402200 | Pop Rivet 3/16" |
| 3 | 515157425 | Ground Wire |
| 4 | 394001900 | EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership |
| 5 | 207161444 | Hex. Screw M6 X 14 |
| 6 | 234161471 | Lock Washer M6, Black |
| 7 | 515175488 | Battery Wire |
| 9 | 391302100 | FLAT WASHER - Call your local BRP dealership |
| 10 | 410300800 | Battery Cap |
| 11 | 207161644 | Hex. Screw M6 X 16 |
| 12 | 232061414 | Hex. Nut M6 |
| 13 | 570022000 | Battery Cover |
| 14 | 517286000 | Steel Strip |
| 15 | 517286100 | Steel Strip |
| 16 | 207152044 | Hex. Screw M5 X 20 |
| 17 | 234151401 | Lock Washer 5 mm |
| 18 | 278001392 | Open Barrel Terminal This part replaces 409012600. |
| 19 | 409012500 | Open Barrel |
| 20 | 219704399 | Was 409901700 Tubing (9 mm) |
