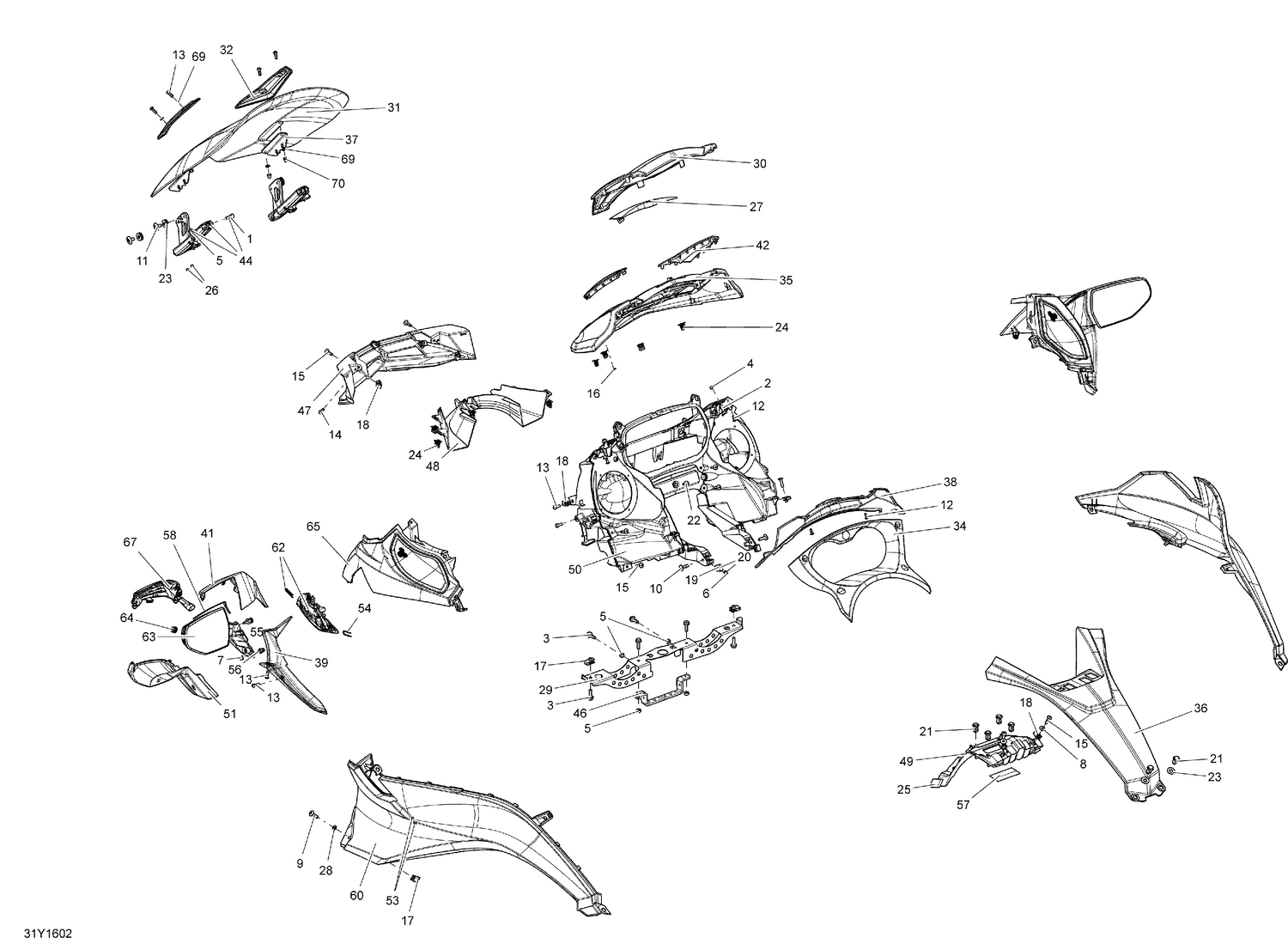

09- Body And Accessories - Console
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 205061644 | SOCKET HEAD SCREW M6 X 16 - Call your local BRP dealership |
| 2 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 3 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 4 | 232061414 | Hex. Nut M6 |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 232561600 | Hex. Elastic Stop Nut M6 |
| 8 | 234052670 | Stainless Steel Flat Washer M5 |
| 9 | 250000350 | Torx Truss Screw M6 X 20 |
| 10 | 250000488 | Torx Truss Screw M6 X 20 |
| 11 | 250000551 | TORX SCREW M6 X 13.5 - Call your local BRP dealership |
| 12 | 250000577 | Torx Truss Screw K40 X 12 |
| 13 | 250000578 | Torx Truss Screw M5 X 16, T25 |
| 14 | 250000661 | Socket Screw M5 X 16 F/ |
| 15 | 250000724 | Torx Screw M5 X 20 |
| 16 | 250100034 | Push Nut |
| 17 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 18 | 250100176 | Panel Nut M5 X 0.8 |
| 19 | 269500252 | M6 Nut Housing Ass'y |
| 20 | 269500725 | M6 Nut Housing Ass'y |
| 21 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 22 | 293750044 | Tie Rap Mount |
| 23 | 234062670 | Stainless Steel Flat Washer |
| 23 | 293830164 | RUBBER WASHER - Call your local BRP dealership |
| 24 | 517302785 | Edge Clip |
| 25 | 518327579 | LATERAL CONSOLE FOAM - Call your local BRP dealership |
| 26 | 705001705 | Ball |
| 27 | 705009360 | Guide Chart |
| 28 | 705003207 | Plastic Washer |
| 29 | 705004950 | CROSS SUPPORT CONSOLE - Call your local BRP dealership |
| 30 | 705004954 | Upper Console |
| 31 | 705004960 | Windshield |
| 32 | 705004961 | LH WINDSHIELD MOULDING - Call your local BRP dealership |
| 32 | 705004962 | RH Windshield Moulding |
| 34 | 705007460 | Moulding Dash Board |
| 35 | 705006842 | Carbon Black Front Console |
| 36 | 705008858 | PANEL_BODY CTRL. B-266 - Call your local BRP dealership |
| 37 | 705004982 | Windshield Support |
| 38 | 705005320 | UPPER CONSOLE MOULDING - Call your local BRP dealership |
| 39 | 705005323 | LH Upper Air Deflector |
| 39 | 705005324 | RH Upper Air Deflector |
| 41 | 705005325 | Mirror Sheel This part replaces 705006914. |
| 41 | 705005326 | Mirror Sheel This part replaces 705006915. |
| 42 | 705005411 | LH SLIDER PROTECTOR - Call your local BRP dealership |
| 42 | 705005412 | RH SLIDER PROTECTOR - Call your local BRP dealership |
| 44 | 705005461 | RH Rail Ass'y |
| 46 | 705005476 | CONSOLE SUPPORT BRACKET - Call your local BRP dealership |
| 47 | 705005582 | Headlamp Moulding |
| 48 | 705005586 | Center Air Intake |
| 49 | 705005739 | LATERAL CONSOLE SUPPORT - Call your local BRP dealership |
| 50 | 705006016 | CONSOLE SUPPORT ASS'Y - Call your local BRP dealership |
| 53 | 705006633 | Stopper |
| 54 | 705006661 | Spring |
| 55 | 705006733 | Flat Head Stud M5 |
| 56 | 708400538 | Stud Ball M5 This part replaces 705006734. |
| 57 | 705007123 | FOAM PROTECTOR - Call your local BRP dealership |
| 58 | 296000392 | Seal |
| 62 | 705008210 | RH Mirror Plate Support Ass'y |
| 62 | 705008211 | LH Mirror Plate Support Ass'y |
| 64 | 705010625 | Spring |
| 65 | 705009560 | DASHBOARD - Call your local BRP dealership |
| 65 | 705009561 | DASHBOARD - Call your local BRP dealership |
| 67 | 710004029 | LH Flasher |
| 67 | 710004030 | RH FLASHER - Call your local BRP dealership |
| 69 | 234051670 | Flat Washer M5 |
