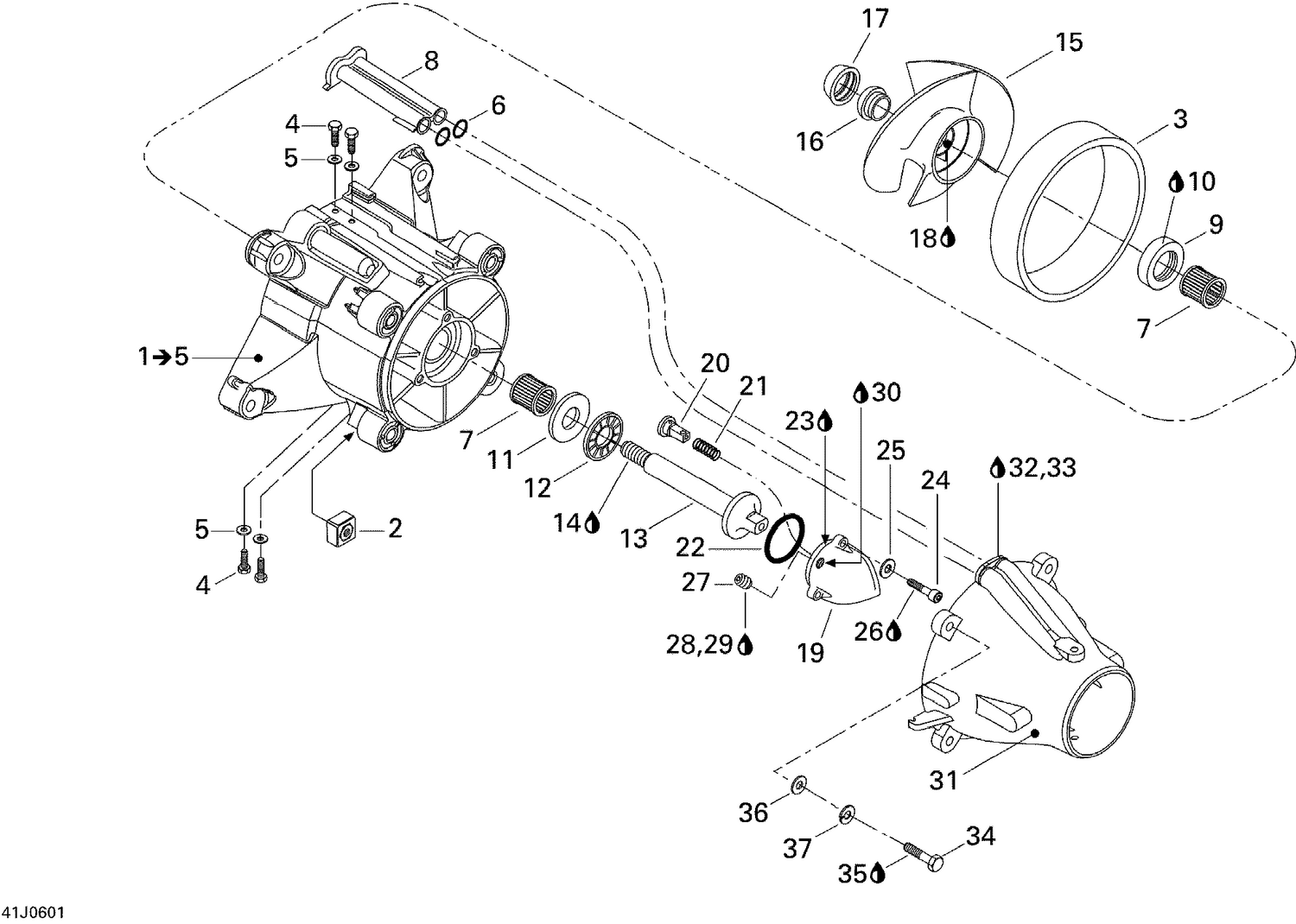

05- Pump
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 211100033 | Square Nut M8 |
| 3 | 271000653 | Wear Ring |
| 4 | 250000040 | Hex. Plastite Screw #10 X 3/8" |
| 5 | 234051600 | Flat Washer M5, Stainless |
| 6 | 293300013 | O-Ring |
| 7 | 293350017 | Needle Bearing |
| 8 | 271000785 | Water Outlet |
| 9 | 267000094 | Oil Seal |
| 11 | 293350020 | THRUST WASHER - Call your local BRP dealership |
| 12 | 293350022 | Thrust-Bearing |
| 13 | 271000965 | Impeller Shaft |
| 14 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 15 | 204160136 | Impeller Assy - Call your local BRP dealership |
| 16 | 271000516 | Impeller Boot |
| 17 | 271000517 | Impeller Ring |
| 18 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 19 | 271001250 | IMPELLER COVER - Call your local BRP dealership |
| 20 | 271000978 | PUSHER - Call your local BRP dealership |
| 21 | 271000973 | SPRING - Call your local BRP dealership |
| 22 | 293300011 | O-Ring |
| 24 | 205062560 | Socket Head Screw M6 X 25 |
| 25 | 234061600 | Stainless Flat Washer M6 |
| 26 | 293800060 | Loctite 243, 10 ml |
| 27 | 211500001 | Pipe Plug Socket Head 1/8-27 Npt |
| 28 | 219704454 | Was 293800013 Loctite 56765 |
| 29 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 30 | 779221 | JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML This part replaces 293600011. |
| 31 | 204160191 | Venturi, Black |
| 33 | 219704458 | Was 293800041 Loctite Primer 7649 |
| 34 | 207087060 | HEX. SCREW M8 X 70 - Call your local BRP dealership |
| 35 | 293800060 | Loctite 243, 10 ml |
| 36 | 293050001 | Flat Washer M8.5 x 18 |
