Parts Catalog

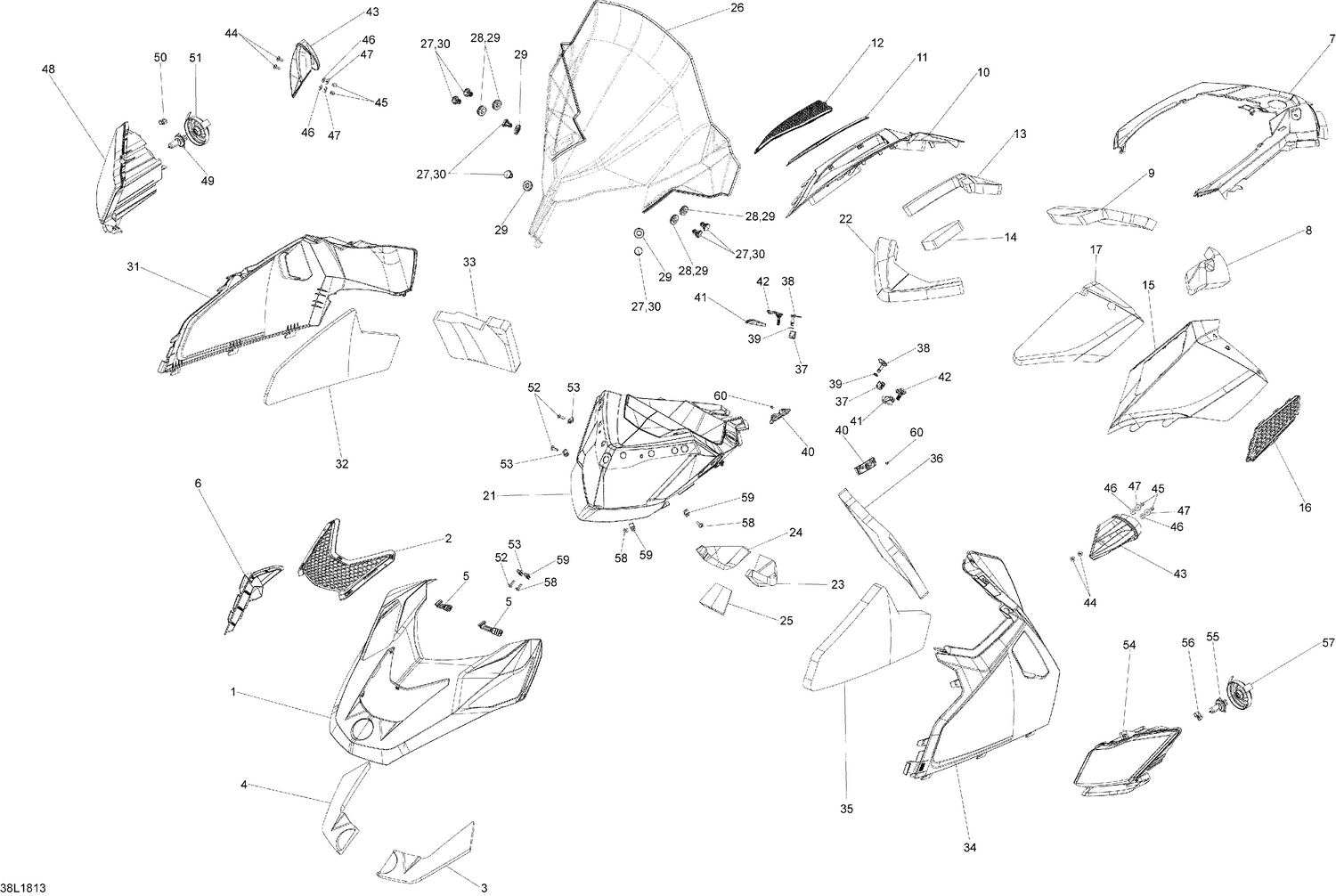

09- Hood YETI - 600HO E-TEC

Parts (54)

Ref	Part Number	Description
1	517304814	White, Hood
2	517304843	Hood grill front
3	517304330	Isolation L.H.
4	517304214	Isolation R.H.
5	517304289	Latch Pannel
6	517306980	Scoop Grill This part replaces 517304155.
7	517305220	Black, Console
8	517305644	Isolation left
9	517304318	Isolation right
10	517304826	White, RH Upper Side Panel
11	517304015	Acces panel grill R.H.
12	517304016	Access Panel Grill Lower RH
13	517304311	Isolation
14	517305987	Insulator
15	517304837	White, LH Upper Side Panel
16	517303893	L.H. Acces panel grill
17	517304313	Insulator
18	517305311	Insulator
19	502007312	Grill plate
20	414644300	Black, Dart
21	517304272	Indicator Support
22	517304314	Isolation front
23	517304315	Isolation right
24	517304316	R.H. Isolation
25	517304319	Isolation middle
27	517304744	Button
28	517303756	Grommet
29	517303756	Grommet
30	517304744	Button
31	517306977	Panel_Body Rh B-160 This part replaces 517304328.
32	517304709	Foam Right
33	517304310	Isolation rear R.H.
34	517306979	Panel_Body Lh B-160 This part replaces 517304329.
35	517304707	Foam LH
36	517304309	Isolation rear L.H.
37	517304297	Handle Fastener Quarter-Turn
38	517304296	Quarter-Turn Handle
39	517304538	Locking Plate
40	517303756	Grommet
41	517304075	End Piece Latch
42	517306057	Panel Latch
44	250000721	Torx Truss Screw M6 X 16
45	232361493	Nut Hexagonal Domed M6
46	250200024	Rubber Washer 5 mm
47	20117	Washer
49	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
50	515176498	Kansi
51	219800280	Rubber Cap Protector This part replaces 515176499.
52	250000722	Torx Truss Screw M6 x 20
53	250100198	Panel Nut , M6 X 1.0 This part replaces 250000048.
55	515176274	Halogen Bulb, 60/55 W, 12 V ( H4 )
56	515176498	Kansi
57	219800280	Rubber Cap Protector This part replaces 515176499.
58	250000722	Torx Truss Screw M6 x 20
