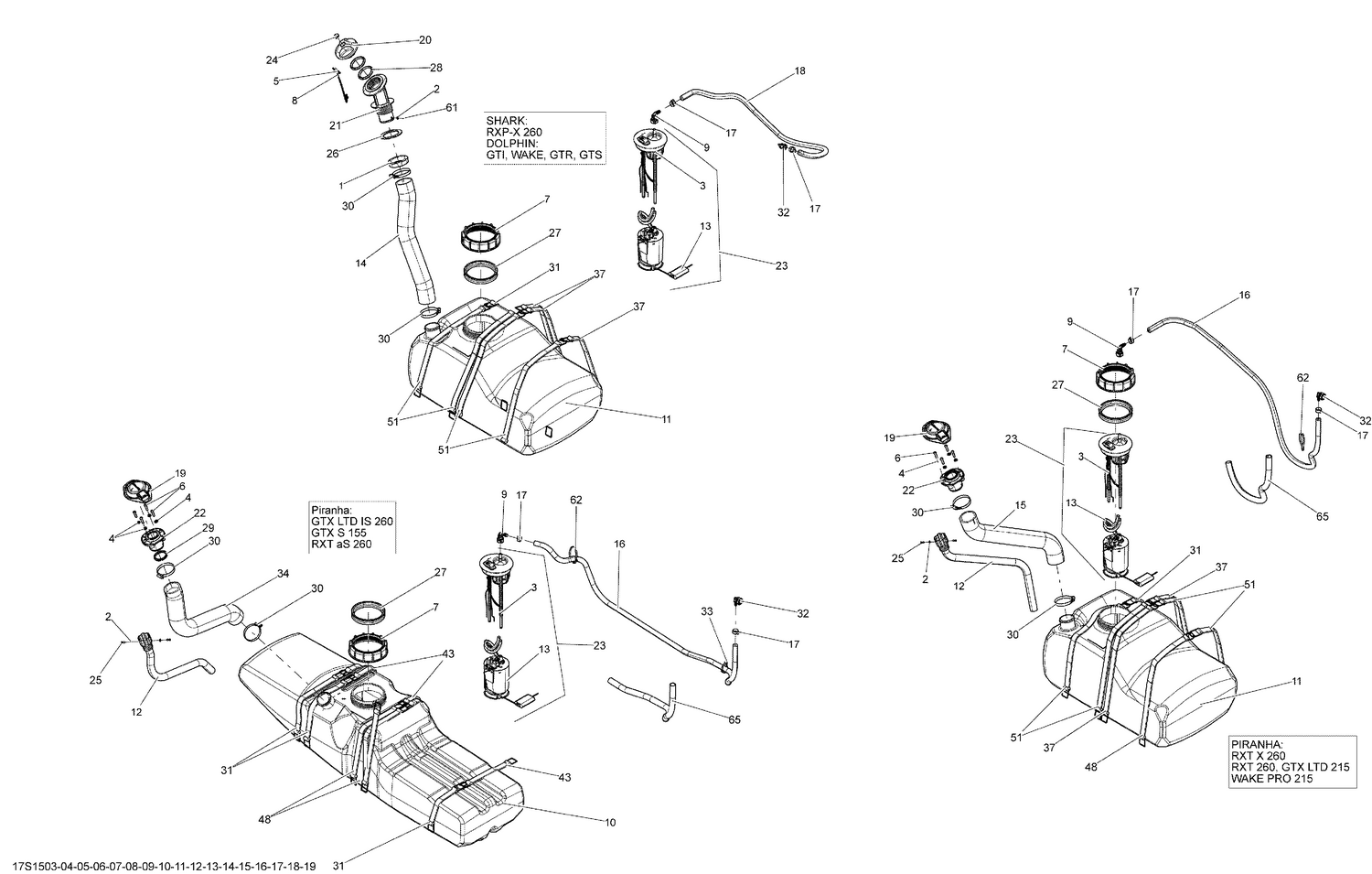

| Ref | Part Number | Description |
|---|
| 1 |
XXX |
Not Available As Spare Parts |
| 2 |
234032600 |
Flat Washer M3, Stainless |
| 3 |
270600113 |
Fuel Filter This part replaces 270600108. |
| 4 |
234061600 |
Stainless Flat Washer M6 |
| 5 |
XXX |
Not Available As Spare Parts |
| 6 |
250000328 |
Torx Screw M6 X 25, Scotch Grip |
| 7 |
250100062 |
Special Nut M130 |
| 8 |
XXX |
Not Available As Spare Parts |
| 9 |
275500700 |
Quick Attach 90° |
| 10 |
XXX |
Not Available As Spare Parts |
| 11 |
275500962 |
Fuel Tank This part replaces 275500754. |
| 12 |
275500757 |
FILLER NECK, INTERIOR - Call your local BRP dealership |
| 13 |
275500780 |
Sensor Lever |
| 14 |
XXX |
Not Available As Spare Parts |
| 15 |
275500917 |
HOSE - Call your local BRP dealership |
| 16 |
219704395 |
HOSE I.D. 7.9MM 3000MM LONG - Call your local BRP dealership |
| 17 |
293650053 |
Crimp Clamp |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
275500832 |
Fuel Cap Ass'y |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 22 |
275500848 |
Fuel Filler Neck |
| 23 |
275500996 |
Pump Fuel Ass'y This part replaces 275500850. |
| 24 |
XXX |
Not Available As Spare Parts |
| 25 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 26 |
XXX |
Not Available As Spare Parts |
| 27 |
293250173 |
Gasket |
| 28 |
XXX |
Not Available As Spare Parts |
| 29 |
293300139 |
X-Ring |
| 30 |
293650081 |
Norma Clamp |
| 31 |
293850112 |
Holding Strap |
| 32 |
275500921 |
Quick Disconnect |
| 33 |
293750008 |
Tie Wrap 368 mm |
| 34 |
XXX |
Not Available As Spare Parts |
| 37 |
293850093 |
Fuel Tank Strap This part replaces 293850111. |
| 43 |
XXX |
Not Available As Spare Parts |
| 48 |
XXX |
Not Available As Spare Parts |
| 51 |
293850101 |
Fuel Tank Strap This part replaces 293850115. |
| 61 |
XXX |
Not Available As Spare Parts |
| 62 |
XXX |
Not Available As Spare Parts |
