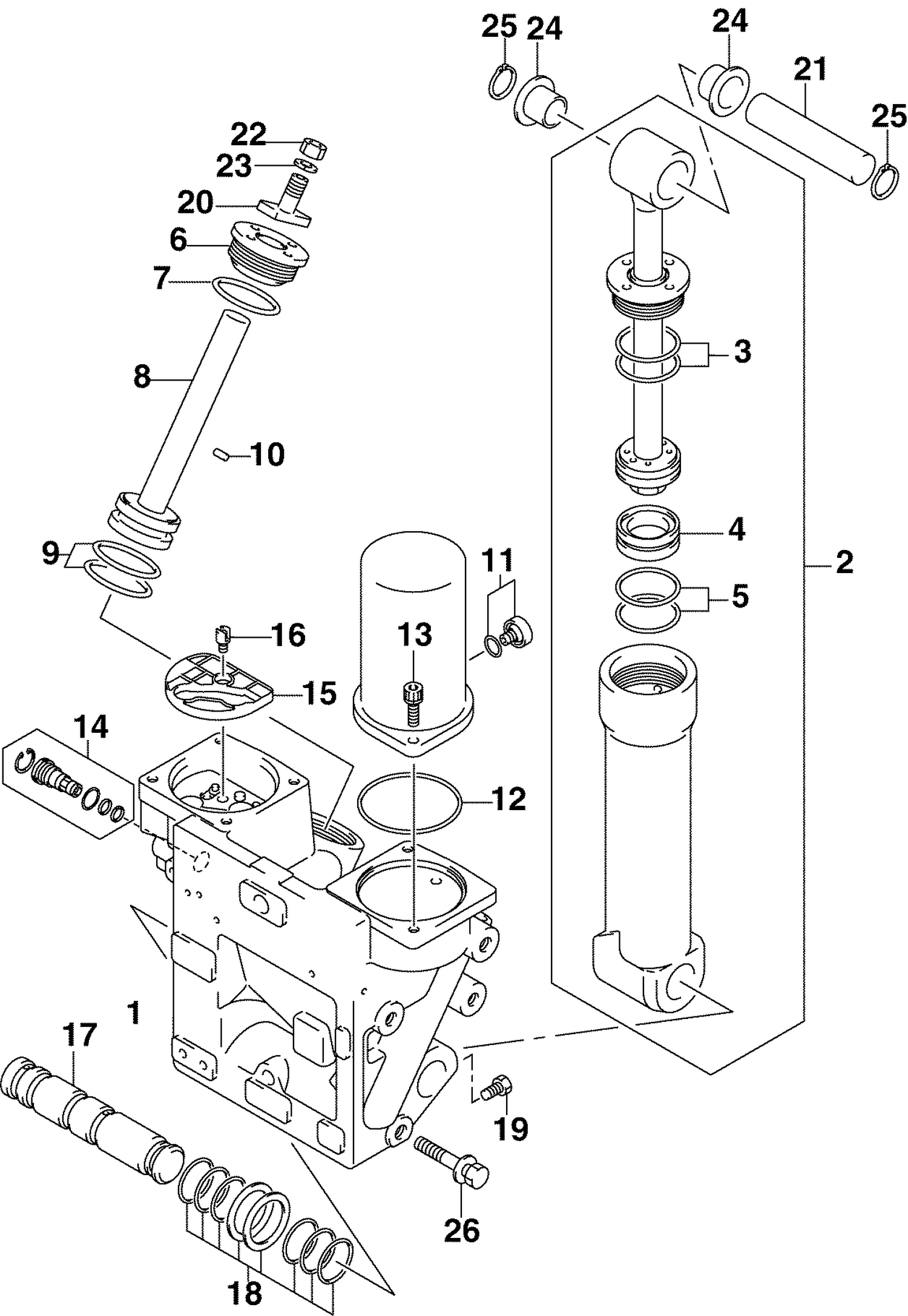

POWER TRIM/TILT CYLINDER ASSEMBLY
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5035723 | MANIFOLD |
| 2 | 5035715 | CYLINDER ASSY |
| 6 | 5035721 | ROD GUIDE |
| 7 | 5035722 | O RING |
| 8 | 5035719 | PISTON / RAM |
| 9 | 5035718 | O RING SET |
| 10 | 5035725 | CHECK VALVE |
| 12 | 5031096 | O RING This part replaces 5035717. |
| 14 | 5032643 | MANUAL VALVE |
| 17 | 5035712 | SHAFT |
| 18 | 5035713 | O RING SET |
| 19 | 5035714 | BOLT |
| 20 | 5035128 | PAD, TRIM CYL RAM |
| 21 | 5035129 | SHAFT, TILT CYL UPPER |
| 22 | 5031219 | NUT |
| 24 | 5034836 | BUSHING, TILT CYL UPPER |
| 25 | 5034839 | CIRCLIP, TILT CYL UPPER SHAFT |
| 26 | 5034784 | BOLT, ENG SET NO,2 (L:50mm) |
