| Ref | Part Number | Description |
|---|
| BD |
409012100 |
Female Terminal |
| BD |
710000080 |
Cap |
| BD |
710000081 |
Female Housing, 6 Circuits |
| BD |
710000402 |
Wire Seal |
| BN1 |
710000913 |
Terminal |
| BN2 |
278001392 |
Open Barrel Terminal |
| BP1 |
278001392 |
Open Barrel Terminal |
| CC |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| CC |
710000274 |
Female Terminal |
| CC |
710000848 |
Lock |
| CC |
710000849 |
Male Housing, 6 Circuits |
| CC |
710001635 |
Terminal |
| CI |
515175801 |
Female Housing, 24 Circuits |
| CI |
515175802 |
Retainer Block |
| CI |
515175803 |
Wire Seal |
| CI |
515175812 |
Plug |
| CI |
710000399 |
Female Housing |
| CI |
710001131 |
Female Terminal |
| CRD |
409012100 |
Female Terminal |
| CRD |
710000402 |
Wire Seal |
| CRG |
409012100 |
Female Terminal |
| CRG |
710000402 |
Wire Seal |
| D11 |
Not |
Available As Spare Part - Diode |
| D2 |
409012700 |
Diode |
| D5 |
409012700 |
Diode |
| D6 |
409012700 |
Diode |
| DB |
278001665 |
Female Terminal |
| DB |
278002896 |
Housing, 6 Circuits |
| DB |
293000052 |
Sealing Cap |
| DB |
515175678 |
Male Wedge, 6 Circuits |
| DC1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DC2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DC3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DC3 |
515175231 |
Female Terminal |
| DC3 |
515175658 |
Female Housing, 2 Circuits |
| DC3 |
710000667 |
Male Housing, 2 Circuits |
| DC5 |
278000216 |
Wire Seal |
| DC5 |
278000217 |
Female Housing, 2 Circuits |
| DC5 |
278000220 |
Male Connector, 2 Circuits |
| DC5 |
278000223 |
Female Terminal |
| DC5 |
278001065 |
Wire Seal |
| DC5 |
710000992 |
Clip |
| DC6 |
278000216 |
Wire Seal |
| DC6 |
278000217 |
Female Housing, 2 Circuits |
| DC6 |
278000220 |
Male Connector, 2 Circuits |
| DC6 |
278000223 |
Female Terminal |
| DC6 |
278001065 |
Wire Seal |
| DC6 |
710000992 |
Clip |
| DPS1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DPS1 |
710001114 |
Cap |
| DPS1 |
710001161 |
Housing |
| DPS1 |
710001162 |
Lock |
| DPS1 |
710001163 |
Wire Seal |
| DPS1 |
710001164 |
Female Terminal |
| DPS1 |
710001225 |
Cap |
| DPS2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DPS2 |
278001325 |
Fuse Holder |
| DPS2 |
710000113 |
Female Terminal |
| DPS3 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| DPS3 |
710001157 |
Housing |
| DPS3 |
710001323 |
Lock |
| FP |
278001013 |
Wire Seal |
| FP |
278001014 |
Female Terminal |
| FP |
409209700 |
Female Housing, 4 Circuits |
| FP |
515176621 |
Wire Seal |
| FP |
710001340 |
Female Terminal |
| FRR |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| FRR |
515175231 |
Female Terminal |
| FRR |
515175658 |
Female Housing, 2 Circuits |
| FT |
278000217 |
Female Housing, 2 Circuits |
| FT |
278000218 |
Wire Seal |
| FT |
409004300 |
Male Terminal |
| HIC1 |
710001221 |
LOCK - Call your local BRP dealership |
| HIC1 |
710001225 |
Cap |
| HIC1 |
710001226 |
Housing |
| HIC1 |
710001228 |
Terminal |
| HIC1 |
710001229 |
Terminal |
| HIC1 |
710001230 |
Seal |
| HIC1 |
710001233 |
Seal |
| HIC2 |
710001221 |
LOCK - Call your local BRP dealership |
| HIC2 |
710001225 |
Cap |
| HIC2 |
710001228 |
Terminal |
| HIC2 |
710001229 |
Terminal |
| HIC2 |
710001233 |
Seal |
| HIC2 |
710001332 |
Seal Wire |
| HIC2 |
710001928 |
Housing |
| HIC8 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| HIC8 |
278001007 |
Insulated Sheath |
| HIC8 |
278001009 |
Female Terminal |
| HICA |
710001221 |
LOCK - Call your local BRP dealership |
| HICA |
710001225 |
Cap |
| HICA |
710001229 |
Terminal |
| HICA |
710001233 |
Seal |
| HICA |
710001332 |
Seal Wire |
| HICA |
710001928 |
Housing |
| MG1 |
409011300 |
Male Terminal |
| MG1 |
409012300 |
Seal |
| MG1 |
710000080 |
Cap |
| MG1 |
710000402 |
Wire Seal |
| MG1 |
710000835 |
Male Terminal Housing, 6 Circuits |
| MG2 |
409012100 |
Female Terminal |
| MG2 |
409012300 |
Seal |
| MG2 |
710000081 |
Female Housing, 6 Circuits |
| MG2 |
710000402 |
Wire Seal |
| PDB |
278002578 |
Female Terminal |
| PDB |
710001427 |
Wire Seal |
| PDB |
710002578 |
Housing |
| PDH |
278002578 |
Female Terminal |
| PDH |
710001427 |
Wire Seal |
| PDH |
710002278 |
Housing |
| PDH |
710002279 |
Lock |
| PF1 |
278000999 |
Wire Seal |
| PF1 |
278002172 |
Foam |
| PF1 |
415128501 |
Seal |
| PF1 |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. |
| PF1 |
515176774 |
Relay, 30 AMP |
| PF1 |
515177009 |
Female Terminal |
| PF1 |
515177012 |
Female Terminal |
| PF1 |
710000742 |
Little Fuse, 5 Amperes |
| PF1 |
710000744 |
Little Fuse, 10 Amperes |
| PF1 |
710000745 |
Little Fuse, 15 Ampere |
| PF1 |
710000747 |
Little Fuse, 30 Amperes |
| PF1 |
710000781 |
Fuse Puller |
| PF1 |
710000840 |
Cap |
| PF1 |
710001026 |
Fuse Cover |
| PF1 |
710002590 |
Fuse, 25 Amps |
| PF1 |
710002653 |
FUSE DECAL - Call your local BRP dealership |
| PF1 |
715900824 |
Relay This part replaces 710001778. |
| PF2 |
710001047 |
Fuse, 40 AMP |
| PF2 |
710001200 |
Fuse 30 amp. |
| PF2 |
710001633 |
LOCK - Call your local BRP dealership |
| PF2 |
710001636 |
Terminal |
| PF2 |
710001905 |
Terminal Joint |
| PF2 |
710001996 |
Housing |
| PF21 |
233261494 |
Hex. Flange Elastic Nut M6 |
| PF21 |
710000526 |
Protector Cap |
| PF21 |
710000913 |
Terminal |
| PGB |
278002578 |
Female Terminal |
| PGB |
710001427 |
Wire Seal |
| PGB |
710002578 |
Housing |
| PGH |
278002578 |
Female Terminal |
| PGH |
710001427 |
Wire Seal |
| PGH |
710002278 |
Housing |
| PGH |
710002279 |
Lock |
| PL |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| PL |
515175231 |
Female Terminal |
| PL |
515175658 |
Female Housing, 2 Circuits |
| PRD |
415128501 |
Seal |
| PRD |
710003139 |
HOUSING - Call your local BRP dealership |
| PRG |
415128501 |
Seal |
| PRG |
710003139 |
HOUSING - Call your local BRP dealership |
| RD1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| RD1 |
710000879 |
Female Housing, 3 Circuits |
| RD1 |
710000882 |
Cap |
| RD1 |
710001932 |
Seal |
| RD1 |
710001934 |
Terminal |
| SS1 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| SS1 |
409010300 |
Female Terminal |
| SS2 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| SS2 |
409010300 |
Female Terminal |
| SW1 |
278001007 |
Insulated Sheath |
| SW1 |
710000421 |
Female Terminal |
| SW2 |
278001008 |
Insulated Sheath |
| SW2 |
278002261 |
Female Terminal |
| SW4 |
278000992 |
Open Barrel |
| SWW |
278000273 |
Male Housing, 3 Circuits |
| SWW |
278001065 |
Wire Seal |

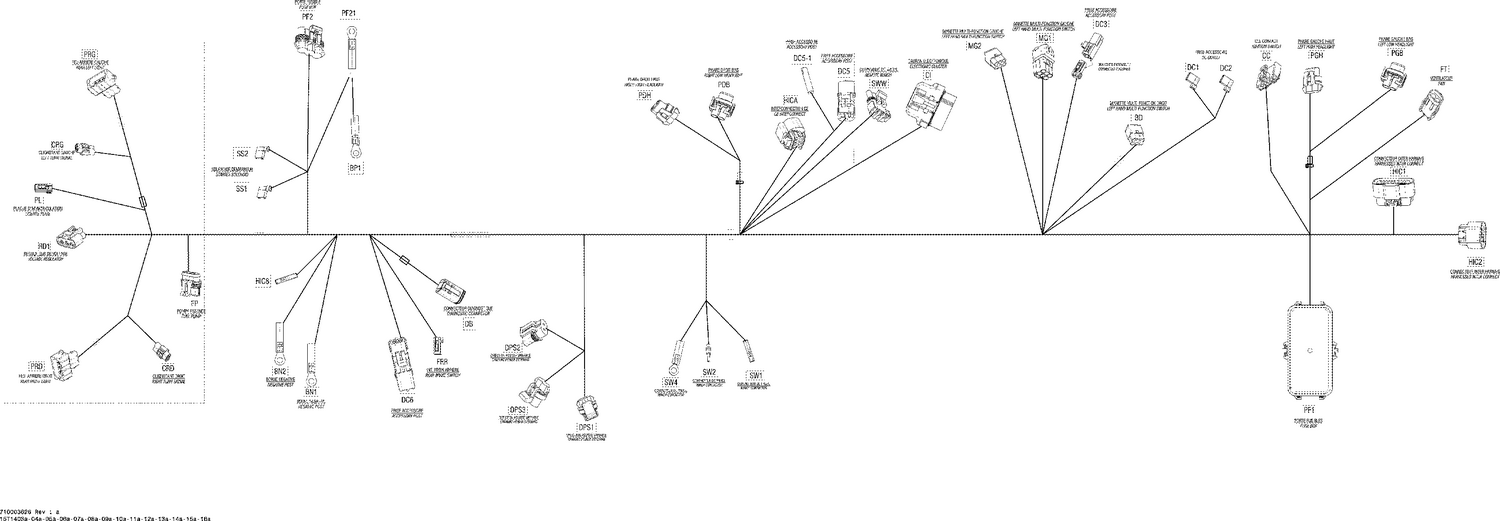

| 1 |
710005005 |
Main Harness This part replaces 710003626. |
| 426 |
Not |
Available As Spare Part - Low Temperature Tubing 1/2" |
| 1365 |
710002896 |
Tie-Rap Clip |
