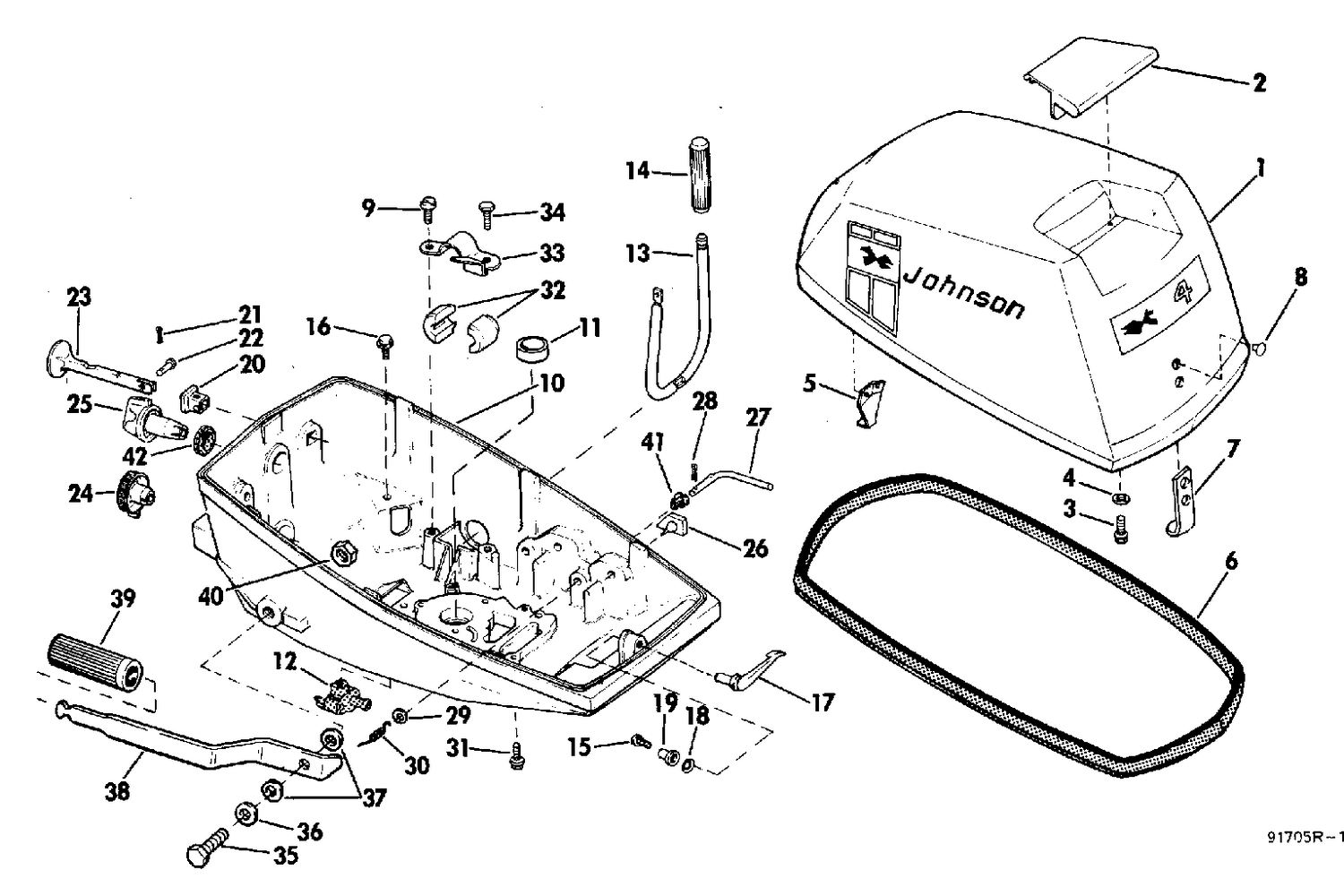

| Ref | Part Number | Description |
|---|
| 1 |
0383162 |
MOTOR COVER ASSEMBLY |
| 2 |
0381165 |
TILT HAND & SCREW ASSY |
| 3 |
0312299 |
VIS, serre-câble |
| 4 |
0306407 |
LOCCKWASHER,Cover latch |
| 5 |
0312828 |
HOOK, front |
| 6 |
0314095 |
SEAL |
| 7 |
0312827 |
HOOK, Rear |
| 10 |
0383835 |
MOTOR COVER,Lower |
| 10 |
0383836 |
MOTOR COVER , LOWER |
| 11 |
0314815 |
BUSHING |
| 12 |
0393334 |
CONNECTEUR, carburant - mâle This part replaces 0376154. |
| 13 |
0312726 |
LEVER, Outer, throttle |
| 14 |
0312768 |
KNOB, Throttle lever |
| 15 |
0302592 |
SCREW |
| 16 |
0309526 |
SCREW |
| 17 |
0312833 |
HANDLE, Latch |
| 18 |
0330995 |
RONDELLE, levier This part replaces 0308371. |
| 19 |
0204444 |
BUSHING |
| 20 |
0312890 |
DETENT CHIKE KNOB |
| 21 |
0301912 |
COTER PIN |
| 22 |
0382778 |
PIN, Solenoid This part replaces 0303738. |
| 23 |
0312508 |
KNOB, Choke |
| 24 |
0312767 |
KNOB, High speed |
| 25 |
0314617 |
ADJUSTING KNOB SLOW SPEED |
| 26 |
0314205 |
GEARCASE PAD |
| 27 |
0313000 |
RETAINER,Gearcase |
| 30 |
0205703 |
SPRING |
| 31 |
0310227 |
CLIP, Banding |
| 32 |
0312856 |
FRICTION CYLINDER |
| 33 |
0312857 |
CAP, Friction |
| 34 |
0306419 |
SCREW |
| 35 |
0312876 |
SCREW, Steering |
| 36 |
0312874 |
SPRING WASHER, Strg. handle |
| 38 |
0205973 |
HANDLE, Steering |
| 39 |
0115220 |
GRIP HANDLE, Steering This part replaces 0313181. |
| 40 |
0309602 |
LOCK NUT, Steering handle |
| 41 |
0205706 |
BUSHING, Retainer to motor cover |
| 42 |
0312816 |
GROMMER, Knob |
| 0383490 |
0383490 |
OWNERS MANUAL,Weedless |
| 0383804 |
0383804 |
DECAL SET |
