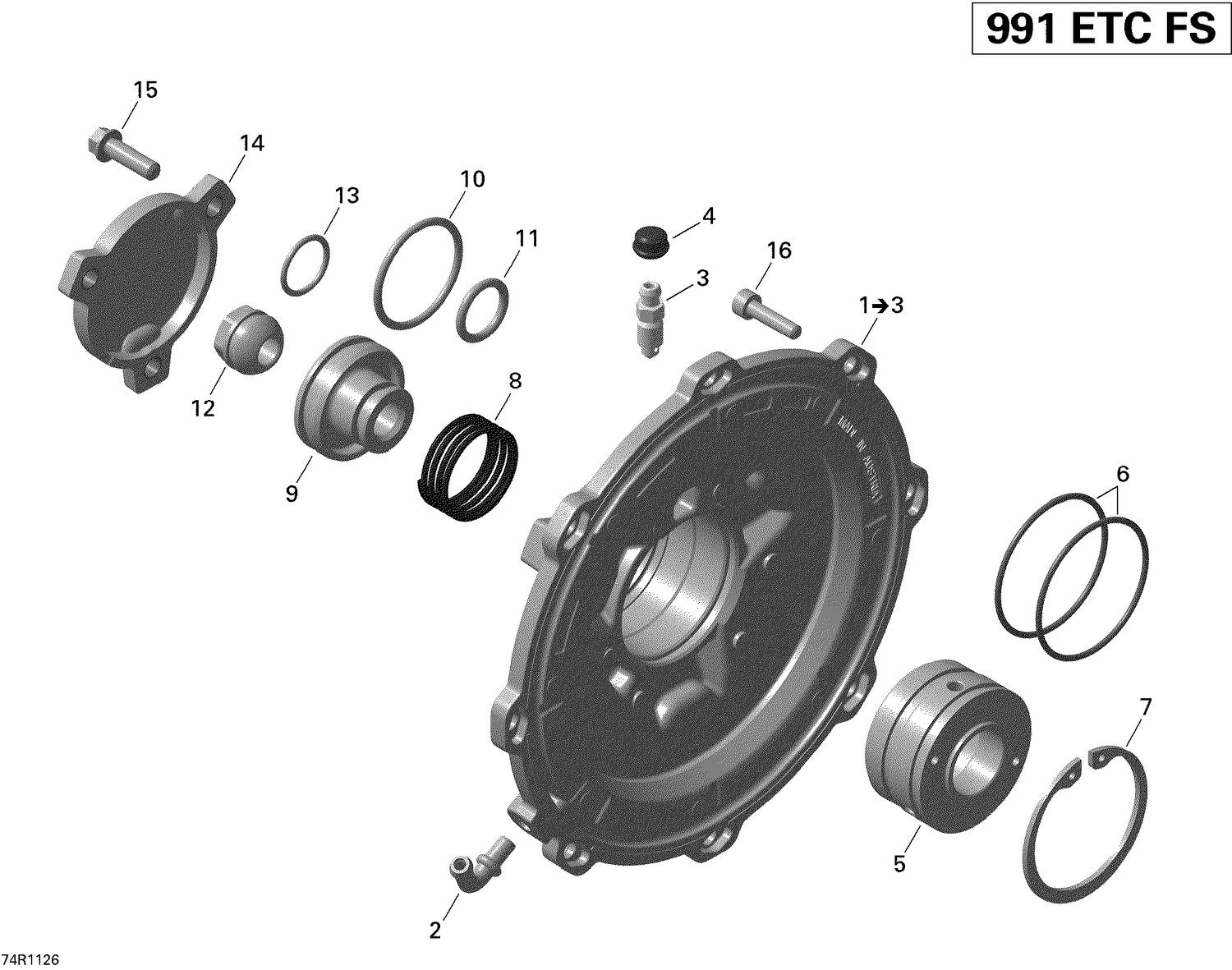

05- Diaphragm Cover
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 2 | Not | Available As Spare Part - Elbow Fitting |
| 3 | 420656470 | VALVE - Call your local BRP dealership |
| 4 | 420460575 | Rubber Cap This part replaces 420460570. |
| 5 | 420233190 | Antifriction Bushing |
| 6 | 420950966 | O-Ring |
| 7 | 420245190 | Retaining Ring |
| 8 | 420238740 | Compression Spring |
| 9 | 420656122 | Piston |
| 10 | 420431441 | O-Ring |
| 11 | 420431301 | O-Ring |
| 12 | 420242641 | Nut M10 X 1 |
| 13 | 420631890 | O-Ring |
| 14 | 420611710 | COVER - Call your local BRP dealership |
| 15 | 420440207 | Torx Flange Screw M6 X 20 |
