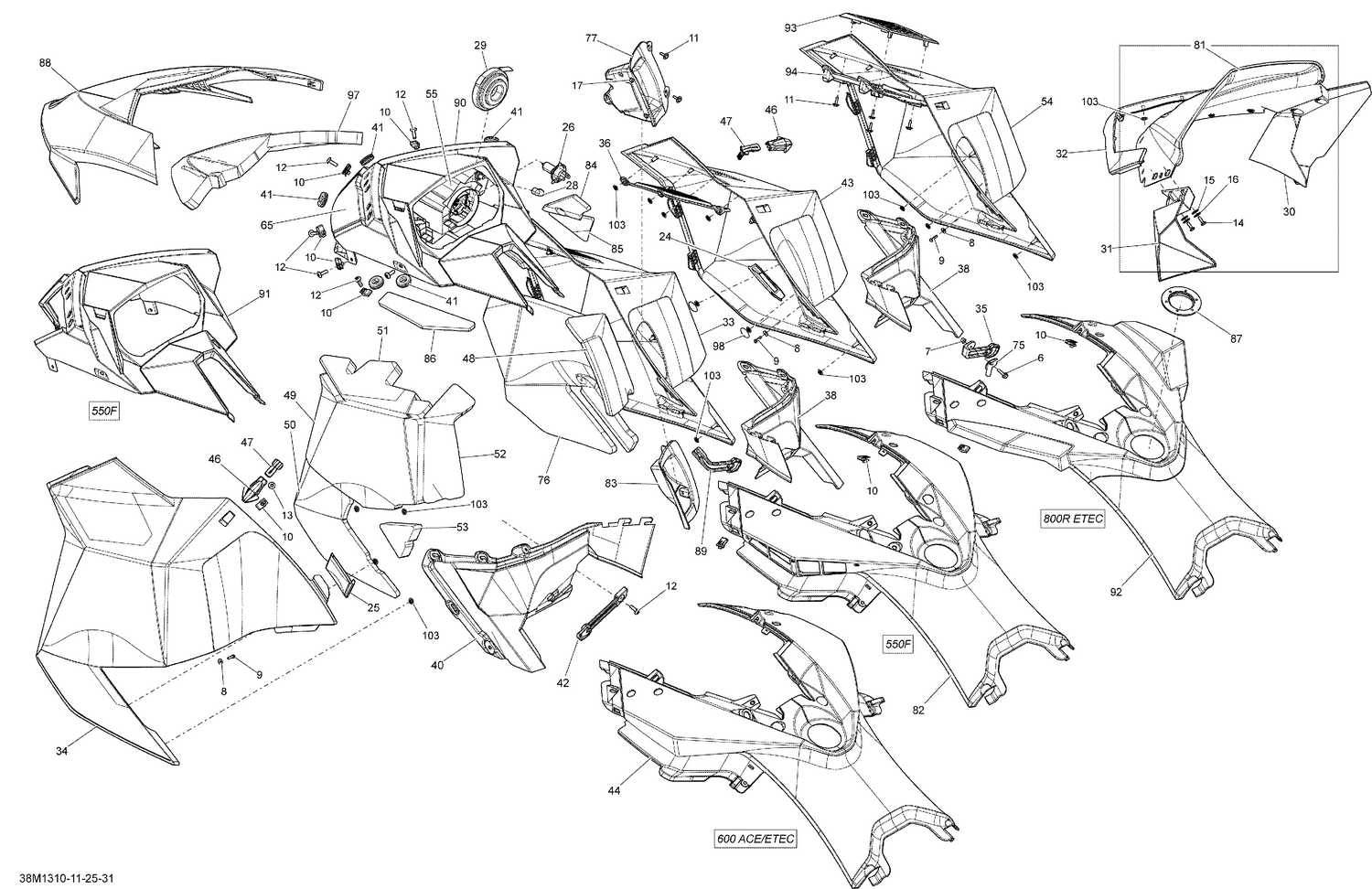

09- Hood, Windshield And Console
Parts (52)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 250000792 | Torx Screw M5 X 20 This part replaces 250000465. |
| 7 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 8 | 234042600 | Flat Washer 4 mm, Stainless |
| 9 | 241141660 | Hex. Flange Screw K40 X 16 |
| 10 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 11 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 12 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 13 | 250000721 | Torx Truss Screw M6 X 16 This part replaces 250000129. |
| 14 | 250000720 | Torx Screw K50 X 16 This part replaces 250000146. |
| 15 | 250200024 | Rubber Washer 5 mm |
| 16 | 250200025 | Washer M5 |
| 17 | 275500241 | Black, Cap |
| 24 | 513033471 | RH Panel Clip |
| 25 | 513033472 | LH Panel Clip |
| 26 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 28 | 515176498 | Cap |
| 29 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 30 | 517303604 | RH Air Deflector |
| 31 | 517303605 | LH Air Deflector |
| 32 | 517303607 | Windshield Support |
| 34 | 517304030 | Deep Black, LH Panel |
| 35 | 517303612 | RH Panel Latch |
| 36 | 517303622 | Grille |
| 38 | 517303671 | Deep Black RH Moulding Panel |
| 40 | 517303673 | Deep Black, LH Moulding Panel |
| 41 | 517303756 | Grommet |
| 42 | 517303808 | LH Panel Latch |
| 43 | 517304210 | PANEL_BODY RH B-160 - Call your local BRP dealership |
| 44 | 517303924 | CONSOLE B-160 - Call your local BRP dealership |
| 46 | 860200239 | Black Latch Kit |
| 47 | 517303981 | Panel Latch |
| 48 | 517304884 | RH Panel Rear Foam |
| 49 | 517304887 | LH Panel Center Foam |
| 50 | 517304888 | LH Panel Lower Foam |
| 51 | 517304889 | LH Panel Upper Foam |
| 52 | 517304890 | LH Panel Rear Foam |
| 53 | 517304891 | Foam |
| 55 | 517304194 | RH Headlamp Ass'y |
| 65 | 517304195 | LH Headlamp Ass'y |
| 75 | 517304221 | Latch Support |
| 76 | 517304883 | RH Center Foam |
| 77 | 517304322 | Black, RH Console |
| 81 | 517304395 | Windsheld 375mm |
| 81 | 860200478 | Windsheld Kit 375 |
| 87 | 517304518 | Console Nut |
| 88 | 517304530 | Deep Black Hood |
| 90 | 517305030 | GAUGE SUPPORT - Call your local BRP dealership |
| 92 | 517304639 | CONSOLE - Call your local BRP dealership |
| 93 | 517304763 | EXTERNAL GRILL - Call your local BRP dealership |
| 94 | 517304764 | INTERNAL GRILL - Call your local BRP dealership |
| 97 | 517304913 | Hood Foam |
| 98 | 518325560 | Adhesive Patch |
