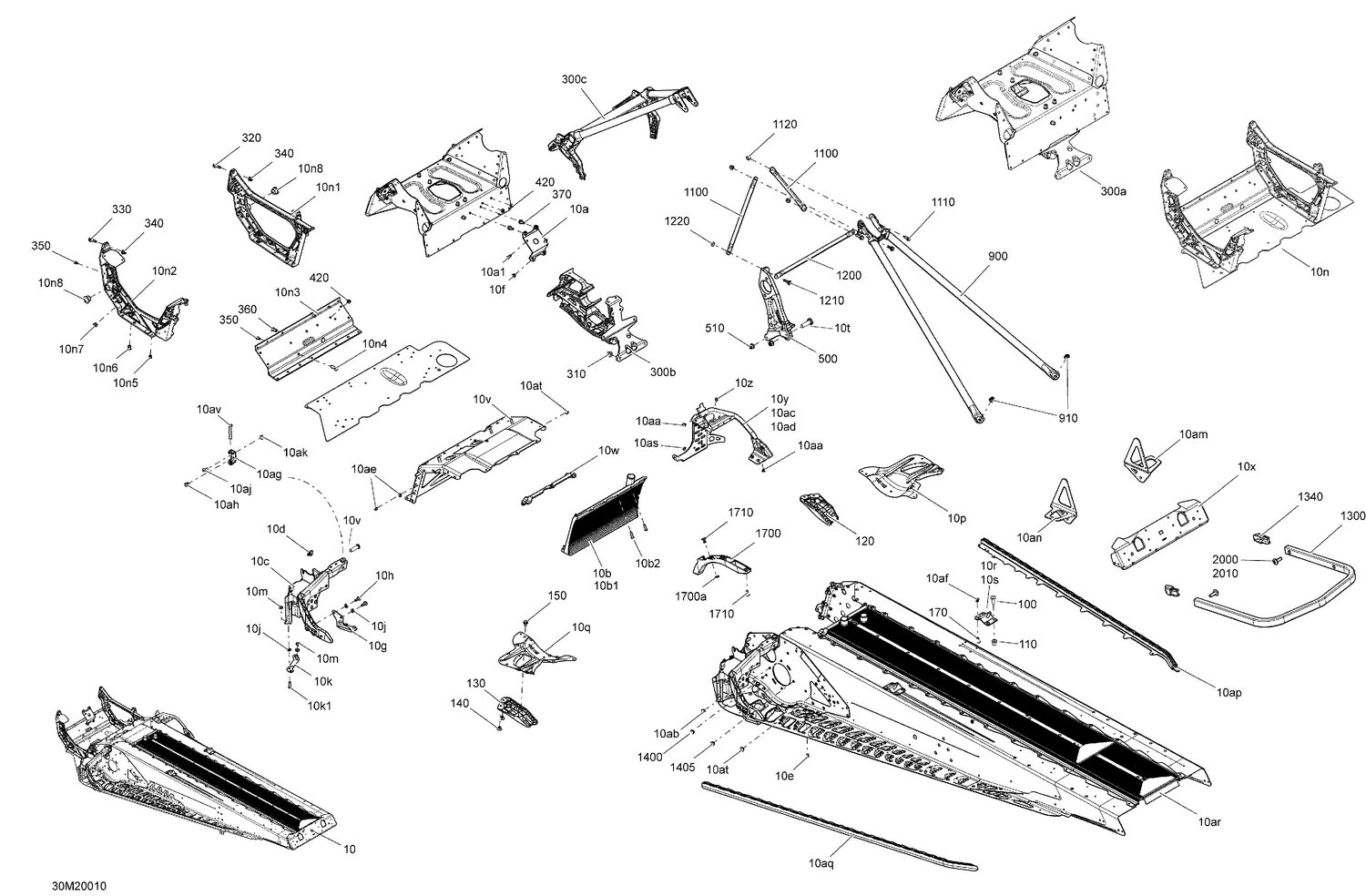

| Ref | Part Number | Description |
|---|
| 10a1 |
250300027 |
Clinch Stud M6 X 20 |
| 10aa |
293730042 |
Full Moon Dart 5 mm |
| 10ab |
293150203 |
Rivet Avibulb 3/16 |
| 10ac |
390909100 |
Avex Rivet |
| 10ad |
293150144 |
Stavex Rivet |
| 10ae |
293150146 |
Henrob Rivet |
| 10af |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10ag |
518326961 |
U-Attach |
| 10ah |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10aj |
250000534 |
Tork Screw M6 X 16 |
| 10ak |
233061414 |
Hex. Flange Nut M6 |
| 10am |
518328790 |
LH Bracket |
| 10an |
518328789 |
RH Bracket |
| 10ap |
518325377 |
RH ROLLER - Call your local BRP dealership |
| 10aq |
518325378 |
LH Roller |
| 10as |
293150144 |
Stavex Rivet |
| 10at |
293150203 |
Rivet Avibulb 3/16 |
| 10av |
250000535 |
Torx Screw M8 X 55 |
| 10b1 |
518326485 |
Front Radiator This part replaces 518326486. |
| 10b2 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518326820 |
LH Stirup |
| 10d |
250000958 |
Panel Nut M5 X 0.8 |
| 10e |
293150203 |
Rivet Avibulb 3/16 |
| 10f |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10g |
518326960 |
Support |
| 10h |
250000536 |
Tork Screw M6 X 18 |
| 10j |
250200039 |
Flat Washer |
| 10k1 |
250300027 |
Clinch Stud M6 X 20 |
| 10m |
232561414 |
Elastic Stop Nut M6 |
| 10n1 |
518326795 |
RH Member |
| 10n2 |
518326796 |
LH Member |
| 10n4 |
250300038 |
Clinch Stud |
| 10n5 |
293150144 |
Stavex Rivet |
| 10n6 |
293150120 |
Hemlock Rivet 6.5 mm |
| 10n7 |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10n8 |
505073317 |
Leg Cushion |
| 10p |
518324874 |
RH Reinforcement |
| 10q |
518324875 |
LH Reinforcement |
| 10r |
518325973 |
RH Rear Base |
| 10t |
250300038 |
Clinch Stud |
| 10v |
250300027 |
Clinch Stud M6 X 20 |
| 10w |
518326656 |
Seal |
| 10x |
518327105 |
Rear Cap |
| 10z |
390909200 |
Avex Rivet |
| 100 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 110 |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 120 |
518325782 |
RH Deflector, Black Polypropylene |
| 130 |
518325783 |
LH Deflector, Black Polypropylene |
| 140 |
293150104 |
Pop Rivet 3/16" |
| 150 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 170 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 300b |
518327487 |
Front Suspension Support |
| 300c |
518326970 |
Front Member |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 420 |
293730053 |
Black Dart 5 mm |
| 500 |
518328346 |
Pulley Support |
| 510 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 900 |
518326559 |
Rear Member |
| 910 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1210 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1220 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1300 |
518324980 |
Clear Rear Bumper |
| 1340 |
520000567 |
Full Moon Cap |
| 1400 |
293730041 |
Full Moon Dart 8 mm |
| 1405 |
293730059 |
Full Moon Dart 10 mm |
| 1700a |
517124300 |
Washer |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 2000 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
