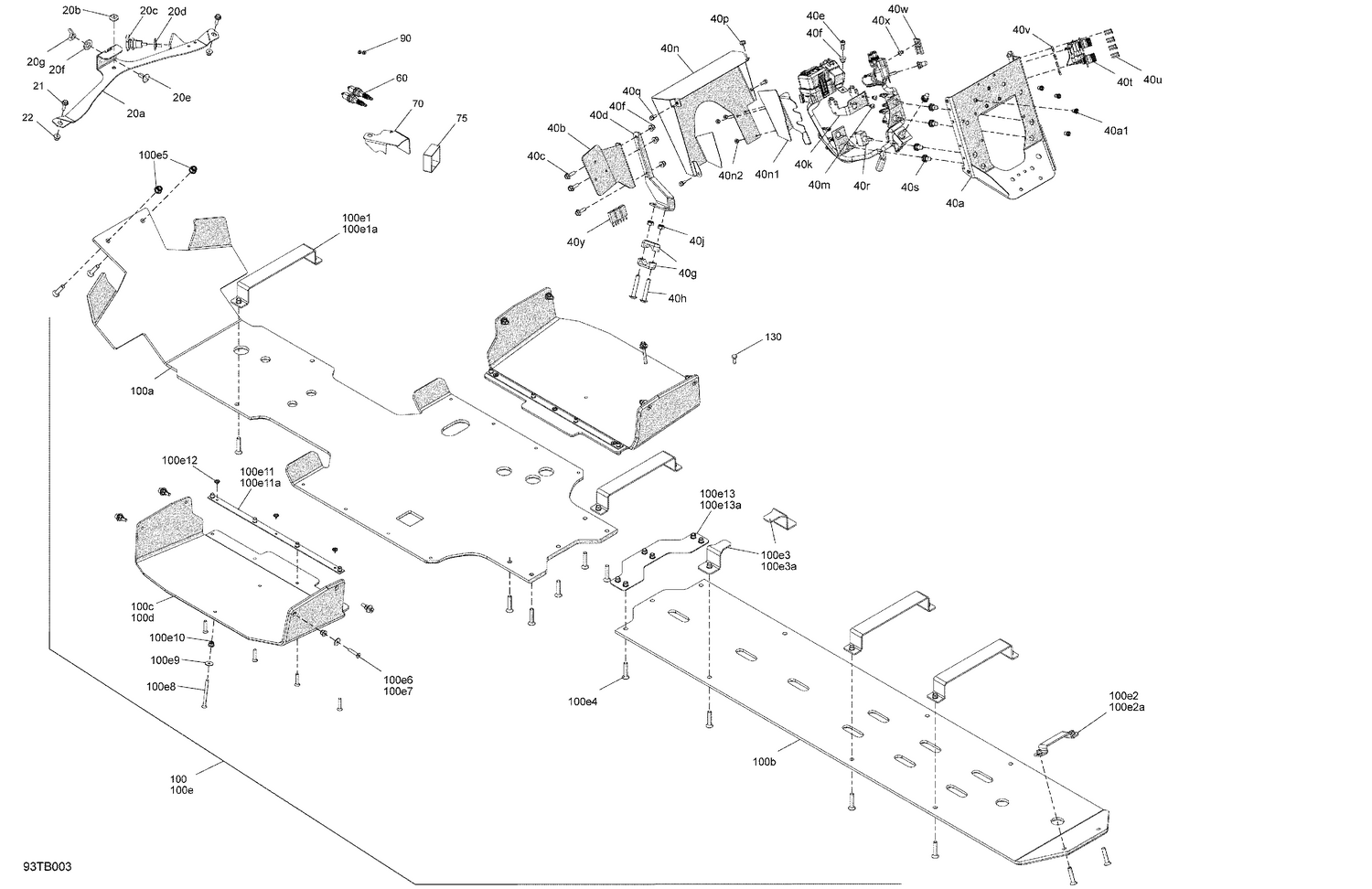

09- Miscellaneous - Options
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 20b | 605452114 | Plug |
| 20c | 42207 | Plug |
| 20d | 42033 | Ground washer |
| 20e | 207782044 | Carriage Bolt, M8 X 20 |
| 20f | 234021410 | Flat Washer 12 mm |
| 20g | 232688464 | Wing Nut M8 |
| 21 | 207662054 | Hex. Flange Screw M6 X 20 |
| 22 | 233261494 | Hex. Flange Elastic Nut M6 |
| 40a1 | 605636003 | Clinch Nut M6 Hexsert |
| 40b | 708302255 | GPS Bracket 6X6 |
| 40c | 207662054 | Hex. Flange Screw M6 X 20 |
| 40d | 708302483 | LH Support |
| 40e | 205561644 | Socket Screw M6 X 16, Scotch Grip |
| 40f | 233261494 | Hex. Flange Elastic Nut M6 |
| 40g | 709401799 | Steering Support |
| 40h | 250000761 | Torx Truss Screw M8 X 50 |
| 40j | 232581414 | Hex. Elastic Stop Nut M8 |
| 40k | 708302439 | Fusebox Support 6X6 |
| 40m | 390909100 | Avex Rivet |
| 40n1 | 708302647 | U-Cover |
| 40n2 | 390909200 | Avex Rivet |
| 40p | 605628001 | Grommet (1=10pcs) |
| 40q | 210251150 | Hex Flange Screw M5 X 11 |
| 40r | 410110700 | Heat Grip Switch |
| 40s | 515175281 | Switch Cover |
| 40t | 515178856 | Power Outlet |
| 40u | 205431660 | Socket Head Screw M3 X 16 |
| 40v | 232531600 | Elastic Stop Nut M3 |
| 40w | 270000141 | Clip |
| 40x | 293150144 | Stavex Rivet |
| 40y | 278003645 | Automatic Fuse 10 Amps |
| 60 | 415129449 | Spark Plug NGK DCPR8EIX |
| 70 | 708302589 | Heat Switch Bracket 6x6 |
| 75 | 520900044 | Heat Switch Cover |
| 90 | 232541484 | Elastic Stop Nut M4 |
| 100a | 502007968 | Front Skid Plate |
| 100b | 502007683 | Skid Plate Rear 6x6 Max Pro |
| 100c | 502007452 | LH Footrest Skid Plate 6X6 |
| 100d | 502007453 | RH Footrest Skid Plate 6X6 |
| 100e10 | 233261494 | Hex. Flange Elastic Nut M6 |
| 100e11a | 605636003 | Clinch Nut M6 Hexsert |
| 100e12 | 250000736 | Screw-tapp. Fl. Hd. Ph. 4.2 X 9.5 |
| 100e13a | 250100065 | Clinching Nut Hexert M8 |
| 100e1a | 250100065 | Clinching Nut Hexert M8 |
| 100e2a | 250100065 | Clinching Nut Hexert M8 |
| 100e3a | 250100065 | Clinching Nut Hexert M8 |
| 100e4 | 250001129 | Screw-socket Ctsk.din.7991 |
| 100e5 | 233281414 | Hex. Flange Elastic Nut M8 |
| 100e6 | 205363056 | Screw-socket Hd.ctsk.din.7991 |
| 100e7 | 205362556 | Screw-Socket Hd.ctsk.m6 X 25 |
| 100e8 | 205367056 | Screw-socket Hd.ctsk.din.7991 |
| 100e9 | 20117 | Washer |
| 130 | 207161670 | Hex Screw M6 X 16 |
