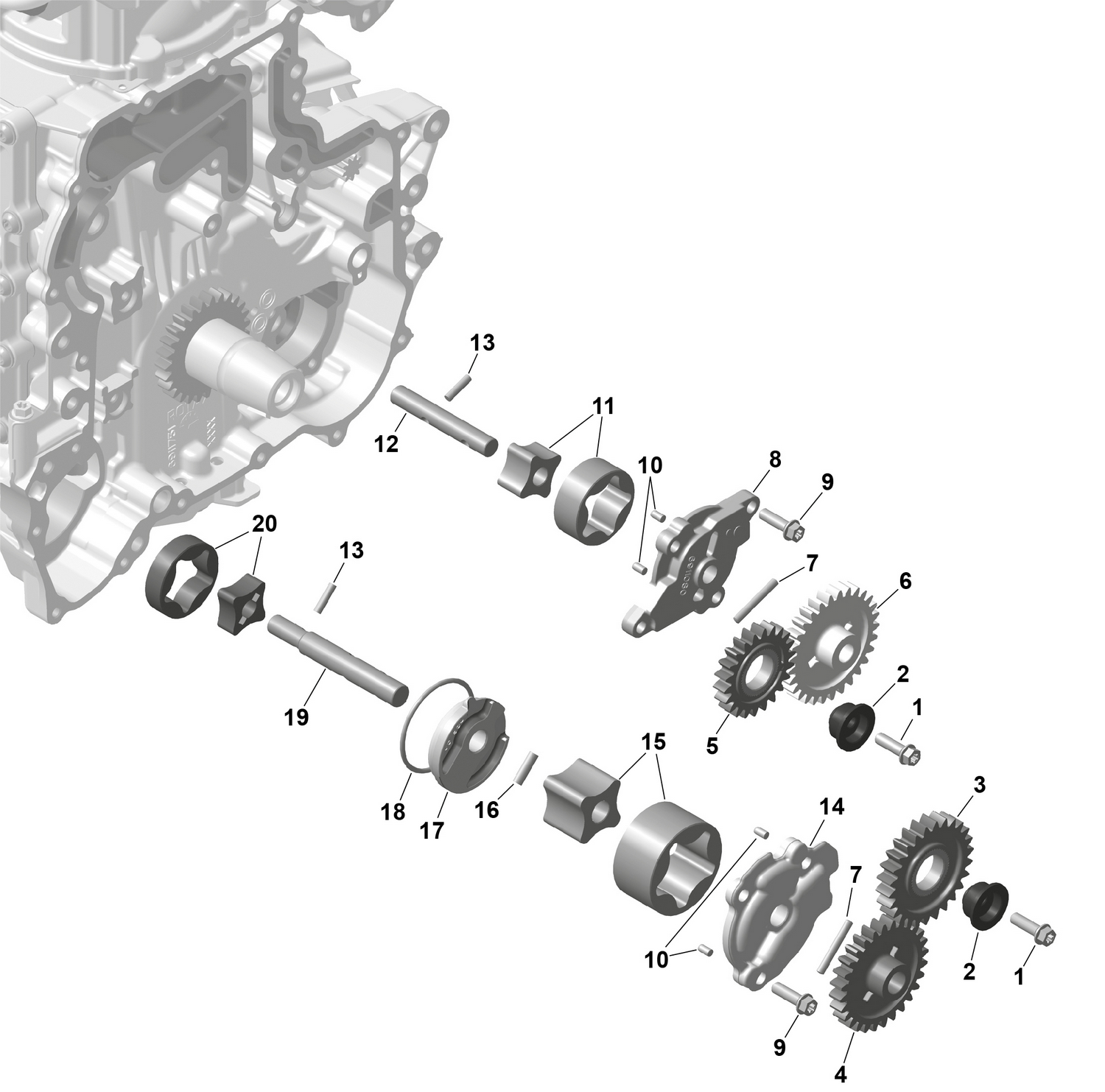

01- ROTAX - Oil Pump
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440207 | Torx Flange Screw M6 X 20 |
| 2 | 420947394 | Spacer |
| 3 | 420835321 | Idle Gear, 26 Teeth |
| 4 | 420834887 | Oil Pump Gear, 28 Teeth |
| 5 | 420835400 | Gear 22 Teeths |
| 6 | 420834882 | Oil Pump Gear, 29 Teeth |
| 7 | 420232432 | Needle Pin |
| 8 | 420911080 | Oil Pump Cover |
| 9 | 420440207 | Torx Flange Screw M6 X 20 |
| 10 | 420929075 | Needle Pin |
| 11 | 420956278 | Oil Pump Rotor |
| 12 | 420820122 | Oil Pump Shaft |
| 13 | 420232732 | Needle Pin |
| 14 | 420611980 | Oil Pump Cover This part replaces 420611982. |
| 15 | 420256831 | Oil Pump Rotor |
| 16 | 420632221 | Needle Pin |
| 17 | 420611985 | Oil Pump Cover |
| 19 | 420837917 | Oil Pump Shaft |
