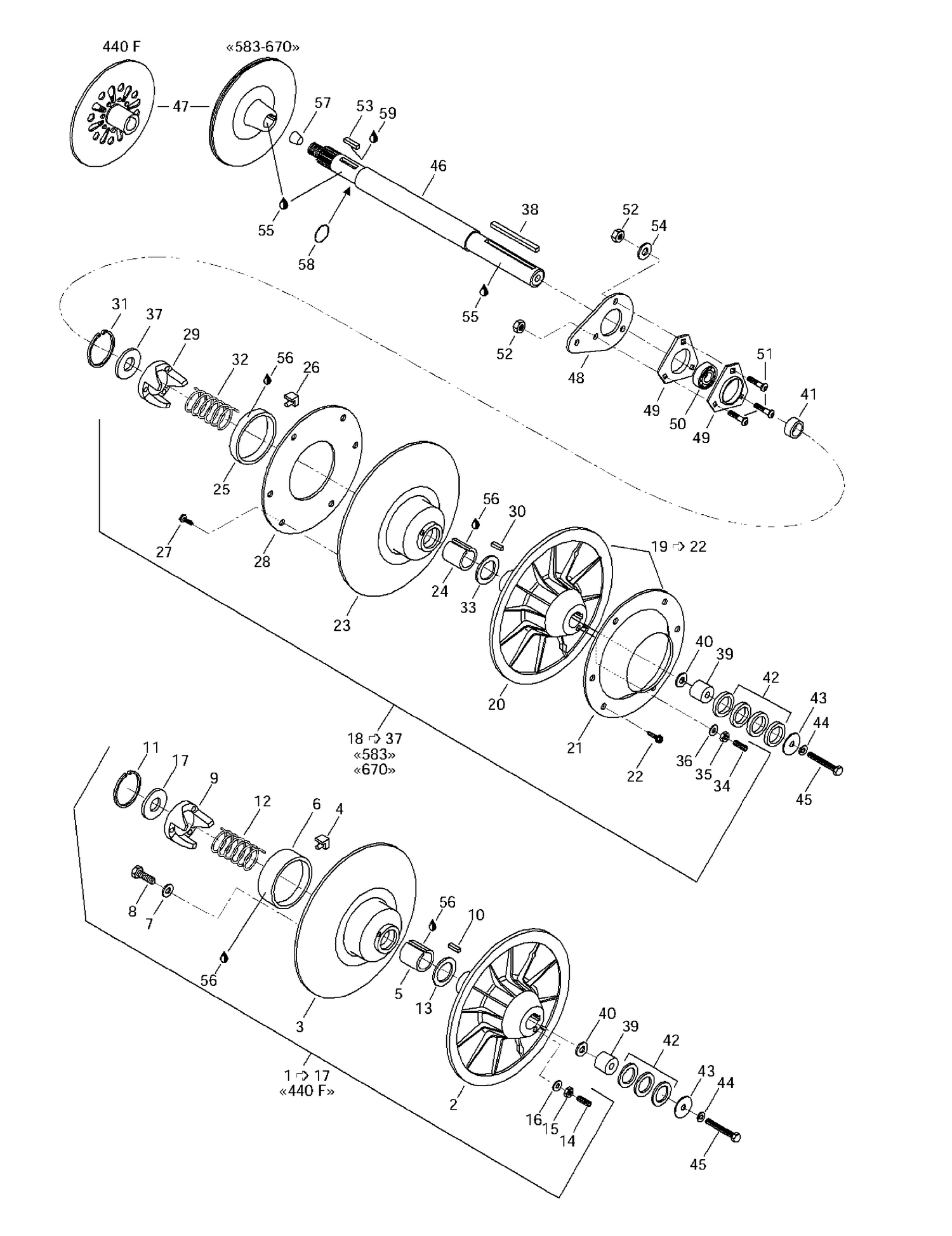

| Ref | Part Number | Description |
|---|
| 38 |
414581300 |
Key |
| 40 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 42 |
504108200 |
SHIM - Call your local BRP dealership |
| 43 |
517078700 |
WASHER - Call your local BRP dealership |
| 44 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 48 |
501022300 |
Spacer |
| 49 |
501025000 |
FLANGE - Call your local BRP dealership |
| 51 |
732601156 |
Allen Screw M8 x 25 |
| 52 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 53 |
507021300 |
KEY - Call your local BRP dealership |
| 54 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 55 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 56 |
413703100 |
Loctite 609, 10 ml |
