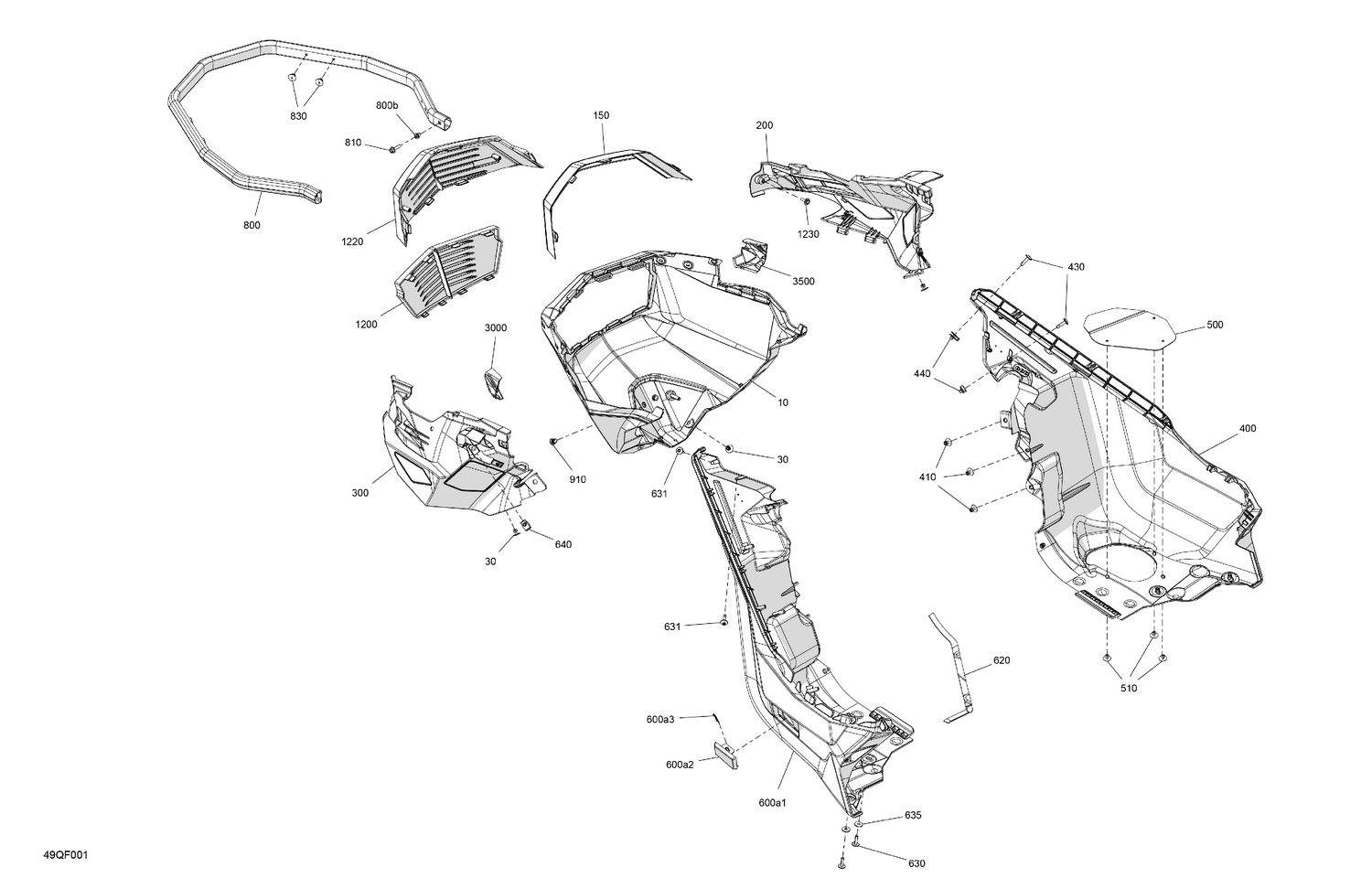

| Ref | Part Number | Description |
|---|
| 10 |
502008660 |
Bright White, Front Bottom Pan |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 150 |
502008387 |
Neo Yellow, Central Trim |
| 200 |
502008505 |
Bright White, RH Bottom Pan Cap |
| 300 |
502008506 |
Bright White, LH Bottom Pan Cap |
| 400 |
502008756 |
Bright White, RH Bottom Pan |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 500 |
502008451 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 600a1 |
502008485 |
Bright White, LH Bottom Pan |
| 600a2 |
502008486 |
Bright White, Bottom Pan Door |
| 600a3 |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 800b |
293450268 |
Insert M5 X 0.8 |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 910 |
518321954 |
Panel Fastener |
| 1200 |
502008245 |
Lower Prefilter Grille |
| 1220 |
502008736 |
Upper Grille Prefilter |
| 1230 |
250000725 |
Screw M4 X 16 |
| 3000 |
502008498 |
Bright White, LH Front Cap |
