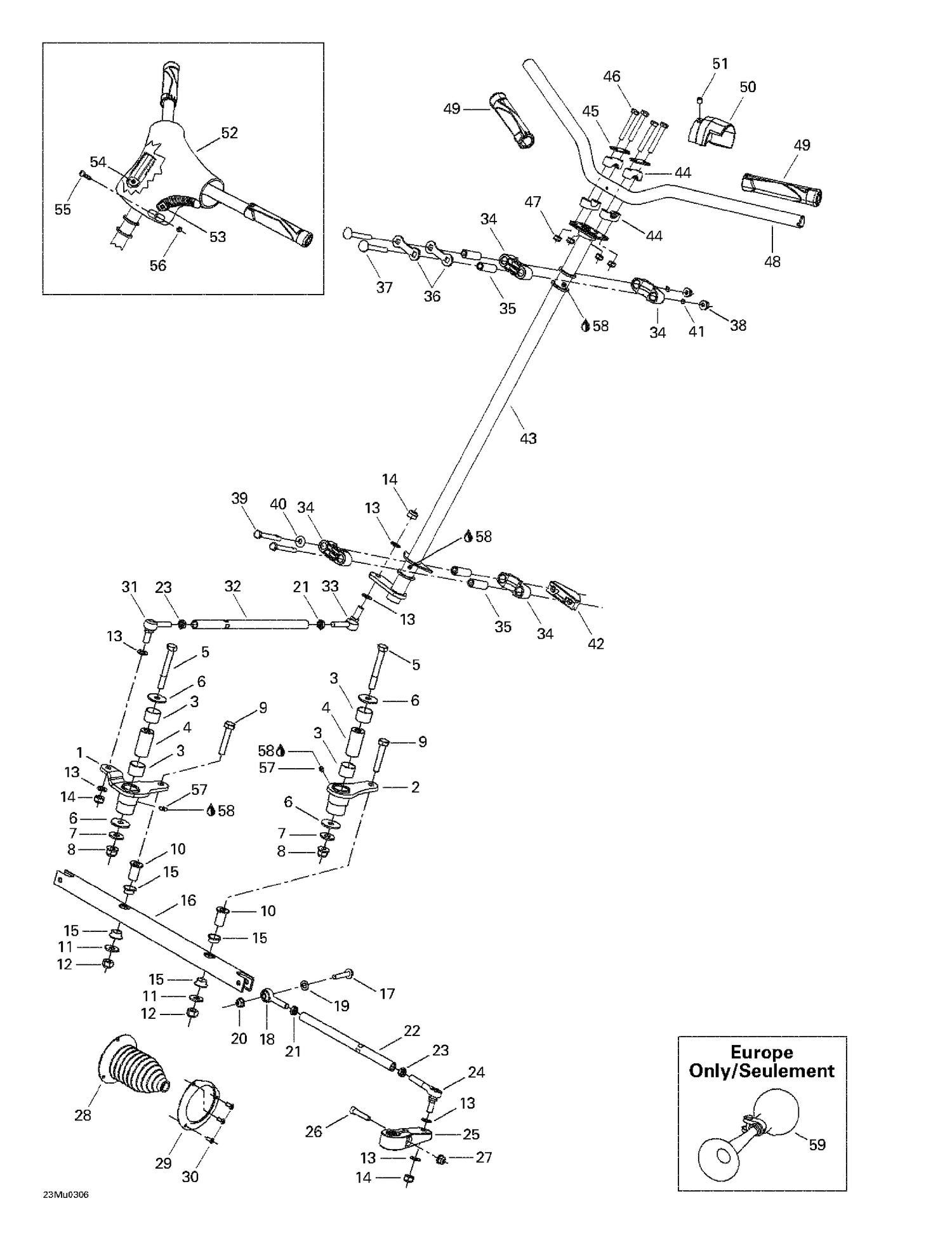

| Ref | Part Number | Description |
|---|
| 1 |
506151360 |
RH SWIVEL ARM - Call your local BRP dealership |
| 2 |
506151623 |
LH SWIVEL ARM - Call your local BRP dealership |
| 3 |
506149900 |
BUSHING SWIVEL - Call your local BRP dealership |
| 4 |
506150100 |
PIVOT SWIVEL - Call your local BRP dealership |
| 5 |
207008086 |
Hex. Screw M10 X 80 |
| 6 |
506150000 |
Washer 10 mm |
| 7 |
250200014 |
Flat Washer M10 This part replaces 506151251. |
| 8 |
250100105 |
Flange Nut M10 This part replaces 732610084. |
| 9 |
207005544 |
Hex. Screw M10 X 55 |
| 10 |
506147300 |
BAR PIVOT - Call your local BRP dealership |
| 11 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
233601416 |
Elastic Locking Nut M10 X 1.5 |
| 13 |
503175800 |
Washer |
| 14 |
232501416 |
Elastic Flange Nut M10 |
| 15 |
503191555 |
Swivel Bushing This part replaces 506150200. |
| 16 |
506151362 |
SWIVEL BAR - Call your local BRP dealership |
| 17 |
207684044 |
Hex. Flange Screw M8 X 40 |
| 18 |
506151496 |
LH BALL JOINT - Call your local BRP dealership |
| 19 |
506151252 |
Washer |
| 20 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 21 |
250100016 |
LH Threaded Hex. Jam Nut M10 |
| 22 |
506151728 |
TIE-ROD - Call your local BRP dealership |
| 24 |
506151491 |
Ball Joint |
| 25 |
506145800 |
RH STEERING ARM - Call your local BRP dealership |
| 26 |
205083544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 27 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 28 |
570070500 |
TIE-ROD CAP - Call your local BRP dealership |
| 29 |
506151100 |
RETAINER RING - Call your local BRP dealership |
| 30 |
390402300 |
Pop Rivet 3/16" |
| 31 |
506151492 |
RH BALL JOINT - Call your local BRP dealership |
| 32 |
506151375 |
TIE-ROD - Call your local BRP dealership |
| 33 |
506151845 |
LH JOINT BALL - Call your local BRP dealership This part replaces 506151495. |
| 34 |
506150400 |
Housing Half |
| 35 |
506150500 |
Housing Bushing |
| 36 |
506150600 |
Stopper Plate |
| 37 |
207787044 |
Carriage Bolt M8 X 70 |
| 38 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 39 |
250000105 |
HEX. SCREW WITH NYLON - Call your local BRP dealership |
| 40 |
224081201 |
FLAT WASHER - Call your local BRP dealership |
| 41 |
506151140 |
O-RING - Call your local BRP dealership |
| 42 |
506151582 |
Extrusion |
| 43 |
506151363 |
TUBE - Call your local BRP dealership |
| 44 |
709400919 |
Steering Support This part replaces 506151622. |
| 45 |
709400509 |
Stiffner This part replaces 506151196. |
| 46 |
207085544 |
Hex. Screw M8 X 55 |
| 47 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 48 |
506151687 |
HANDLEBAR - Call your local BRP dealership |
| 49 |
506152238 |
Handle Grip This part replaces 506151714. |
| 50 |
506151566 |
ADAPTATOR - Call your local BRP dealership |
| 51 |
206581244 |
SOCKET SET SCREW M8 X 12 - Call your local BRP dealership |
| 52 |
506151597 |
STEERING PAD - Call your local BRP dealership |
| 53 |
572106200 |
KEYWAY - Call your local BRP dealership |
| 54 |
506151661 |
Keyway |
| 55 |
208652044 |
Phillips Screw M5 X 20 |
| 56 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 57 |
408200700 |
Grease Fitting |
| 58 |
219700417 |
SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 506145900 |
Bras |
De Direction GA - Appelez votre concessionnaire BRP local 506145900 |
| 506145900 |
LH |
STEERING ARM - Call your local BRP dealership 506145900 |
