| Ref | Part Number | Description |
|---|
| 1 |
0330192 |
LINK, Cam follower |
| 11 |
0396236 |
ROLLER, Cam follower |
| 13 |
0308776 |
O-RING |
| 14 |
0321734 |
SPRING Choke override |
| 15 |
0319008 |
GROMMET, Cable, lower motor cover |
| 21 |
0315232 |
RETAINER , Needle valve stbd |
| 22 |
0330884 |
NEEDLE VALVE, Slow speed |
| 23 |
0322293 |
ORIFICE PLUG |
| 24 |
0318536 |
SLEEVE |
| 28 |
0336842 |
CLIP, SPRING This part replaces 0603145. |
| 30 |
0338878 |
GASKET This part replaces 0331499. |
| 31 |
0330881 |
FLOAT CHAMBER |
| 33 |
0306413 |
WASHER |
| 35 |
0320521 |
GROMMET |
| 36 |
0314496 |
SCREW, Air silencer |
| 37 |
0330581 |
COVER, Air silencer |
| 38 |
0322120 |
BASE, Air silencer |
| 39 |
0318932 |
JOINT |
| 40 |
0328742 |
NUT |
| 41 |
0319287 |
SEAL, Air silencer |
| 42 |
0336395 |
DETENT, Choke knob This part replaces 0324434. |
| 0397722 |
0397722 |

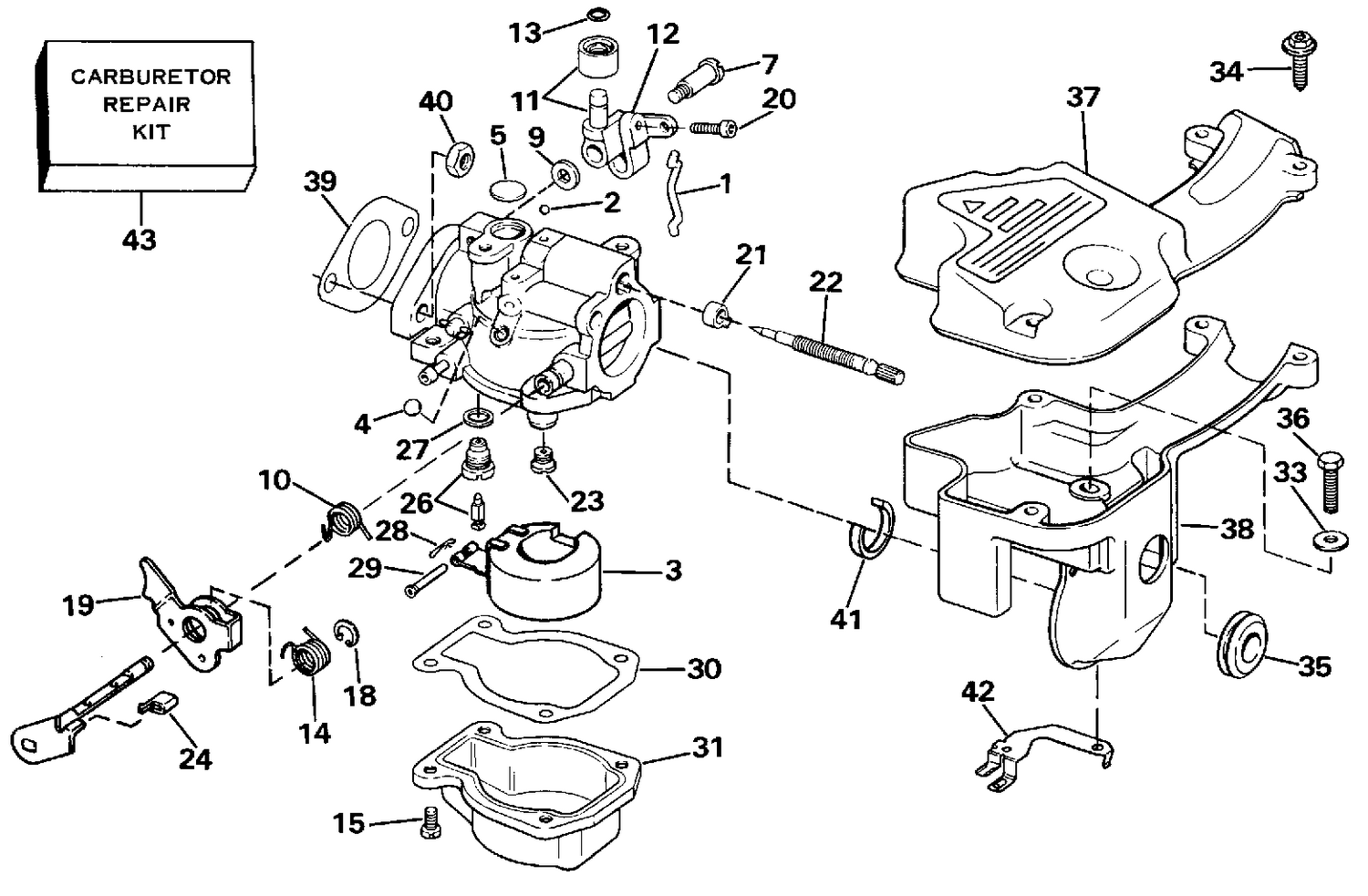

CARBURETOR ASSEMBLY |
