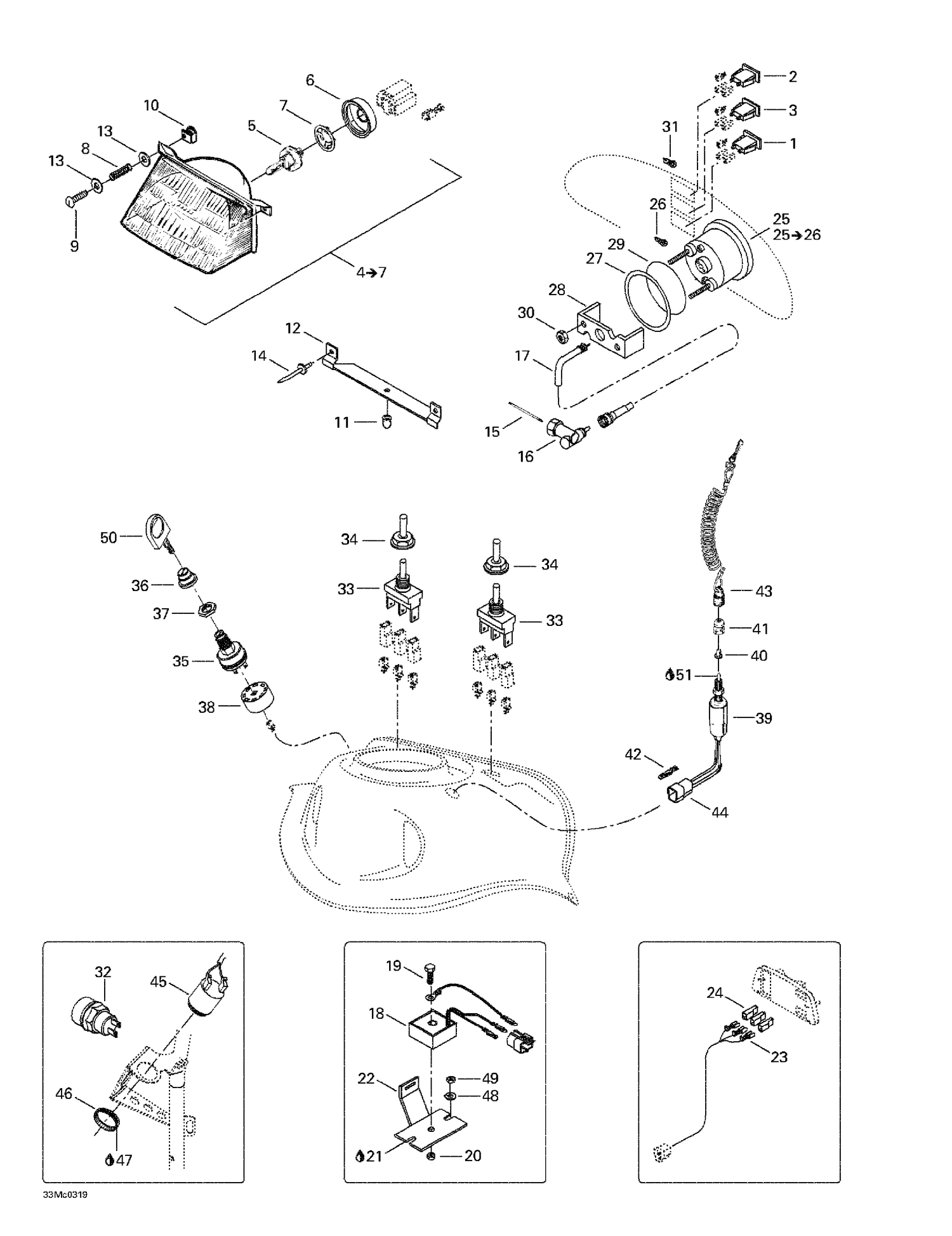

| Ref | Part Number | Description |
|---|
| 1 |
410113400 |
PILOT LAMP, ELECTRIC REVERSE - Call your local BRP dealership |
| 2 |
515175726 |
PILOT LAMP, HEADLAMP - Call your local BRP dealership |
| 3 |
515175728 |
PILOT LAMP, OIL LEVEL/BRAKE - Call your local BRP dealership |
| 5 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) This part replaces 410503700. |
| 6 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 7 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 8 |
517168600 |
Spring |
| 9 |
243244040 |
PLASTITE PHILLIPS SCREW M4 X 40 - Call your local BRP dealership |
| 10 |
572078600 |
Projector Nut |
| 11 |
410608200 |
RUBBER STOPPER - Call your local BRP dealership |
| 12 |
M539864 |
HOLDER - Call your local BRP dealership |
| 13 |
234051410 |
Flat Washer M5 |
| 14 |
M36489 |
Rivet |
| 15 |
45075 |
Square Pin Nska L=75Mm This part replaces M45075. |
| 16 |
35021 |
Gear Unit 1:1.4 Left Op-0127-002-N0-Gu This part replaces M35021. |
| 17 |
M45006 |
Speedometer Cable |
| 18 |
M5446342 |
Volt Regulator Ass'y |
| 19 |
M40003 |
Hex. Screw |
| 20 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 21 |
413707500 |
Grease Tube Lmz, 400 G |
| 22 |
M5346798 |
Cooling Plate |
| 23 |
409010600 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces M42178. |
| 24 |
409010400 |
Female Terminal Housing, 1 Circuit This part replaces M42179. |
| 25 |
515175336 |
Speedometer, Mph |
| 26 |
515175929 |
Bulb 12V-1.7W |
| 27 |
517258500 |
Washer |
| 28 |
414806500 |
Case Holder |
| 29 |
414807100 |
O-Ring |
| 30 |
M33062 |
NUT M5 - Call your local BRP dealership |
| 31 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 32 |
415130372 |
Push Button This part replaces 415101200. |
| 33 |
410107300 |
Switch (Heating Grip) |
| 34 |
515175281 |
Switch Cover |
| 35 |
515176548 |
IGNITION SWITCH - Call your local BRP dealership This part replaces 410113602. |
| 36 |
570013700 |
Switch Boot |
| 37 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 38 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 39 |
515175653 |
Brake Switch This part replaces 515175571. |
| 40 |
570151100 |
Plunger Cap |
| 41 |
515145900 |
Switch Nut |
| 42 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces M42603. |
| 43 |
515178283 |
Cap Ass'y This part replaces 515151500. |
| 44 |
M42268 |
Male Housing |
| 45 |
515176035 |
HORN - Call your local BRP dealership This part replaces 415060900. |
| 46 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 47 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 48 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 49 |
232561414 |
Elastic Stop Nut M6 |
| 50 |
415129350 |
BLANK KEY - Call your local BRP dealership This part replaces 414991700. |
