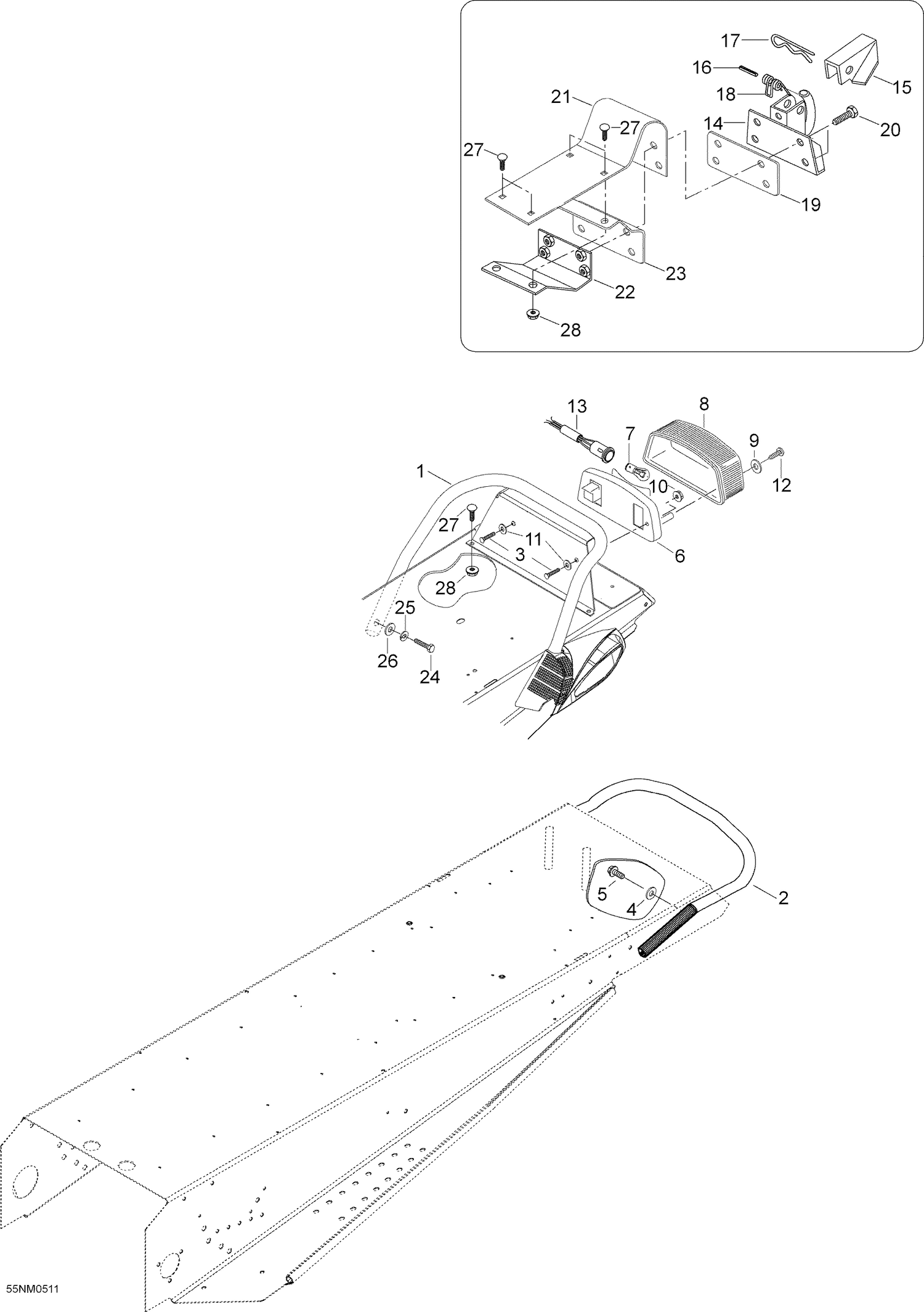

| Ref | Part Number | Description |
|---|
| 1 |
605250506 |
Rack |
| 2 |
605351221 |
Rear bumper |
| 3 |
40149 |
Locking screw M6 x 30 |
| 4 |
20077 |
M8 Washer |
| 5 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 6 |
515175397 |
LAMP HOUSING - Call your local BRP dealership |
| 7 |
520000758 |
Bulb This part replaces 410504000. |
| 8 |
414513700 |
Lens |
| 9 |
414516400 |
Washer - Call your local BRP dealership |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 11 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 12 |
209632540 |
Phillips Tapping Screw M3.9 X 25 This part replaces 414516300. |
| 13 |
515175852 |
Adapter |
| 14 |
5344156 |
HITCH ASS'Y - Call your local BRP dealership This part replaces 5344208. |
| 15 |
5440767 |
Lock |
| 16 |
41012 |
Pin |
| 17 |
41029 |
Pin |
| 18 |
545693 |
SPRING - Call your local BRP dealership |
| 19 |
605449546 |
Plate |
| 20 |
40386 |
Hex. screw M8 x 30 |
| 21 |
605349106 |
Hitch support |
| 22 |
605349124 |
Hitch support |
| 23 |
605349487 |
Hitch support |
| 24 |
40030 |
Hex. screw M6 x 20 |
| 25 |
20052 |
Lock washer A6 |
| 26 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 27 |
40866 |
Locking screw M6 x 20 |
