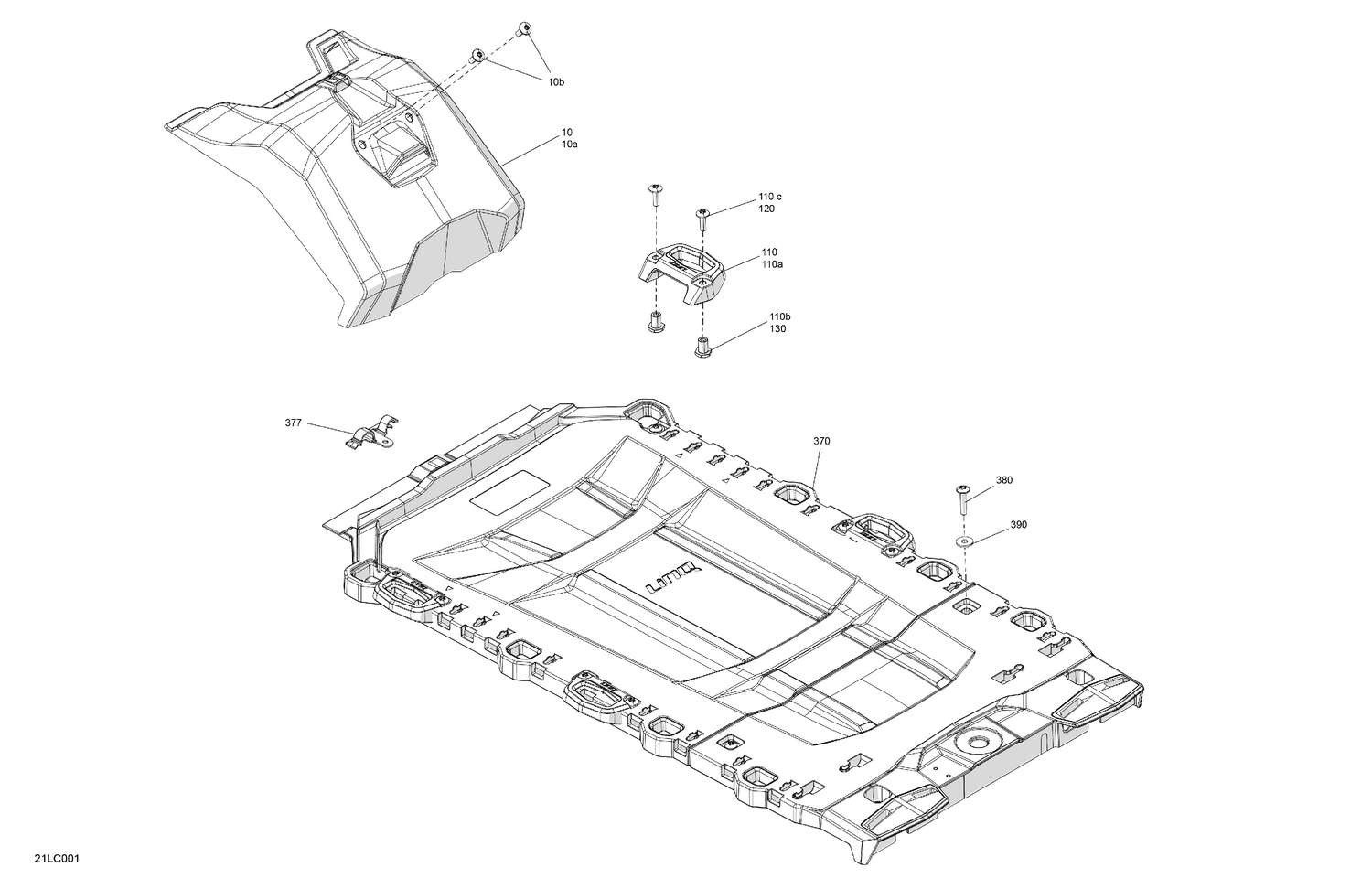

07- Body - Cargo
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 511001210 | Battery Cover This part replaces 511001899. |
| 10b | 250001005 | Torx Screw M6 X 16 |
| 110a | 860201806 | Luggage Rack Base With Hardware |
| 110b | 511000822 | Insert |
| 110c | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 120 | 250000843 | Torx Truss Screw M6 X 30 |
| 130 | 511001314 | Threaded Insert |
| 370 | 511001670 | Multi Purpose Plate |
| 377 | 520001722 | Cap |
| 380 | 250000843 | Torx Truss Screw M6 X 30 |
