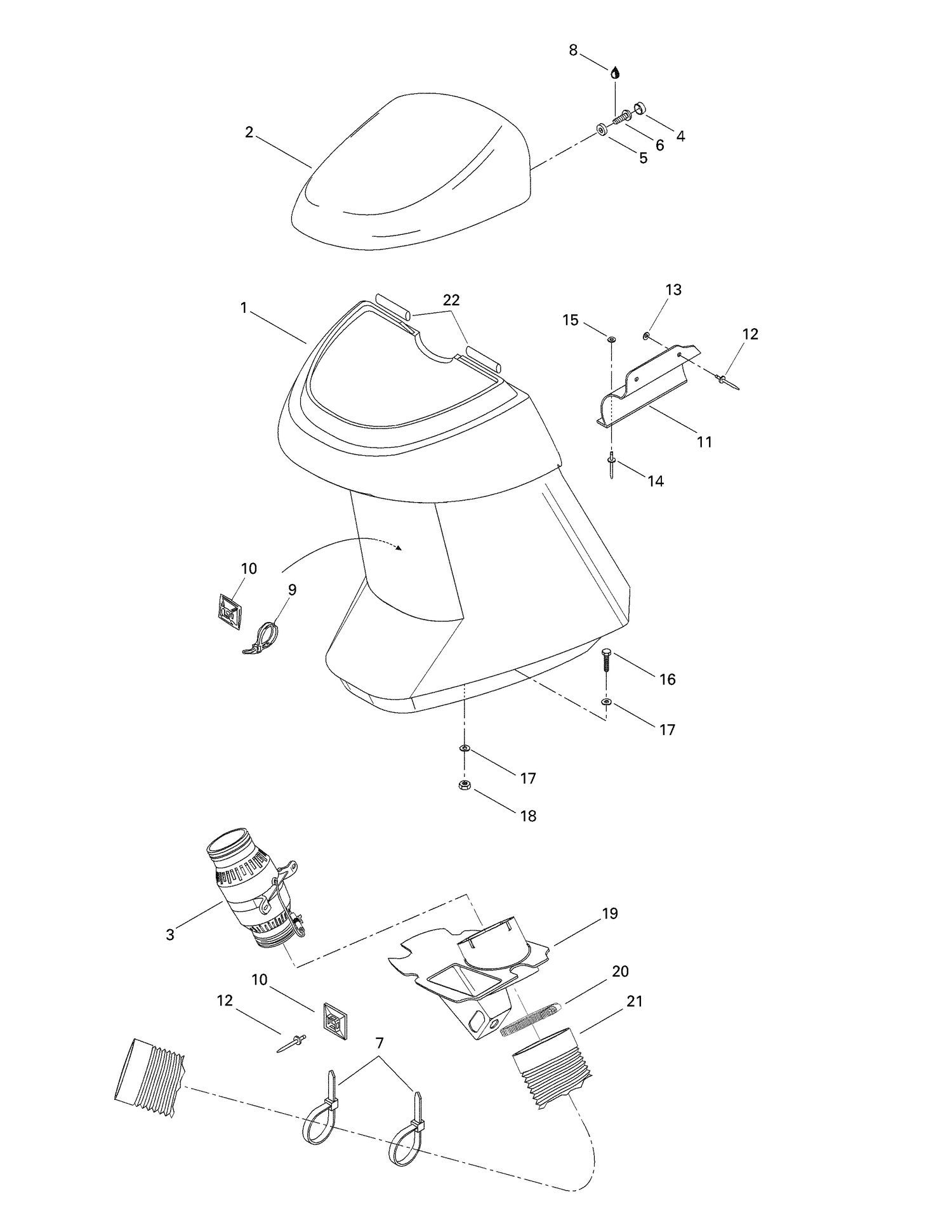

09- Console
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 291001104 | CONSOLE - Call your local BRP dealership |
| 2 | 291000636 | Deflector |
| 3 | 204470109 | Blower |
| 4 | 204000014 | Snap-Cap |
| 5 | 204000013 | Cap Retainer |
| 6 | 216141660 | Screw M4 x 16 |
| 7 | 293750008 | Tie Wrap 368 mm |
| 8 | 293800060 | Loctite 243, 10 ml This part replaces 293800015. |
| 9 | 414115200 | Tie-Rap 180 mm This part replaces 294000606. |
| 10 | 293750015 | TIE RAP MOUNT - Call your local BRP dealership |
| 11 | 291000539 | Vent (Right) |
| 12 | 293150016 | Rivet 1/8" |
| 13 | 293150007 | WASHER - Call your local BRP dealership |
| 14 | 293150023 | RIVET_POP 1/8 X ,625 - Call your local BRP dealership |
| 15 | 234032600 | Flat Washer M3, Stainless This part replaces 213200018. |
| 16 | 207064060 | Hex. Screw M6 X 40 This part replaces 215664060. |
| 17 | 234062600 | Flat Washer M6, Stainless This part replaces 213200007. |
| 18 | 232561600 | Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 19 | 237000005 | Duct-Air Vent |
| 20 | 204000079 | Tridon Clamp |
| 21 | 204000062 | Flexible Hose (4") |
