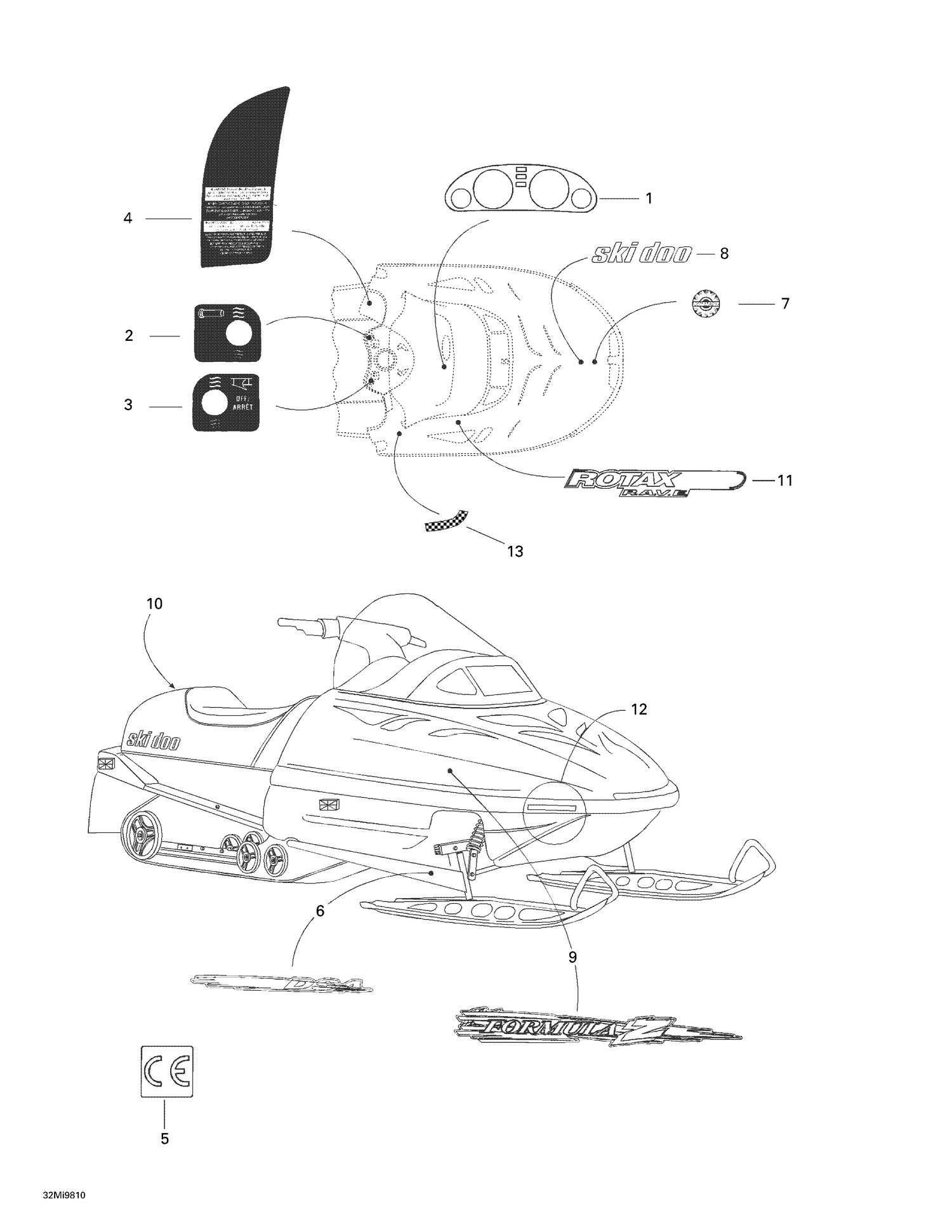

09- Decals
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 418000810 | Dash Decal |
| 2 | 414898500 | Heatgrip Decal |
| 3 | 414898400 | Heat Thumb Decal |
| 4 | 414969800 | Instruction Decal (1 pass.) |
| 6 | 415126900 | Arm Decal Kit |
| 7 | 516008738 | BRP Logo 48mm This part replaces 415037800. |
| 8 | 418000007 | Décalque «Ski-Doo» |
| 9 | 415127435 | Side Decal Kit |
| 10 | 415037900 | White, Reflector |
| 11 | 418000133 | Décalque «ROTAX 670» |
| 12 | 861805523 | Yellow, LH/RH Rear Reflector Kit This part replaces 418001009. |
| 13 | 414949111 | Decal Reflector Kit (Red) (Europe) |
