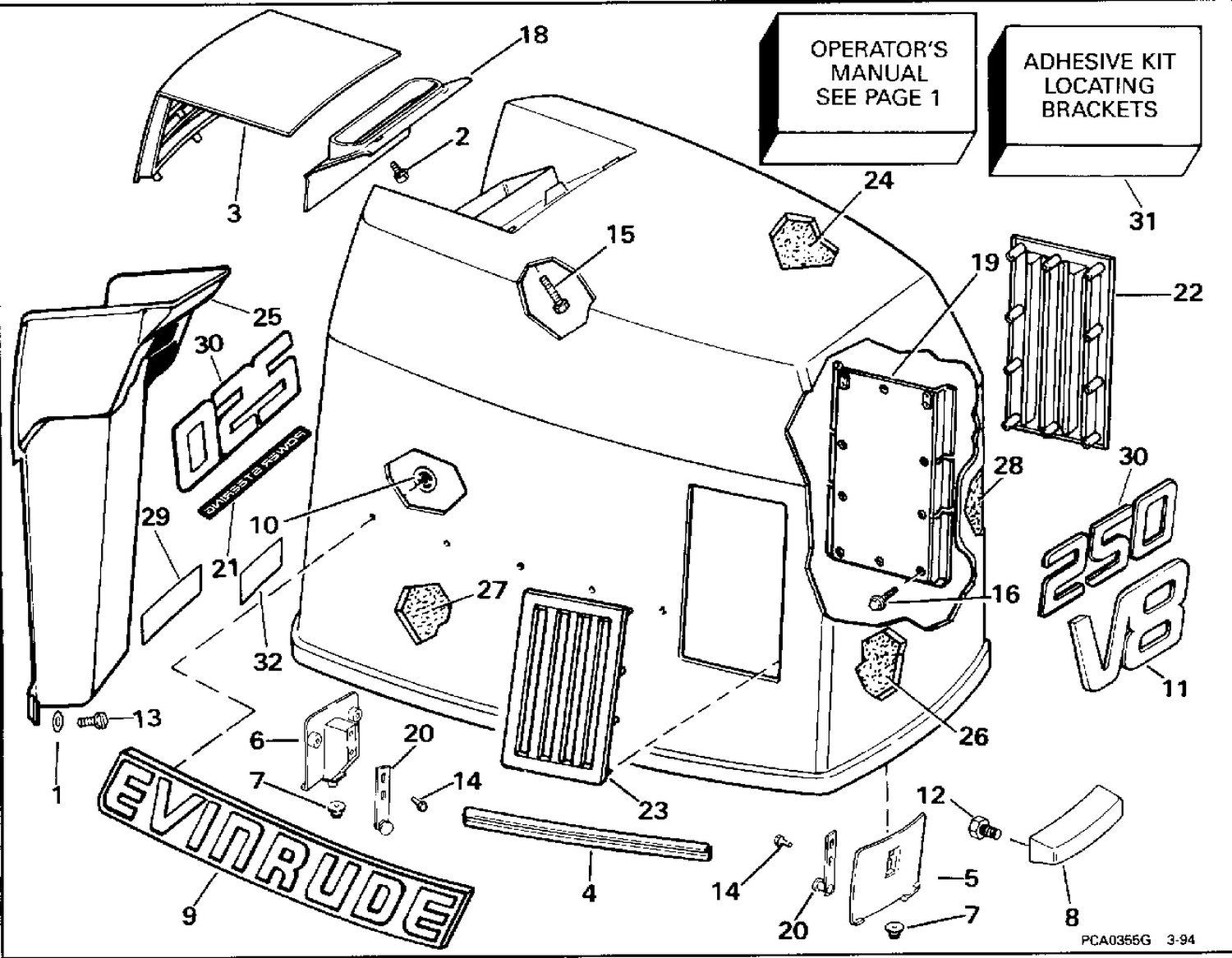

| Ref | Part Number | Description |
|---|
| 3 |
0328009 |
TILT HANDLE |
| 4 |
0912173 |
SEAL, Engine cover |
| 6 |
0336992 |
BRACKET, Locating, rear |
| 8 |
0332607 |
LIFT HANDLE |
| 8 |
0332608 |
LIFT HANDLE |
| 9 |
0211715 |
APPLIQUE, Evinrude |
| 9 |
0212479 |
LENS, Ev., port & stbd. This part replaces 0212247. |
| 11 |
0211727 |
APPLIQUE, Front, 300 |
| 12 |
0334004 |
SCREW, Hook to bracket |
| 18 |
0330012 |
BAFFLE |
| 19 |
0328608 |
BRACKET, Louver mounting., 300 |
| 20 |
0397630 |
HOOK |
| 21 |
0211813 |
APPLIQUE, Lower steering, 300 |
| 22 |
0211903 |
LOUVER, Port, 300 |
| 23 |
0211904 |
LOUVER, Starboard, 300 |
| 24 |
0341499 |
SOUND BLANKET, Top This part replaces 0336488. |
| 25 |
0336365 |
BAFFLE, Air intake |
| 26 |
0331633 |
SOUND BLANKET, Front |
| 27 |
0341500 |
SOUND BLANKET, Stbd. This part replaces 0331938. |
| 27 |
0341540 |
SOUND BLANKET, Stbd., 300 This part replaces 0334870. |
| 28 |
0341495 |
SOUND BLANKET, Port This part replaces 0331632. |
| 28 |
0341498 |
SOUND BLANKET, Port, 300 This part replaces 0334871. |
| 29 |
0212239 |
APPLIQUE, Counter rotation |
| 29 |
0336176 |
APPLIQUE, Counter rotating |
| 30 |
0212219 |
APPLIQUE, Front & rear, 250 |
| 31 |
0431929 |
KIT ADHÉSIF, supports d'emplacement |
| 32 |
0211076 |
DECAL, Counter rotation |
| 0284444 |
0284444 |
ENGINE COVER ASSY. |
| 0284450 |
0284450 |
ENGINE COVER ASSY., 250 |
| 0284547 |
0284547 |
DECAL SET |
| 0284548 |
0284548 |
DECAL SET |
| 0284633 |
0284633 |
ENGINE COVER ASSY., 300 |
| 0284634 |
0284634 |
ENGINE COVER ASSY., 300 |
