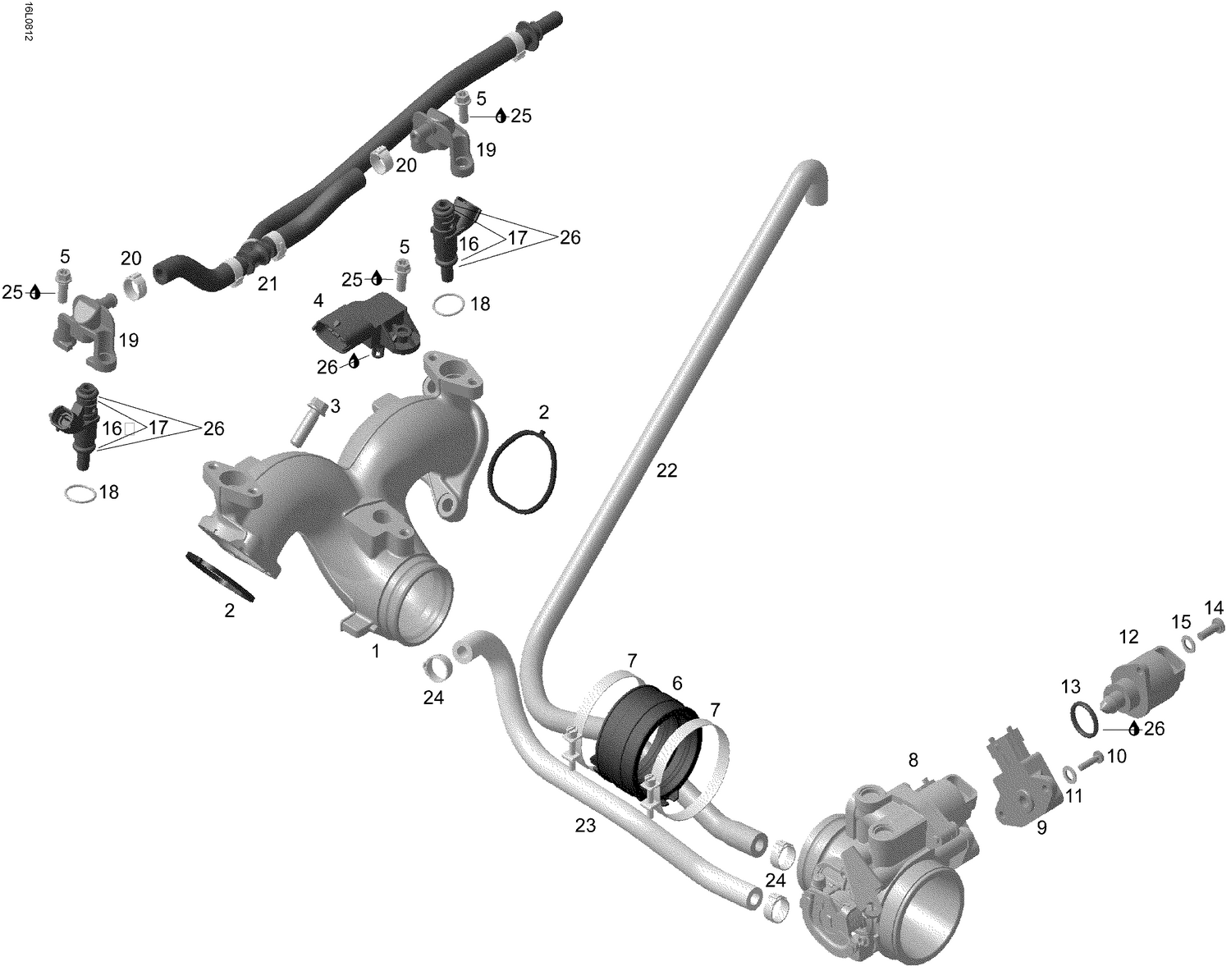

01- Air Inlet Manifold And Throttle Body
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667342 | AIR INTAKE MANIFOLD - Call your local BRP dealership |
| 2 | 420630642 | Gasket |
| 3 | 420440372 | Screw M8 x 25 |
| 4 | 707000995 | Pressure And Temperature Sensor This part replaces 420874650. |
| 5 | 420641048 | Screw M6 x 16 |
| 6 | 420267480 | Intake socket |
| 7 | 420251480 | Clamp |
| 9 | Not | Available As Spare Part - Potentiometer |
| 10 | Not | Available As Spare Part - Screw |
| 11 | Not | Available As Spare Part - Washer |
| 12 | 420665941 | Idle Bypass Valve This part replaces 420963057. |
| 13 | 420631780 | O-ring |
| 14 | 420440911 | Screw M5 x 16 |
| 15 | 420845710 | Snap ring |
| 16 | 420874402 | Injection valve |
| 17 | 420631220 | O-Ring |
| 18 | 420631296 | O-Ring This part replaces 420631295. |
| 19 | 420874410 | Fuel rail |
| 20 | 420851458 | Clamp |
| 21 | 420874711 | HOSE - Call your local BRP dealership This part replaces 420874710. |
| 22 | 420822359 | Molded hose |
| 23 | 420460271 | Molded hose |
| 24 | 293650125 | Oetiker Clamp This part replaces 420853303. |
| 25 | 293800060 | Loctite 243, 10 ml |
