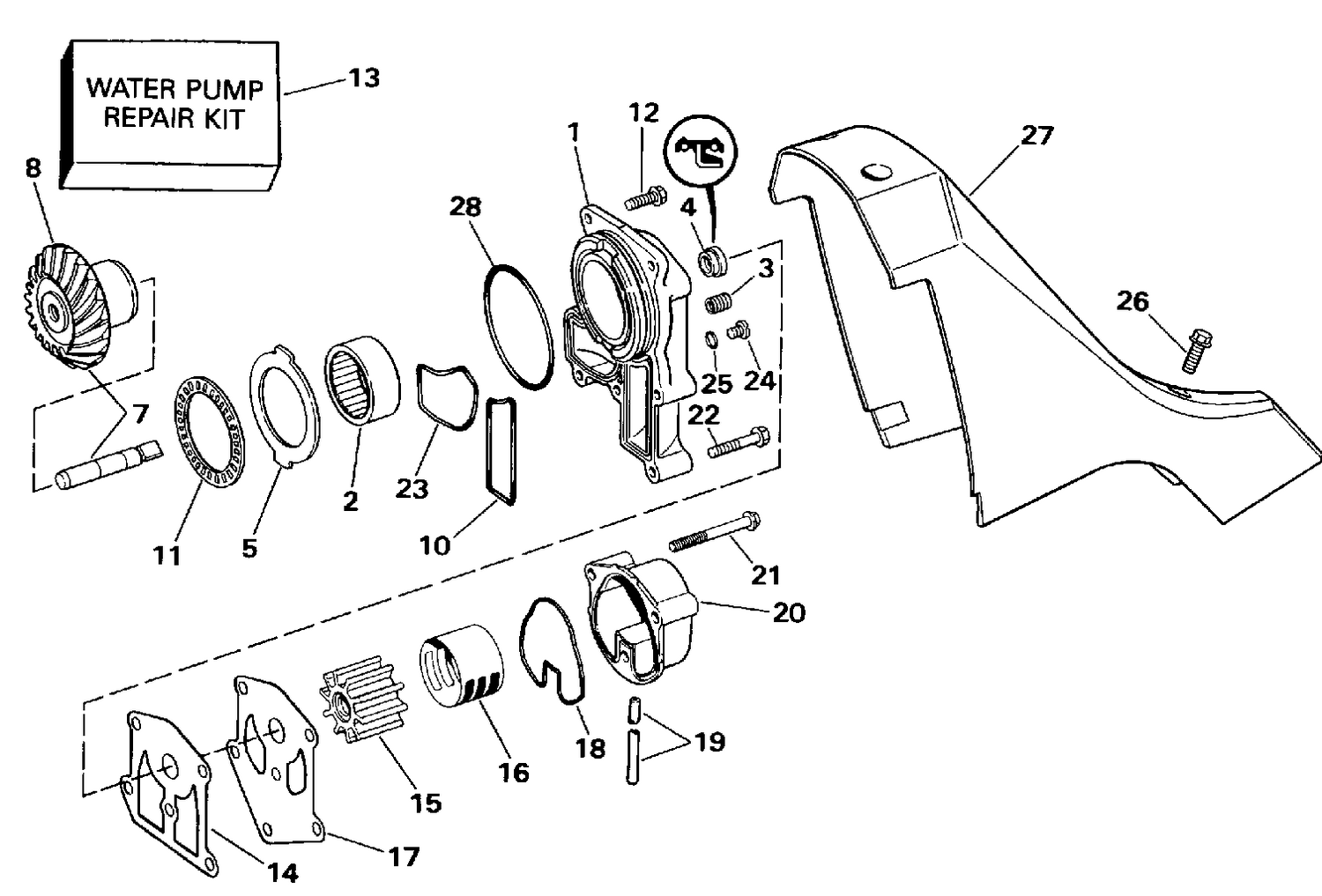

| Ref | Part Number | Description |
|---|
| 1 |
3854081 |
ADAPTOR SEAL & BEARING This part replaces 0987214. |
| 3 |
0910901 |
INSERT |
| 4 |
3853655 |
SEAL, Water pump adaptor This part replaces 0916058. |
| 5 |
3853432 |
WASHER, Thrust, drive gear This part replaces 0915075. |
| 7 |
3854006 |
GEAR & SHAFT, Water pump This part replaces 0986729. |
| 8 |
3852954 |
Gear This part replaces 0914013. |
| 10 |
3852964 |
SEAL, Adaptor to gear hsg., inlet This part replaces 0914030. |
| 12 |
0341013 |
SCREW, Cover This part replaces 0908668. |
| 13 |
3854661 |
WATER PUMP REPAIR KIT This part replaces 0987743. |
| 14 |
3853654 |
GASKET, Plate to adaptor This part replaces 0916056. |
| 15 |
3854072 |
IMPELLER, Water pump This part replaces 0987176. |
| 16 |
0916195 |
LINER, Water pump |
| 17 |
0915216 |
PLATE, Water pump |
| 18 |
3853473 |
SEAL, Water pump to plate This part replaces 0915217. |
| 19 |
3853531 |
VENT HOSE, Impeller housing This part replaces 0915595. |
| 20 |
3854071 |
IMPELLER HOUSING This part replaces 0987175. |
| 21 |
3852859 |
Screw This part replaces 0913833. |
| 22 |
0908511 |
SCREW |
| 23 |
3852965 |
SEAL, Adaptor to gear hsg., outlet This part replaces 0914031. |
| 24 |
3852536 |
PLUG, Water drain This part replaces 0911719. |
| 25 |
0911311 |
O-RING, Plug |
| 26 |
3853428 |
SCREW, Anchor bracket This part replaces 0915068. |
| 27 |
3854456 |
COVER, Gearcase, rear This part replaces 0913892. |
