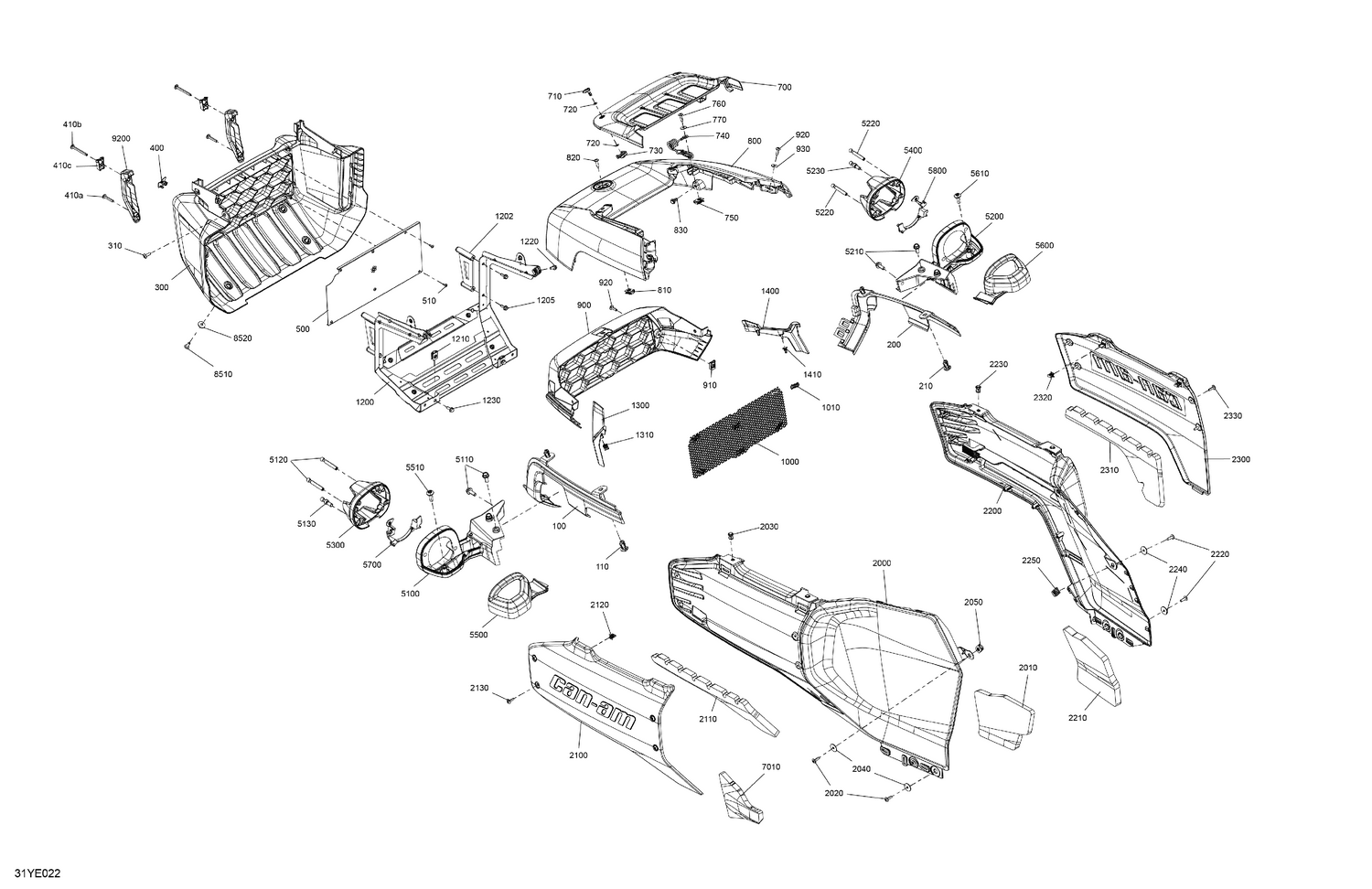

07- Body - System
Parts (78)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 708201259 | LH Front Trim |
| 110 | 293150230 | Tuflok Plastic Rivet |
| 200 | 708201260 | RH Front Trim |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 300 | 705017433 | Lower Fascia |
| 310 | 250000303 | Torx Truss Screw M6 X 20 |
| 400 | 705018663 | Connector Cap |
| 410a | 250001327 | Torx Truss Cone Screw Hd.M6 X 35 |
| 410b | 250001328 | Torx Truss Cone Screw Hd.M6 X 60 |
| 500 | 708201291 | Lower Scoop Grille |
| 510 | 250001131 | Torx Truss PT K40 x 12 |
| 700 | 705017394 | Access Cover |
| 710 | 705013609 | Quarter-Turn Screw |
| 720 | 705003207 | Plastic Washer |
| 730 | 705002651 | Quarter Turn Nut |
| 750 | 250100208 | Panel Nut M6 X 1.0 |
| 760 | 250000722 | Torx Screw M6 X 20 |
| 770 | 234062670 | Stainless Steel Flat Washer |
| 800 | 708201288 | Sterling Silver, Upper Fascia |
| 810 | 250100208 | Panel Nut M6 X 1.0 |
| 820 | 250000722 | Torx Screw M6 X 20 |
| 830 | 293150230 | Tuflok Plastic Rivet |
| 900 | 708201214 | Front Upper Grille |
| 910 | 250100208 | Panel Nut M6 X 1.0 |
| 920 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 930 | 234062670 | Stainless Steel Flat Washer |
| 1000 | 708201289 | Upper Scoop Grille |
| 1010 | 705004838 | Flat Clip |
| 1200 | 705017531 | Front Bumper |
| 1202 | 705018647 | Bumper Anchorage |
| 1205 | 250000906 | Hex Flange Screw M6 X 16 |
| 1210 | 250100208 | Panel Nut M6 X 1.0 |
| 1220 | 250000906 | Hex Flange Screw M6 X 16 |
| 1230 | 250001051 | Screw-Forming Hex.HD.FL. M6 X 16 |
| 1300 | 708400859 | LH Lower Console Trim |
| 1310 | 517302785 | Edge Clip |
| 1400 | 708400860 | RH Lower Console Trim |
| 1410 | 517302785 | Edge Clip |
| 2000 | 705017386 | LH Lower Fairing |
| 2010 | 705017662 | LH Rear Acoustic Insulation |
| 2020 | 250000722 | Torx Screw M6 X 20 |
| 2030 | 293150230 | Tuflok Plastic Rivet |
| 2040 | 250200029 | Washer M6 |
| 2050 | 250100208 | Panel Nut M6 X 1.0 |
| 2100 | 705018535 | Sterling Silver, LH Fairing |
| 2110 | 705017664 | LH Front Acoustic Insulation |
| 2120 | 517302785 | Edge Clip |
| 2130 | 250001155 | Screw Type K-50 X20 |
| 2200 | 705017387 | RH Lower Fairing |
| 2210 | 705017663 | RH Rear Acoustic Insulation |
| 2220 | 250000722 | Torx Screw M6 X 20 |
| 2230 | 293150230 | Tuflok Plastic Rivet |
| 2240 | 250200029 | Washer M6 |
| 2250 | 250100208 | Panel Nut M6 X 1.0 |
| 2300 | 705018536 | Sterling Silver, RH Fairing |
| 2310 | 705017665 | RH Front Acoustic Insulation |
| 2320 | 517302785 | Edge Clip |
| 2330 | 250001155 | Screw Type K-50 X20 |
| 5100 | 705017956 | LH Front Headlight Support |
| 5110 | 210261650 | Hex. Flange Screw M6 X 16 |
| 5120 | 705019336 | Ball Joint |
| 5130 | 705019337 | Ball Joint |
| 5200 | 705017957 | RH Front Headlight Support |
| 5210 | 210261650 | Hex. Flange Screw M6 X 16 |
| 5220 | 705019336 | Ball Joint |
| 5230 | 705019337 | Ball Joint |
| 5300 | 705017958 | LH Front Headlight Trim |
| 5400 | 705017959 | RH Front Headlight Trim |
| 5500 | 705018086 | LH Cover |
| 5510 | 250001325 | Torx Truss Cone Screw Hd.M6 X 20 |
| 5600 | 705018088 | RH Cover |
| 5610 | 250001325 | Torx Truss Cone Screw Hd.M6 X 20 |
| 5700 | 705019338 | LH Block Adjuster |
| 5800 | 705019339 | RH Block Adjuster |
| 7010 | 705017789 | Acoustic Panel Insulation |
| 8510 | 250001325 | Torx Truss Cone Screw Hd.M6 X 20 |
| 8520 | 234062670 | Stainless Steel Flat Washer |
| 9200 | 705018890 | Carbon Black, Bumper |
