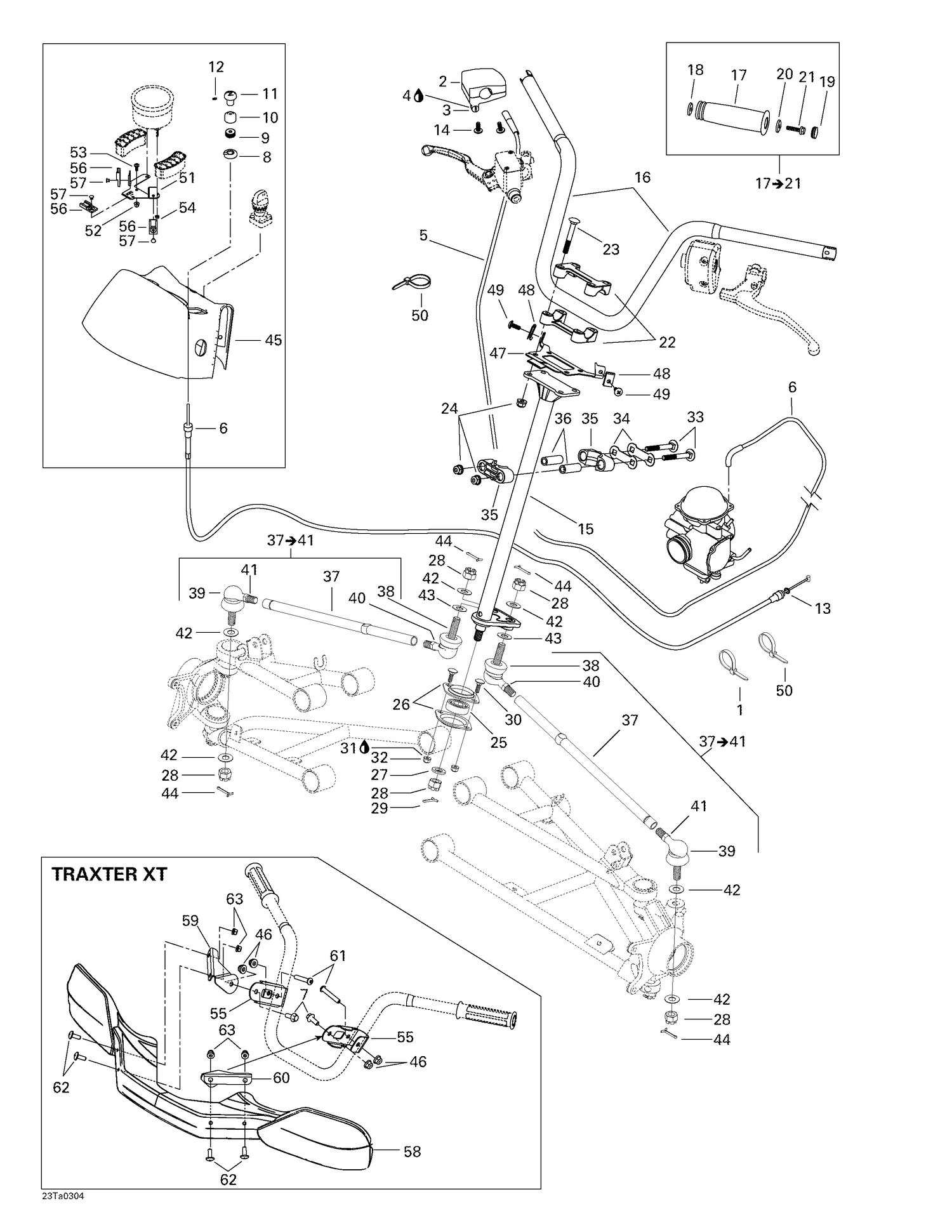

| Ref | Part Number | Description |
|---|
| 1 |
293750009 |
Tie-Rap 173 mm |
| 2 |
709400016 |
THROTTLE HANDLE - Call your local BRP dealership |
| 3 |
250000017 |
SCREW-SET SOCKET DIN.913 - Call your local BRP dealership |
| 4 |
293800061 |
Loctite BLACK/MAX Gel Tube, 20 g |
| 5 |
707000097 |
THROTTLE CABLE - Call your local BRP dealership |
| 6 |
707000357 |
CHOKE CABLE - Call your local BRP dealership This part replaces 707000264. |
| 8 |
707000067 |
D SHAPE WASHER - Call your local BRP dealership |
| 9 |
707000087 |
HOLDER CAP - Call your local BRP dealership |
| 10 |
707000088 |
Rubber Cap |
| 11 |
707000089 |
BUTTON - Call your local BRP dealership |
| 12 |
250000108 |
PHILLIPS SCREW M3 X 5 - Call your local BRP dealership |
| 13 |
293300075 |
O-RING - Call your local BRP dealership |
| 14 |
205353060 |
SCREW M5 X 30 - Call your local BRP dealership |
| 15 |
709400089 |
Main Tube, Black |
| 16 |
709400005 |
Handlebar |
| 18 |
Not |
Available As Spare Part - Grip Insert |
| 19 |
277000203 |
Black, Cap |
| 20 |
234062600 |
Flat Washer M6, Stainless |
| 21 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 22 |
709400028 |
Steering Clamp |
| 23 |
207786544 |
CARRIAGE BOLT M8 X 65 - Call your local BRP dealership |
| 24 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 25 |
709400439 |
Ball Bearing This part replaces 709400012. |
| 26 |
709400152 |
FLANGE, BEARING - Call your local BRP dealership This part replaces 709400013. |
| 27 |
234021410 |
Flat Washer 12 mm |
| 28 |
232221414 |
Hex. Castellated Nut M12 |
| 29 |
211400017 |
Cotter Pin |
| 30 |
207762544 |
Carriage Bolt M6 X 25 |
| 31 |
293800060 |
Loctite 243, 10 ml |
| 32 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 33 |
207787044 |
Carriage Bolt M8 X 70 |
| 34 |
506150600 |
Stopper Plate |
| 35 |
709400034 |
HALF-HOUSING - Call your local BRP dealership |
| 36 |
506150500 |
Housing Bushing |
| 38 |
709402302 |
RH Ball Joint This part replaces 709400065. |
| 39 |
709402303 |
LH Ball Joint This part replaces 709400066. |
| 40 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 41 |
732610020 |
LH HEX. JAM NUT M12 - Call your local BRP dealership |
| 42 |
706200281 |
Hardened Washer |
| 43 |
503189276 |
Washer |
| 44 |
211400013 |
Cotter Pin |
| 45 |
703500205 |
Steering cover (grey) |
| 47 |
709400077 |
Cover Support, Black |
| 48 |
211100050 |
Speednut M6 |
| 49 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 50 |
414115200 |
Tie-Rap 180 mm |
| 51 |
710000159 |
Housing Support, Black |
| 52 |
232551414 |
Elastic Stop Nut M5 |
| 53 |
208651241 |
PHILLIPS SCREW M5 X 12 - Call your local BRP dealership |
| 54 |
211100051 |
NUT-STOP ELASTIC IFI 100/107 - Call your local BRP dealership |
| 55 |
709400118 |
U Shaped Bracket |
| 56 |
270000141 |
Clip |
| 57 |
390402400 |
Pop Rivet 3/16" |
| 293750008 |
Tie |
Wrap 368 mm 293750008 |
