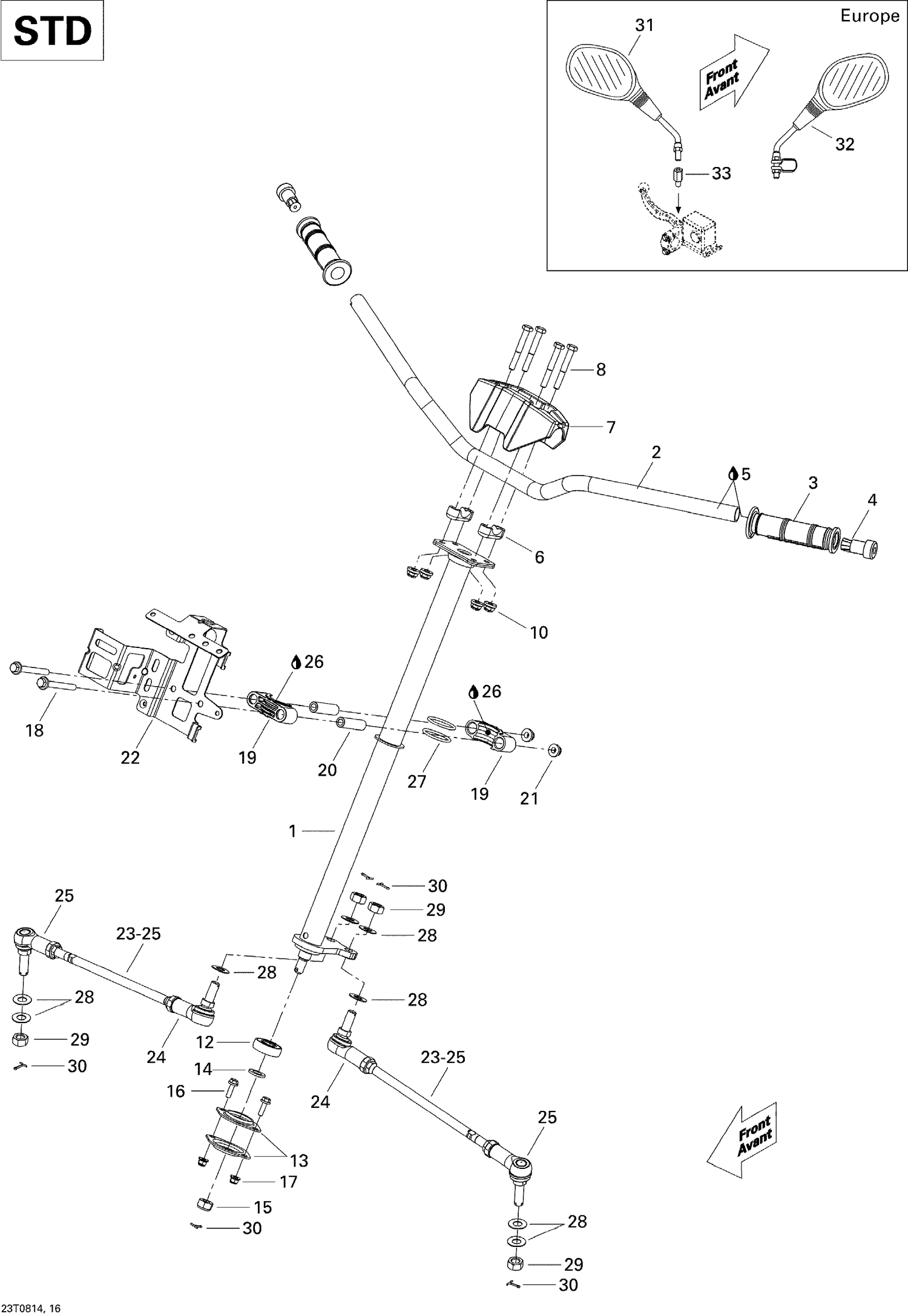

| Ref | Part Number | Description |
|---|
| 1 |
709400971 |
Main Tube, Black This part replaces 709400283. |
| 2 |
709401242 |
Handlebar This part replaces 709400458. |
| 3 |
709400493 |
Handle Grip |
| 4 |
709400449 |
End Piece |
| 5 |
293800100 |
Loctite 406, 7 Oz |
| 6 |
709400919 |
Steering Support This part replaces 506151622. |
| 7 |
709400920 |
SUPPORT - Call your local BRP dealership This part replaces 709400438. |
| 8 |
205086060 |
Socket Head Screw M8 X 60 |
| 9 |
XXX |
Not Available As Spare Parts |
| 10 |
233281416 |
Hex. Elastic Flange Nut M8 |
| 11 |
XXX |
Not Available As Spare Parts |
| 12 |
709400439 |
Ball Bearing |
| 13 |
709400152 |
FLANGE, BEARING - Call your local BRP dealership |
| 14 |
234021410 |
Flat Washer 12 mm |
| 15 |
250000047 |
Hex. Flange Elastic Nut M12 |
| 16 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
207687044 |
Hex. Flange Screw M8 X 70 |
| 19 |
709400471 |
Half Bushing |
| 20 |
709400072 |
BUSHING - Call your local BRP dealership |
| 21 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 22 |
709400751 |
MODULE SUPPORT - Call your local BRP dealership This part replaces 705201532. |
| 23 |
709400485 |
Tie Rod Ass'y |
| 24 |
709402303 |
LH Ball Joint This part replaces 709400486. |
| 25 |
709400487 |
Ball Joint, RH Threads |
| 26 |
293550010 |
Synthetic Grease, 400 G |
| 27 |
293300068 |
O-Ring |
| 28 |
706200281 |
Hardened Washer |
| 29 |
250100099 |
Nut M12 |
| 30 |
211400013 |
Cotter Pin |
