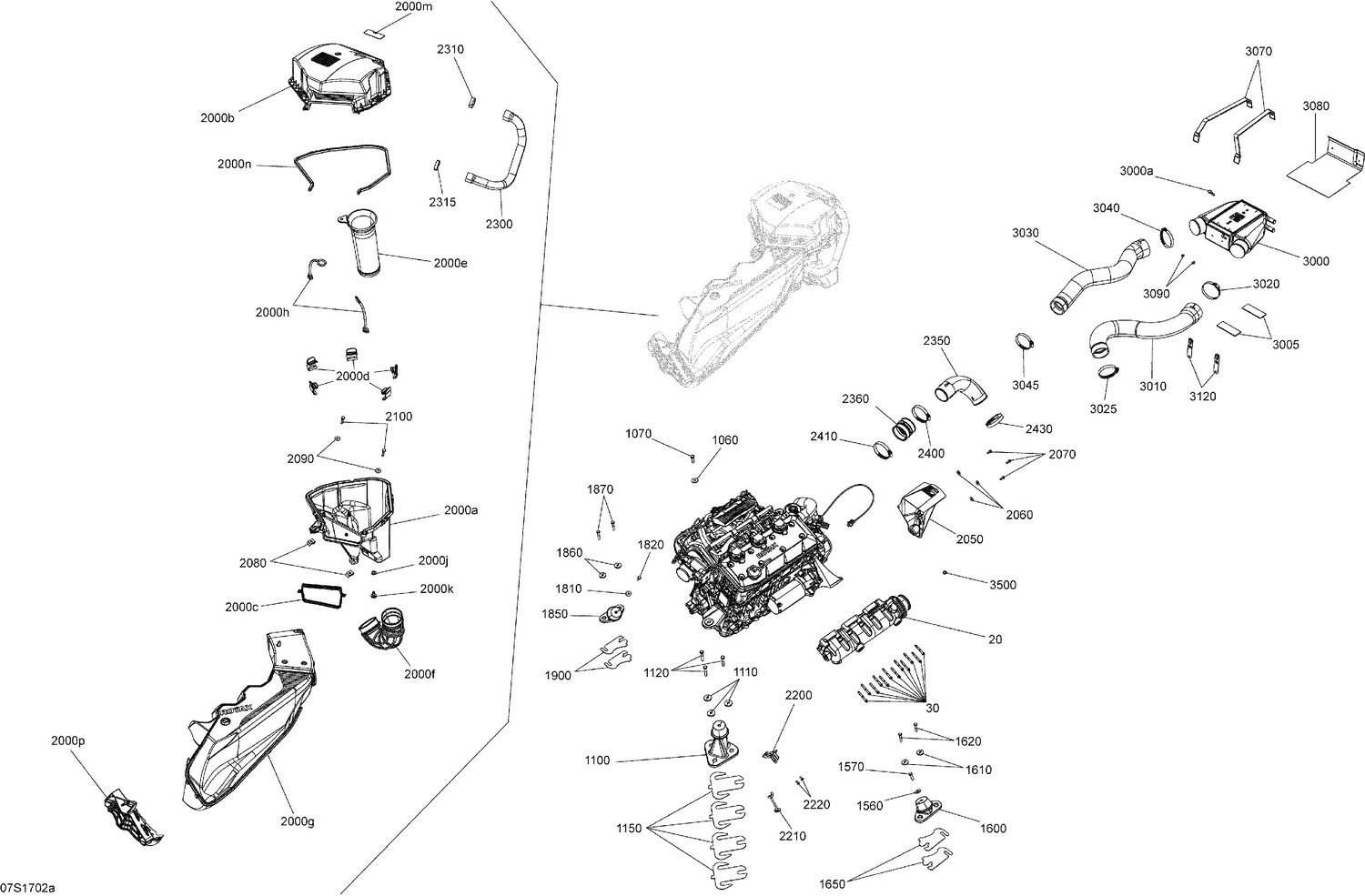

| Ref | Part Number | Description |
|---|
| 20 |
296000422 |
Engine Exhaust Manifold 0990732-00 - 150 This part replaces 274001553. |
| 30 |
420641198 |
Torx Flange Screw M6 X 45 |
| 1060 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1070 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 1100 |
270000886 |
Rubber Mount |
| 1110 |
250200018 |
Cone Washer |
| 1120 |
250000782 |
Hexagonal Head Cap Screw M8 X 45 |
| 1150 |
270000770 |
Shim 1.3 mm |
| 1560 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1570 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 1600 |
270001081 |
Engine Support Ass'y This part replaces 270000882. |
| 1610 |
250200018 |
Cone Washer |
| 1620 |
250000782 |
Hexagonal Head Cap Screw M8 X 45 |
| 1650 |
270000762 |
Shim 1.3 mm |
| 1810 |
234082600 |
Flat Washer 8 mm, Stainless |
| 1820 |
207382560 |
Hex. Screw M8 X 25, Scotch Grip |
| 1850 |
270001081 |
Engine Support Ass'y This part replaces 270000882. |
| 1860 |
250200018 |
Cone Washer |
| 1870 |
250000782 |
Hexagonal Head Cap Screw M8 X 45 |
| 1900 |
270000762 |
Shim 1.3 mm |
| 2000a |
273000250 |
AIR SILENCER LOW - Call your local BRP dealership |
| 2000b |
273000249 |
Air Silencer Upper |
| 2000c |
293250190 |
SEAL - Call your local BRP dealership |
| 2000d |
269501718 |
Clip |
| 2000e |
273000359 |
Intake Hose |
| 2000g |
273000253 |
INTAKE TUBE - Call your local BRP dealership |
| 2000h |
269501299 |
Strap |
| 2000j |
293720064 |
GROMMET - Call your local BRP dealership |
| 2000k |
275500454 |
CHECK VALVE - Call your local BRP dealership |
| 2000m |
219903177 |
Air Silencer Notice Decal |
| 2000n |
293200123 |
NEOPRENE SEAL - Call your local BRP dealership |
| 2000p |
273000271 |
DEFLECTOR - Call your local BRP dealership |
| 2060 |
234062600 |
Flat Washer M6, Stainless |
| 2070 |
207361660 |
Hex. Screw M6 X 16, Scotch Grip |
| 2080 |
420942108 |
Panel Nut M6 X 1 |
| 2090 |
234062600 |
Flat Washer M6, Stainless |
| 2100 |
207362560 |
Hex. Screw M6 X 25, Scotch Grip |
| 2200 |
273000260 |
AIR BOX BRACKET - Call your local BRP dealership |
| 2210 |
273000344 |
Strap |
| 2220 |
207361260 |
Hex. Screw M6 X 12, Scotch Grip |
| 2300 |
270000948 |
FORMED HOSE - Call your local BRP dealership |
| 2310 |
293650051 |
Tridon Gear Clamp |
| 2315 |
293650051 |
Tridon Gear Clamp |
| 2430 |
293650179 |
Tridon Clamp |
| 3120 |
270000946 |
HOLDING STRAP - Call your local BRP dealership |
