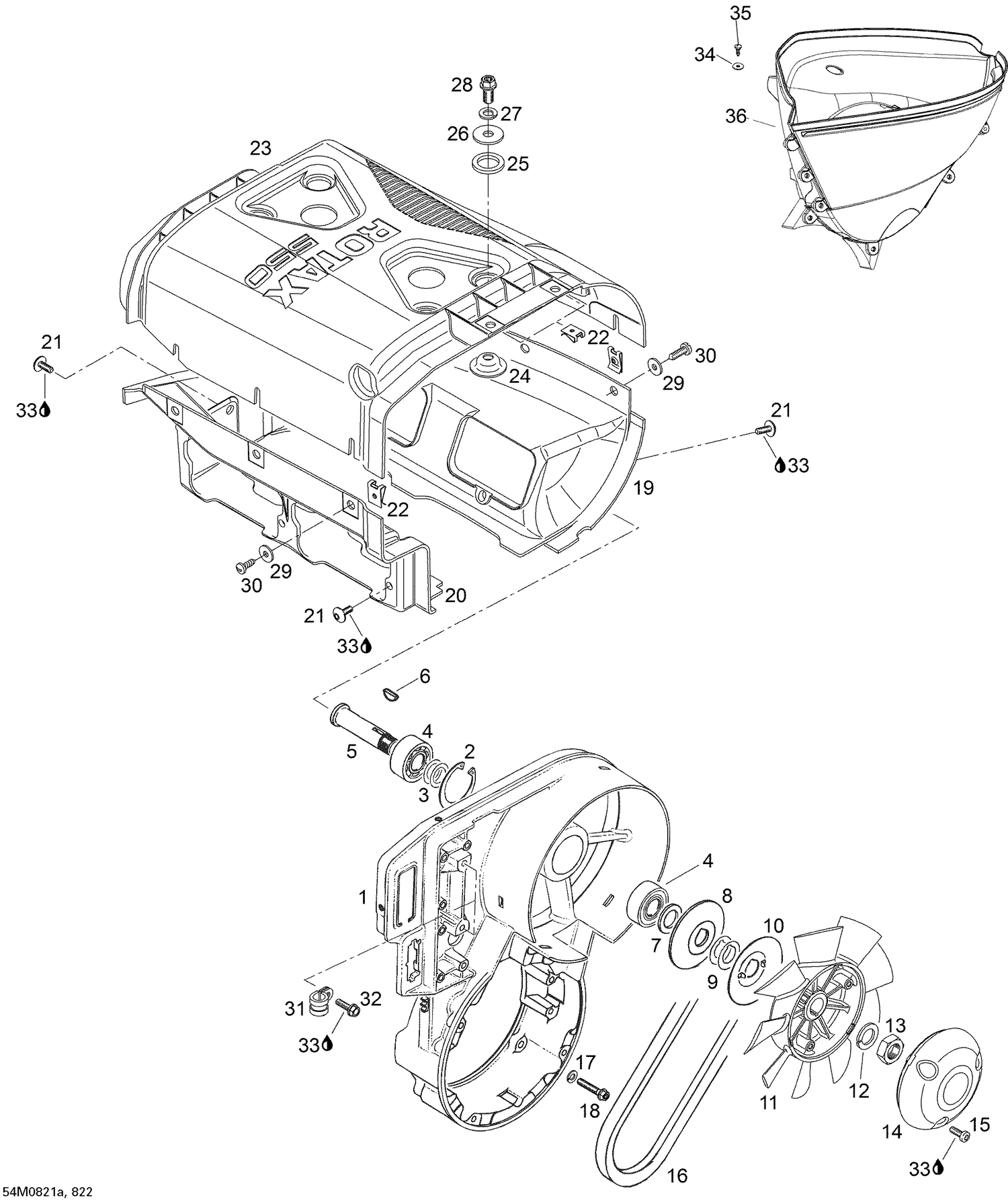

01- Fan WT 550F
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912230 | Fan Housing This part replaces 420912203. |
| 2 | 420945880 | Lock Ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Spacer Bushing |
| 8 | 420980496 | Flange |
| 9 | 420827080 | Shim 0.5 mm |
| 9 | 420827082 | Shim 0.2 mm |
| 10 | 420980523 | Protection Washer |
| 11 | 420866294 | Fan |
| 12 | 420945756 | Lock Washer |
| 13 | 420942289 | Nut M16 This part replaces 420942285. |
| 14 | 420975900 | Fan Cover |
| 15 | 420841971 | Screw |
| 16 | 414630800 | V-Belt |
| 17 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 18 | 420440647 | Torx Flange Screw M6 X 30 This part replaces 420440642. |
| 19 | 420811392 | Lower Cowling |
| 20 | 420812600 | LOWER COWLING - Call your local BRP dealership |
| 21 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 22 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 23 | 420812596 | CYLINDER COWL - Call your local BRP dealership |
| 24 | 420827817 | Cup Washer |
| 25 | 420960865 | Rubber Washer |
| 26 | 420227936 | Washer This part replaces 420227935. |
| 27 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 28 | 420440852 | Torx Flange Screw M8 X 16 |
| 29 | 420841492 | Hex Head Tapping Screw + Washer 4.8X16 This part replaces 420926185. |
| 30 | 417300006 | Tapping Screw M4.8 X 16 |
| 31 | 420851250 | Clamp |
| 32 | 420941928 | Taptite Screw M5 X 16 This part replaces 420941925. |
| 33 | 293800060 | Loctite 243, 10 ml |
| 34 | 250000202 | Self Tapping Screw #8 X 5/8 This part replaces 250000222. |
| 35 | 391301600 | Washer |
