Parts Catalog

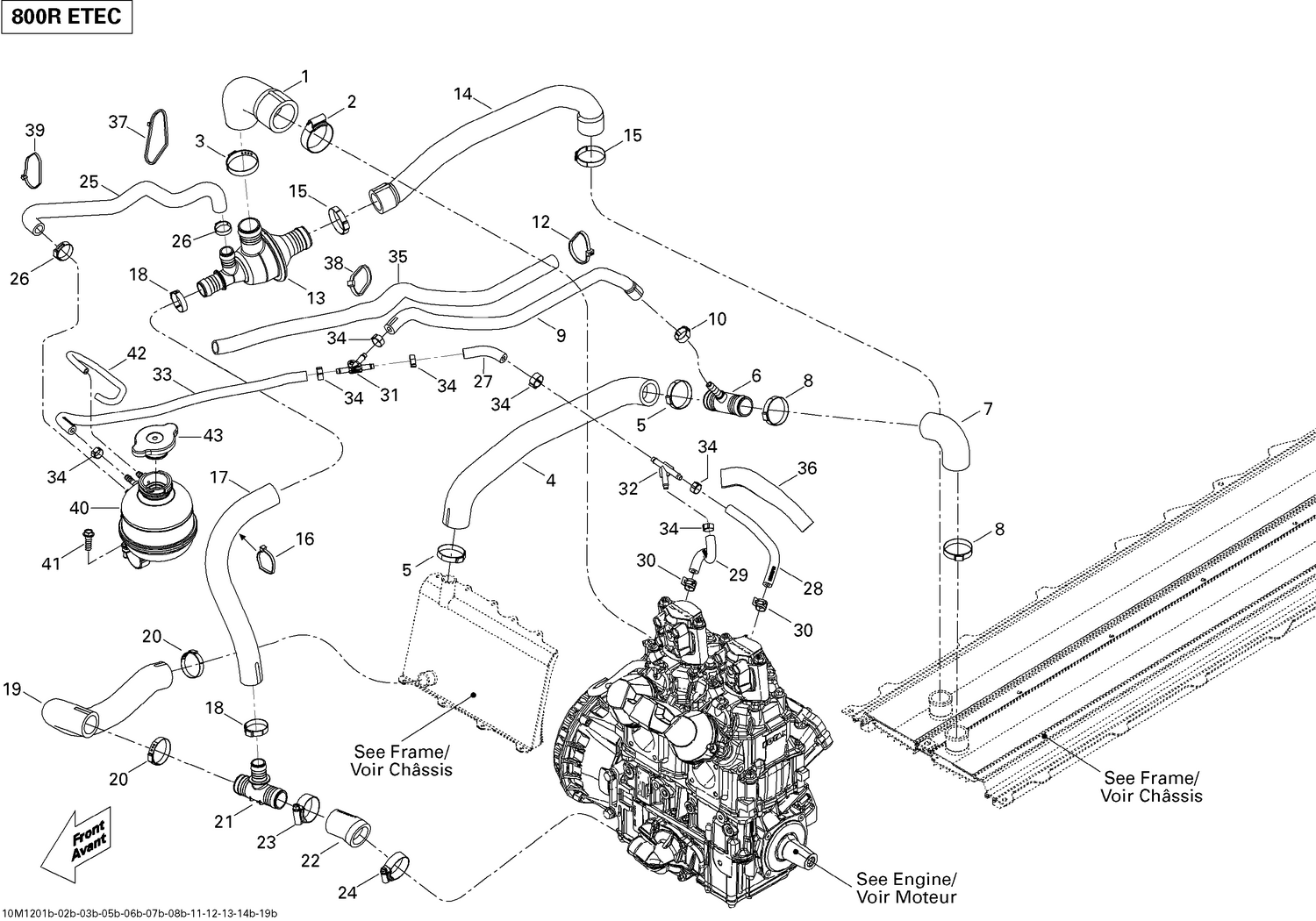

01- Cooling System 800R ETEC

Parts (41)

Ref	Part Number	Description
1	509000678	Engine Outlet Hose
2	509000443	Aba Gear Clamp, 26-38 MM
3	509000529	Oetiker Gear Clamp, 36.5-706R
4	509000670	Radiator Hose
5	509000529	Oetiker Gear Clamp, 36.5-706R
6	509000510	T-Fitting
7	509001066	Radiator Hose This part replaces 509000671.
8	509000529	Oetiker Gear Clamp, 36.5-706R
9	509000502	Bleeder Hose
10	293650047	Crimp Clamp, 15.3-706R
12	414115200	Tie-Rap 180 mm
13	509000499	Thermostat Housing
14	509000679	Thermostat Outlet Hose
15	509000529	Oetiker Gear Clamp, 36.5-706R
16	293750008	Tie Wrap 368 mm
17	509000672	Bypass Hose
18	293650099	Crimp Clamp
19	509000673	Radiator Hose
20	509000529	Oetiker Gear Clamp, 36.5-706R
21	509000372	T-Fitting
22	509000997	Engine Inlet Hose This part replaces 509000674.
23	509000443	Aba Gear Clamp, 26-38 MM
24	509000443	Aba Gear Clamp, 26-38 MM
25	509000759	FILLING HOSE - Call your local BRP dealership
26	509000442	Oeticker Gear Clamp, 25.6-706R
27	509000775	Hose
28	509000769	Bleeder Hose
29	509000768	Bleeder Hose
30	293650210	Spring Clamp
31	293710140	Y-Fitting
32	293710059	Y-Fitting
33	509000770	BLEEDER HOSE - Call your local BRP dealership
34	293650046	Oetiker Clamp
35	219704408	Tubing 16 Mm 1000Mm Long
36	513033231	Protector Tube, 16 mm
37	293750008	Tie Wrap 368 mm
38	414115200	Tie-Rap 180 mm
39	414115200	Tie-Rap 180 mm
40	509000368	Coolant Tank
41	241151640	Hex. Flange Screw K50 X 2.24 X 16
42	219704414	Was 415110000 Polyurethane Hose 5.2 mm
