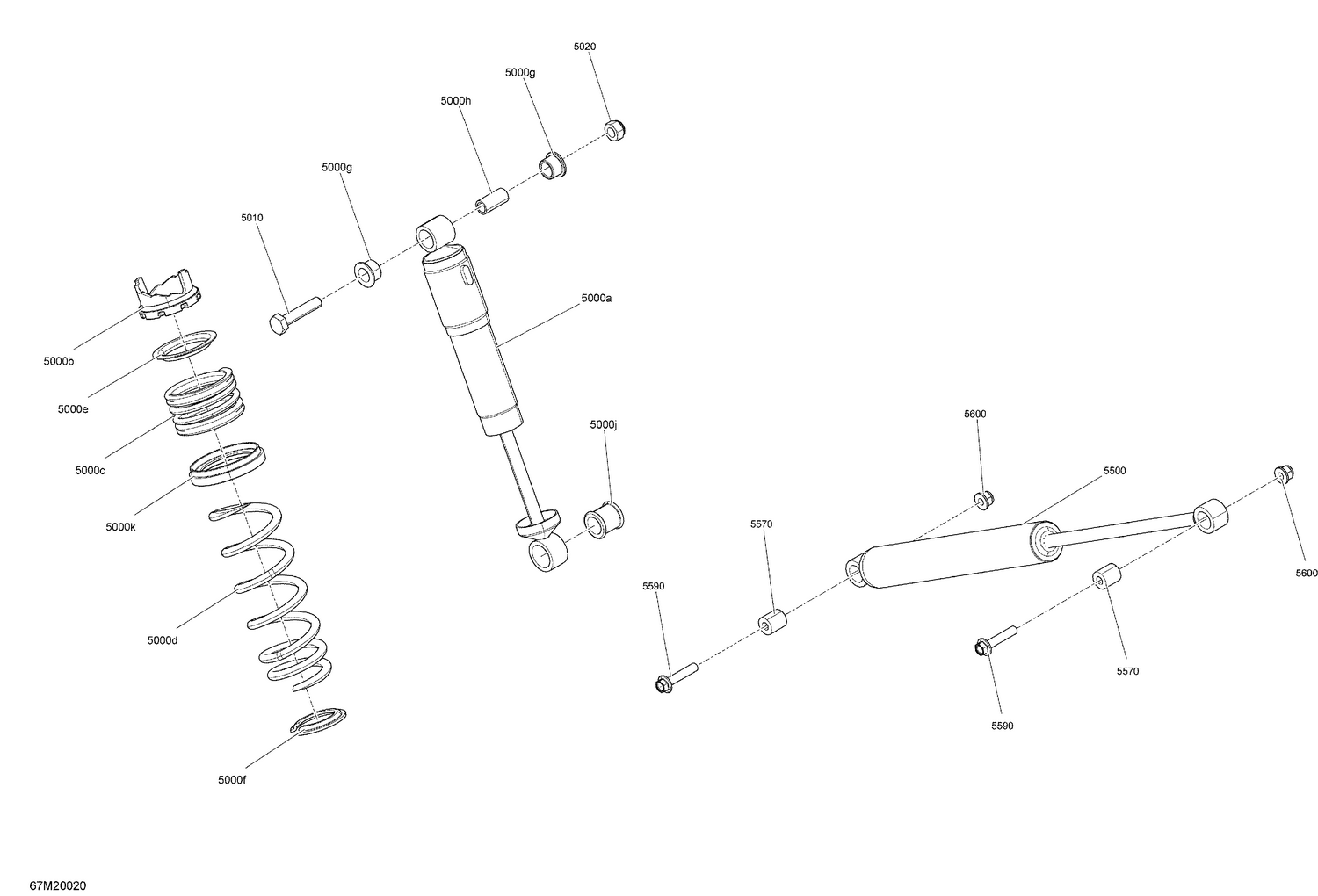

08- Suspension, Rear - Shocks
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 5000a | 503192991 | Center Shock |
| 5000b | 505073625 | Adjustment Cam |
| 5000c | 503191343 | Black, Spring |
| 5000d | 503192279 | Black, Spring |
| 5000e | 503191872 | Spring Guide |
| 5000f | 503194270 | Spring Stopper |
| 5000g | 503189117 | Urethane Bushing |
| 5000h | 503189282 | Bushing |
| 5000j | 503189271 | Bushing |
| 5000k | 503191281 | Spring Spacer |
| 5010 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 5020 | 233601466 | Elastic Locking Nut M10 |
| 5500 | 503193192 | Rear Shock HPG SEAL |
| 5570 | 414936000 | Bushing |
| 5590 | 207684044 | Hex. Flange Screw M8 X 40 |
