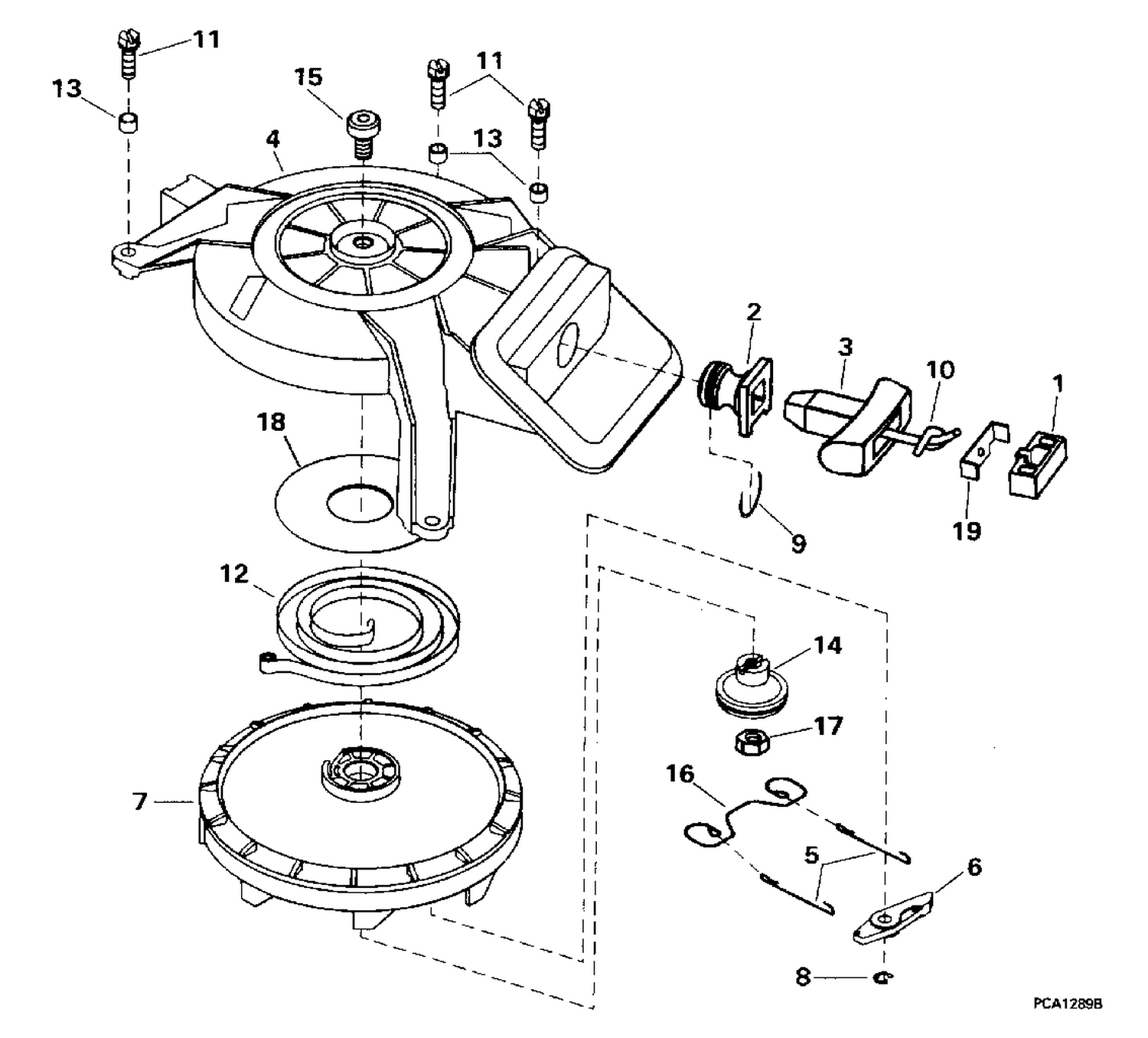

REWIND STARTER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5000510 | HANDLE ASSY., Starter This part replaces 0338507. |
| 2 | 0336148 | GUIDE, Rope |
| 3 | 5000510 | HANDLE ASSY., Starter This part replaces 0342465. |
| 4 | 0339037 | HOUSING, Starter |
| 6 | 0203698 | PAWL, Starter |
| 7 | 0435741 | PULLEY & PIN, Starter |
| 9 | 0336110 | RING, Retaining, guide |
| 10 | 0336118 | ROPE, Starter |
| 13 | 0336096 | SPACER, Flywheel cover |
| 14 | 0339038 | SPINDLE |
| 16 | 0331970 | FRICTION SPRING |
| 18 | 0339030 | SHIELD, Spring |
