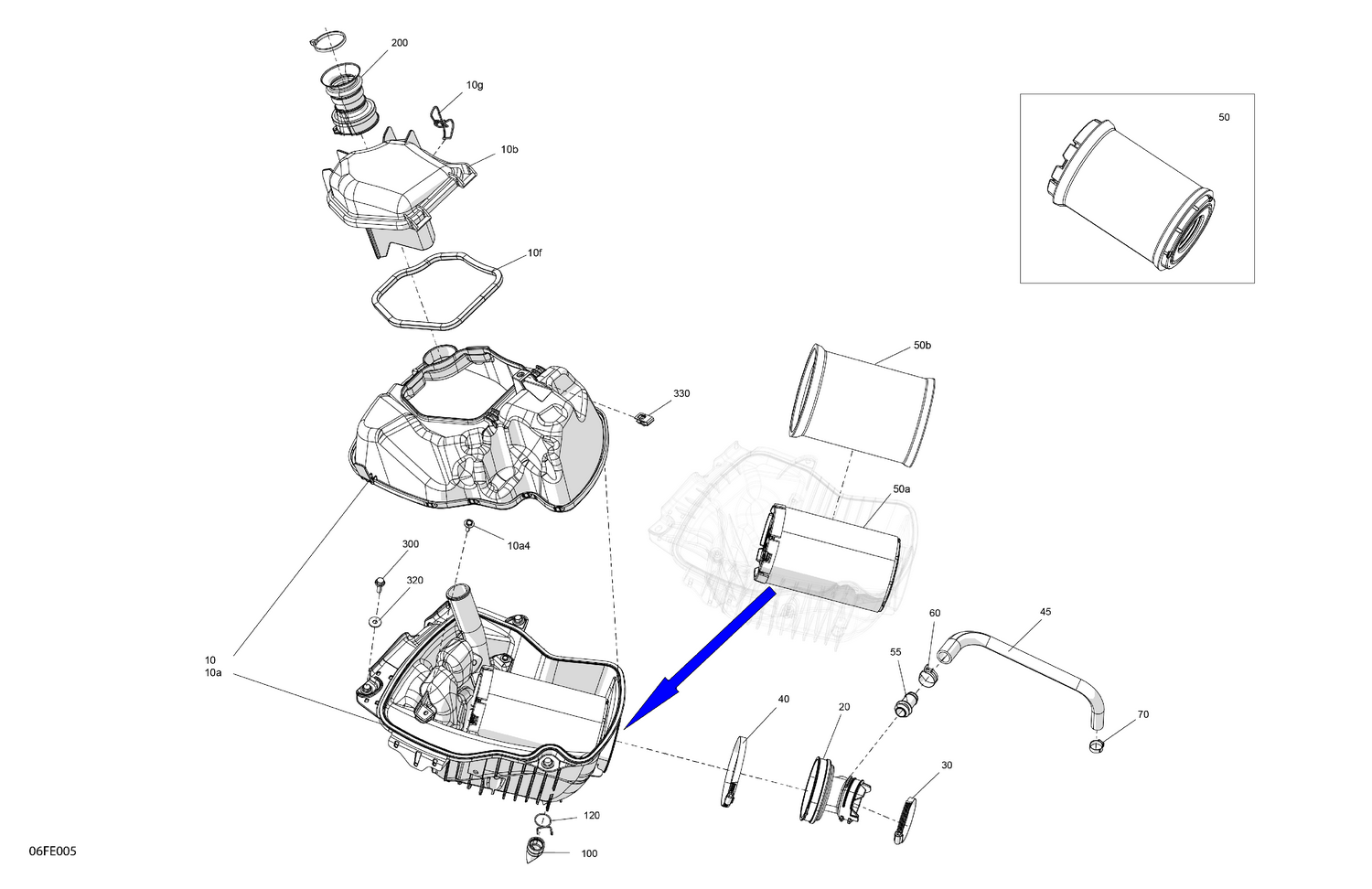

02- Engine - Air Intake
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10a4 | 250000959 | Screw PT Type K-50 X 16 |
| 10b | 715009565 | Intake Silencer Cover |
| 10f | 293250630 | Neoprene Seal |
| 10g | 293730117 | Latch |
| 20 | 707800981 | Intake Adapter |
| 30 | 293650118 | Norma Gear Clamp |
| 40 | 514052983 | Norma Gear Clamp |
| 45 | 707800944 | Crankcase Hose |
| 50a | 703501247 | Air Filter With Prefilter |
| 50b | 707800887 | Prefilter |
| 55 | 273000234 | Breather Valve |
| 60 | 293650213 | Norma Spring Clamp |
| 70 | 293650030 | Oetiker Clamp |
| 100 | 707801098 | Split Drain Plug |
| 120 | 707801043 | Spring Clamp |
| 200 | 707800910 | Intake Tip |
| 300 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 320 | 234062410 | Flat Washer 6 mm |
