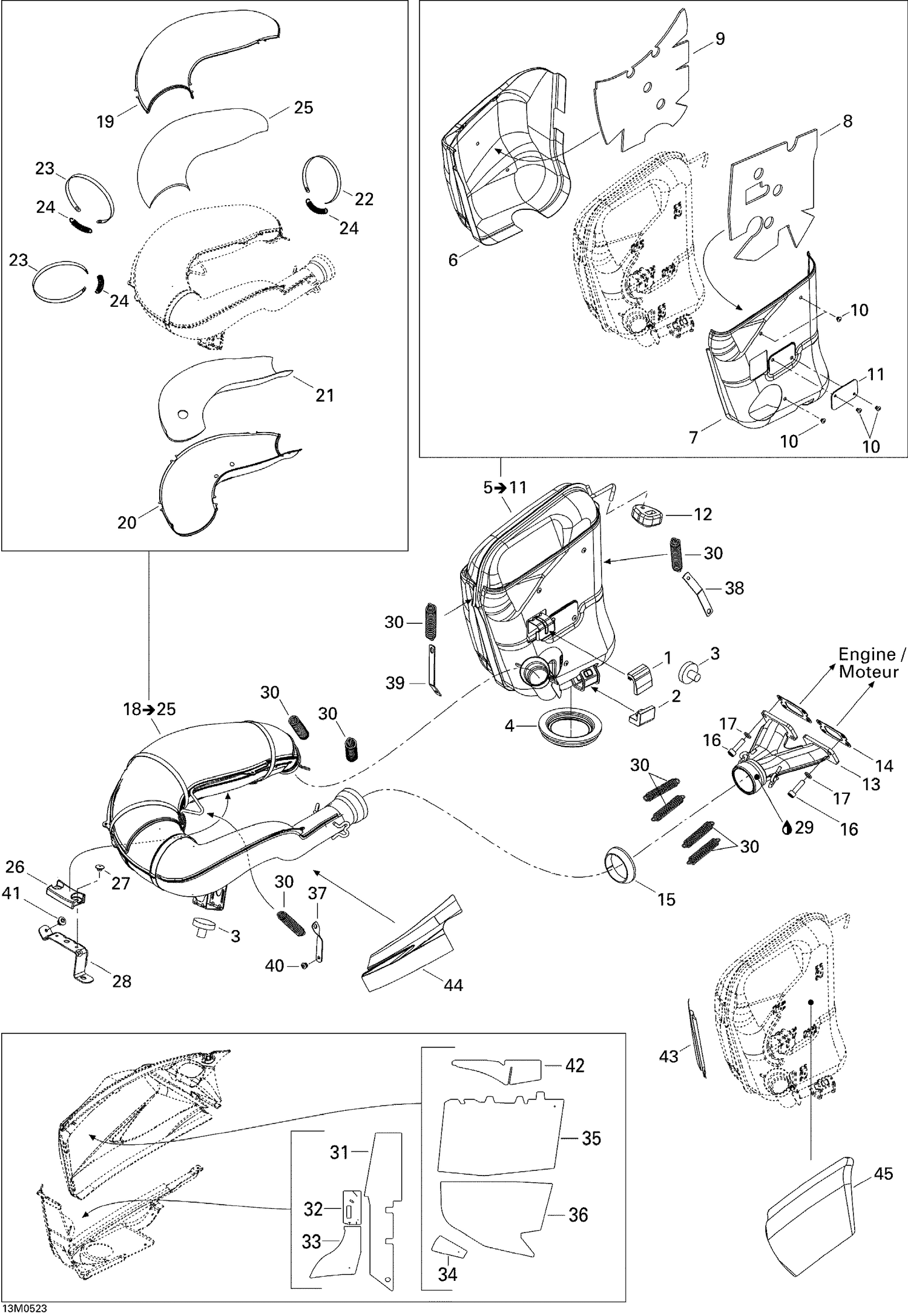

01- Exhaust System
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514053372 | UPPER STOPPER - Call your local BRP dealership |
| 2 | 514053373 | Lower Stopper |
| 3 | 514053654 | Rubber Bumper |
| 4 | 514053394 | Exhaust Grommet |
| 6 | 514053943 | Heat Deflector RH |
| 7 | 514053843 | HEAT DEFLECTOR LH - Call your local BRP dealership |
| 8 | 514053844 | INSULATING WOOL LH - Call your local BRP dealership |
| 9 | 514053947 | INSULATING WOOL RH - Call your local BRP dealership |
| 10 | 390910000 | Pop Rivet 3/16” |
| 11 | 514053429 | Reinforcement |
| 12 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 13 | 420673065 | Exhaust Manifold |
| 14 | 420831849 | Gasket 1.0 mm |
| 15 | 514053644 | Exhaust Gasket |
| 16 | 205083044 | Socket Head Screw M8 X 30 |
| 17 | 514053837 | Washer |
| 19 | 514053852 | REAR UPPER HALF-ENVELOPPE - Call your local BRP dealership |
| 20 | 514053853 | REAR LOWER HALF-ENVELOPPE - Call your local BRP dealership |
| 21 | 514053854 | LOWER INSULATING WOOL - Call your local BRP dealership |
| 22 | 514053501 | Retaining Strap |
| 23 | 514053512 | RETAINING STRAP - Call your local BRP dealership |
| 24 | 514053643 | Spring |
| 25 | 514053987 | UPPER INSULATING WOOL - Call your local BRP dealership |
| 26 | 514053352 | BUMPER - Call your local BRP dealership |
| 27 | 293150103 | Pop Rivet 3/16" |
| 28 | 514054039 | BUMPER SUPPORT - Call your local BRP dealership |
| 29 | 293800090 | Sealant, Loctite, 80 ml |
| 30 | 415107100 | Spring |
| 31 | 514053560 | REFLECTIVE SHEET - Call your local BRP dealership |
| 32 | 514053912 | Reflective Sheet |
| 33 | 514053913 | Reflective Sheet |
| 34 | 514053914 | Reflective Sheet |
| 35 | 514053954 | REFLECTIVE SHEET - Call your local BRP dealership |
| 36 | 514053562 | REFLECTIVE SHEET - Call your local BRP dealership |
| 37 | 514053955 | SPRING BRACKET - Call your local BRP dealership |
| 38 | 514053725 | SPRING BRACKET - Call your local BRP dealership |
| 39 | 514053393 | Spring Bracket |
| 40 | 390909200 | Avex Rivet |
| 41 | 390402200 | Pop Rivet 3/16" |
| 42 | 514053673 | REFLECTIVE SHEET - Call your local BRP dealership |
| 43 | 514054012 | REFLECTIVE SHEET - Call your local BRP dealership |
| 44 | 514054013 | Reflective Sheet |
