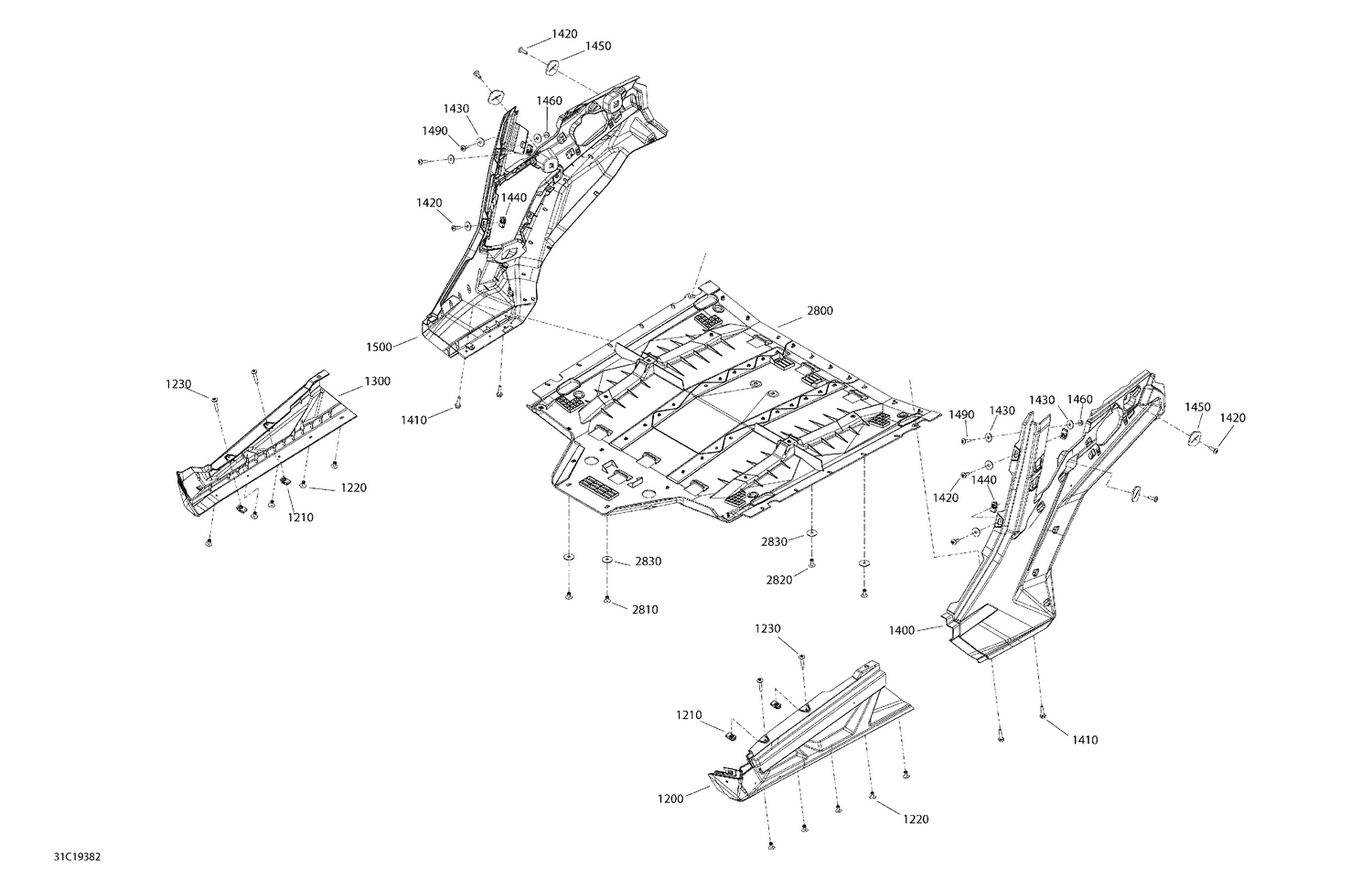

| Ref | Part Number | Description |
|---|
| 1200 |
705011331 |
LH Rocker Panel |
| 1210 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1220 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 1230 |
250000867 |
Torx Truss Hex. Screw M6X35, Nylon Patch |
| 1300 |
705016939 |
RH Front Rocker Panel This part replaces 705011332. |
| 1400 |
705011335 |
LH Rear Panel |
| 1410 |
207662054 |
Hex. Flange Screw M6 X 20 |
| 1420 |
250000722 |
Torx Screw M6 X 20 |
| 1430 |
250200162 |
Flat Washer M6.6 X 22 |
| 1440 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000957. |
| 1450 |
705003841 |
Support Plate |
| 1460 |
233161464 |
Hex. Elastic Flange Nut M6 |
| 1490 |
250000722 |
Torx Screw M6 X 20 |
| 1500 |
705011336 |
RH Rear Panel |
| 2800 |
703501097 |
Kit Plate_Skid F This part replaces 705011427. |
| 2810 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 2820 |
293150087 |
Pop Rivet 3/16” This part replaces 293150087. |
| 2830 |
224060251 |
Washer |
