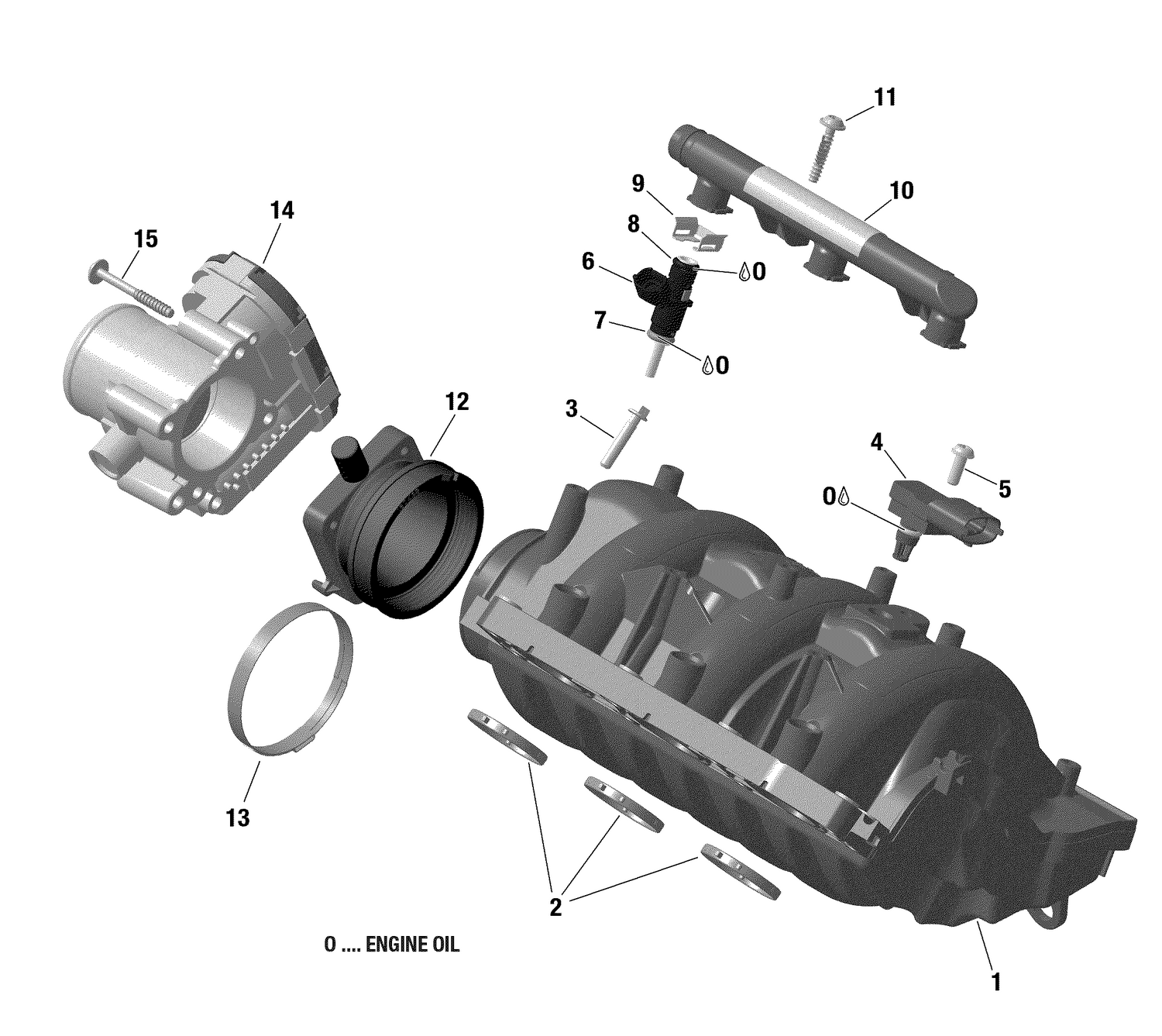

02- Air Intake Manifold And Throttle Body 900 HO
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420450510 | Gasket |
| 3 | 420440647 | Torx Flange Screw M6 X 30 |
| 4 | 515178563 | Pressure Sensor And Air Temperature This part replaces 715900392. |
| 5 | 420641588 | Torx Flange Screw M6 X 16 |
| 7 | 420431890 | O-Ring |
| 8 | 420631220 | O-Ring |
| 9 | 420853030 | Injector Clip |
| 10 | 420874966 | Fuel Rail |
| 11 | 420441575 | Torx Screw 6X30 This part replaces 420441573. |
| 12 | 420867091 | Connecting Socket |
| 13 | 420251483 | Hose Clamp |
| 14 | 420893149 | Throttle Body This part replaces 420893147. |
