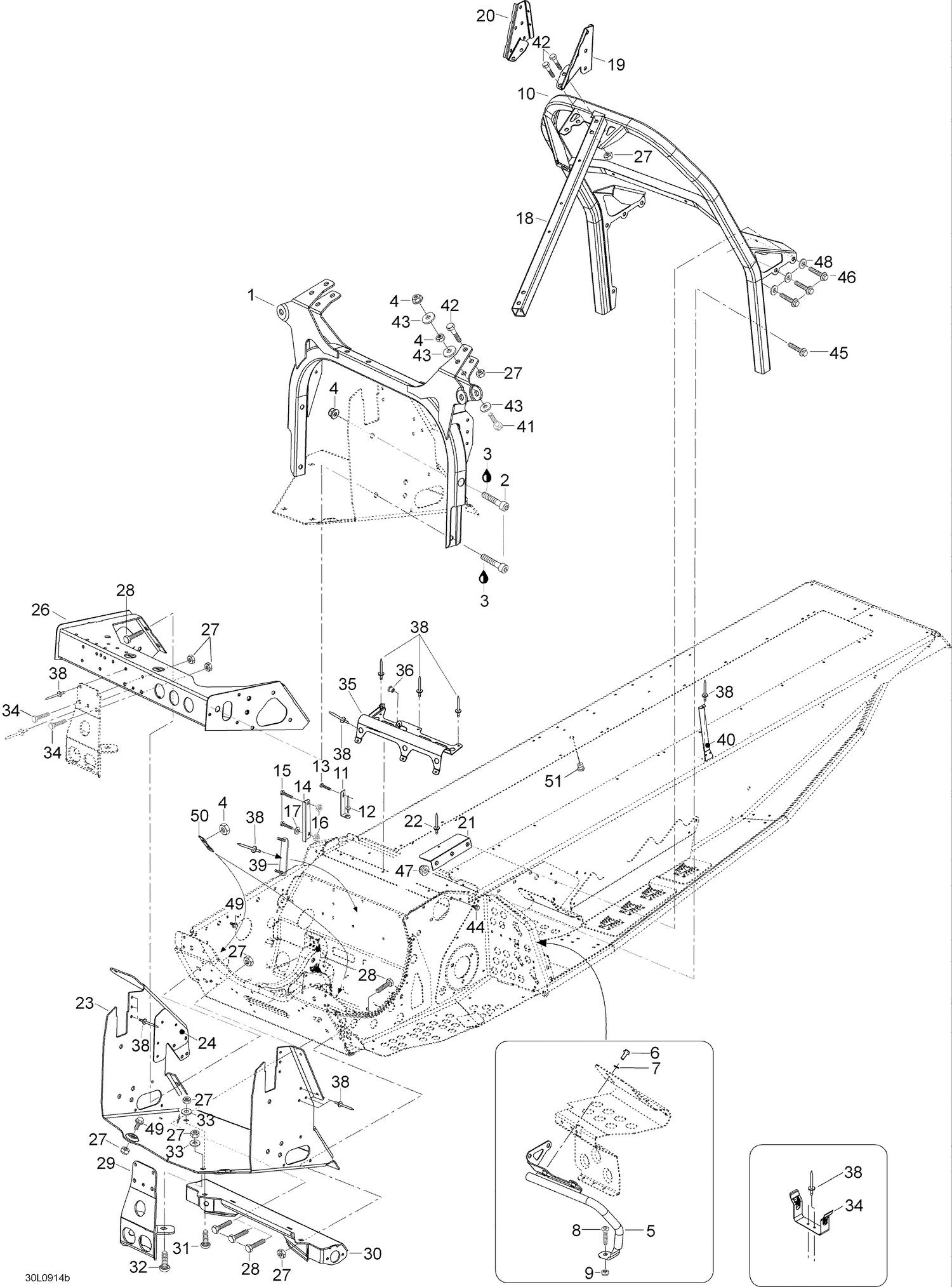

09- Frame And Components
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605253944 | Support |
| 2 | 40810 | Socket head screw M8 x 20 |
| 3 | 293800060 | Liima Loctite 243 50ml |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 5 | 605354700 | L.H. Toe hold support |
| 5 | 605354701 | R.H. Toe hold support |
| 6 | 40381 | Socket head screw M6 x 20 |
| 7 | 20117 | Washer |
| 8 | Not | Available As Spare Part - Socket head screw M8 x 16 |
| 9 | 232581414 | Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 10 | 605256045 | Handle support |
| 11 | 605354892 | Bracket, rear, oil reservoir |
| 12 | 605636005 | Rivet |
| 13 | 293700048 | Screw Plastofast MP 6 X 16 PZ This part replaces 40905. |
| 14 | 605354885 | Bracket, oil reservoir |
| 15 | 40030 | Screw M6 x 20 |
| 16 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 17 | 234062410 | Flat Washer 6 mm This part replaces 20009. |
| 18 | 605354045 | Side bar |
| 19 | 605353934 | L.H. Bracket |
| 20 | 605353933 | R.H. Bracket |
| 21 | 605353555 | Support L.H |
| 21 | 605353556 | Support R.H |
| 22 | 36108 | Rivet |
| 23 | 605253893 | Front cross member |
| 24 | 605454020 | Support plate |
| 25 | 605636005 | Rivet |
| 26 | 605253894 | Front support |
| 27 | 232581414 | Hex. Elastic Stop Nut M8 |
| 28 | 40037 | Screw M8 x 25 |
| 29 | 605253892 | Support plate |
| 30 | 605254414 | Subframe |
| 31 | 40058 | Locking screw M8 x 20 |
| 32 | 40855 | Locking screw M8 x 25 |
| 33 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 34 | 40810 | Locking screw M8 x 20 |
| 35 | 518323532 | INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 36 | 36086 | Rivet nut M6 |
| 37 | 518322726 | GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 38 | 36108 | Rivet |
| 39 | 518324312 | TRUNK BRACKET, BLACK - Call your local BRP dealership |
| 40 | 605351612 | L.H. Steel strip |
| 40 | 605351613 | R.H. Steel strip |
| 41 | 40123 | Screw M8 x 70 |
| 42 | 207084544 | Hex. Screw M8 X 45 This part replaces 40008. |
| 43 | 234082410 | Flat Washer 8 mm This part replaces 20010. |
| 44 | 40327 | Screw M6 x 12 |
| 45 | 40336 | HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 46 | 605640008 | Hex. screw M8 x 16 |
| 47 | 33000 | Nut M8, Low |
| 48 | 234081410 | Flat Washer 8 mm This part replaces 20004. |
| 49 | 40386 | Screw M8 x 30 |
| 50 | 605452373 | Washer |
